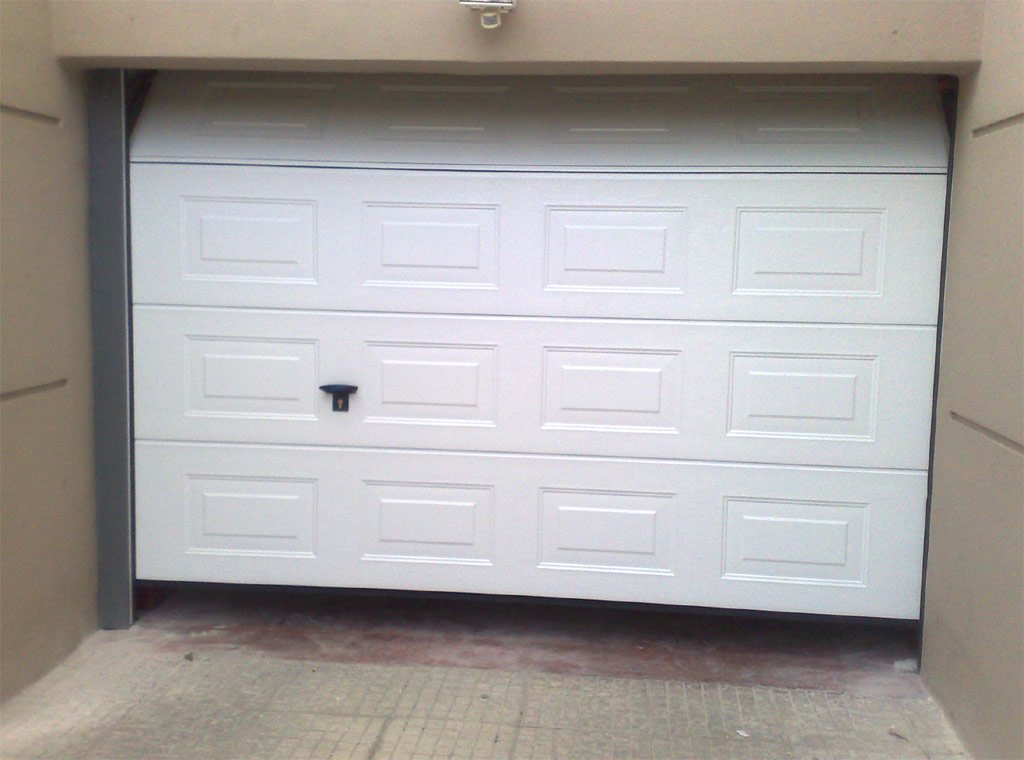

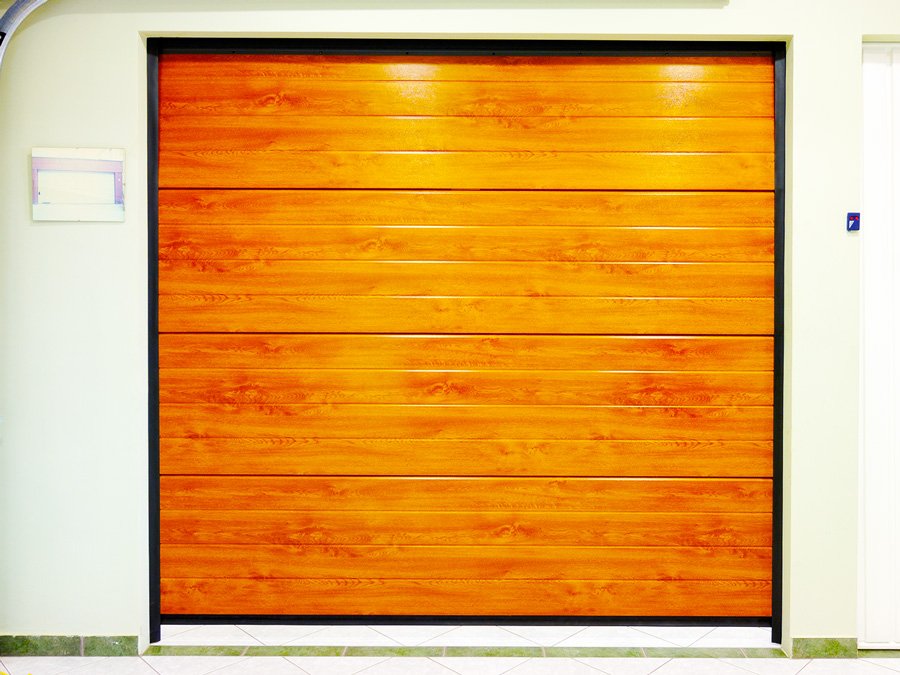

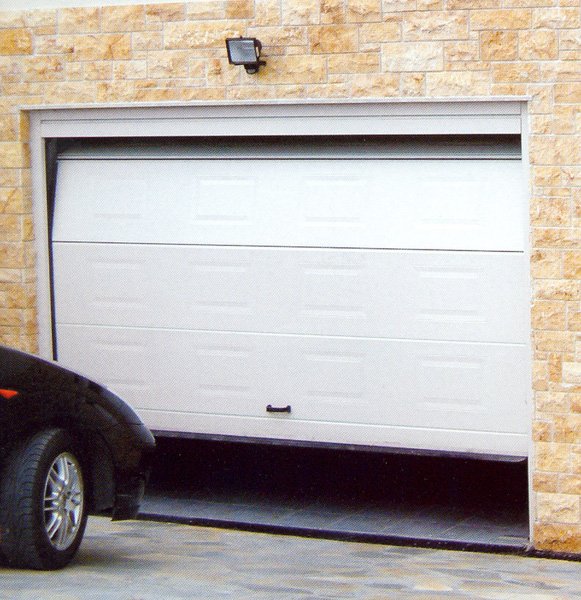

CEILING-SPLIT

Double-wall panel made of hot-dip galvanized embossed sheet metal with a thickness of 0.45mm, featuring rigid polyurethane insulation of 35/40 kg/m³. Total panel thickness is 40mm.
2. Embossed (stucco) surface which seamlessly combines modern and classic styles, providing the door with maximum durability and protection from potential damage.
3. Heavy-duty rolling guides made of galvanized steel sheet with a thickness of 2mm.
4. Adjustable torsion springs with a galvanized reinforced shaft for better door balance.
5. Heavy-duty metal hinges made of galvanized steel with a thickness of 2.5mm.
6. Special EPDM rubber seals that adapt to all types of doors, improving sealing and minimizing ventilation losses.

• Side seals running the entire height of the door.
• Intermediate seals between the joints.
• Double hollow profile with a special chamber in the bottom panel of the door.
• Top seal on the last panel, which contacts the doorframe.

Safety & Protection:

• Spring Safety Mechanism: Installed on the shaft of the multi-sectional door to prevent unwanted downward movement of the door in case of spring failure.
• Pressure-sensitive rubber or motion detection photoelectric sensors: Their installation is necessary when the door is remote-controlled, in accordance with the safety standard EN 13241-1.
• Finger protection: Specially designed and engineered panels that, during closing, prevent fingers from being trapped between the panels.
• Operating Methods for Horizontal Lifting:
  • Dual guide (20cm)
  • Dual guide (16cm)
  • Single guide (42cm)

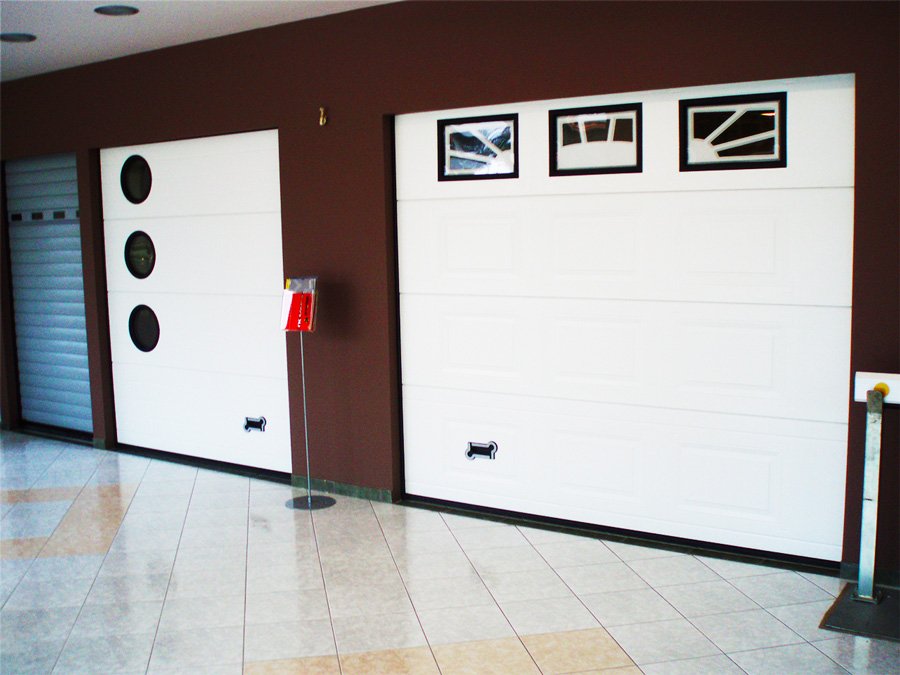

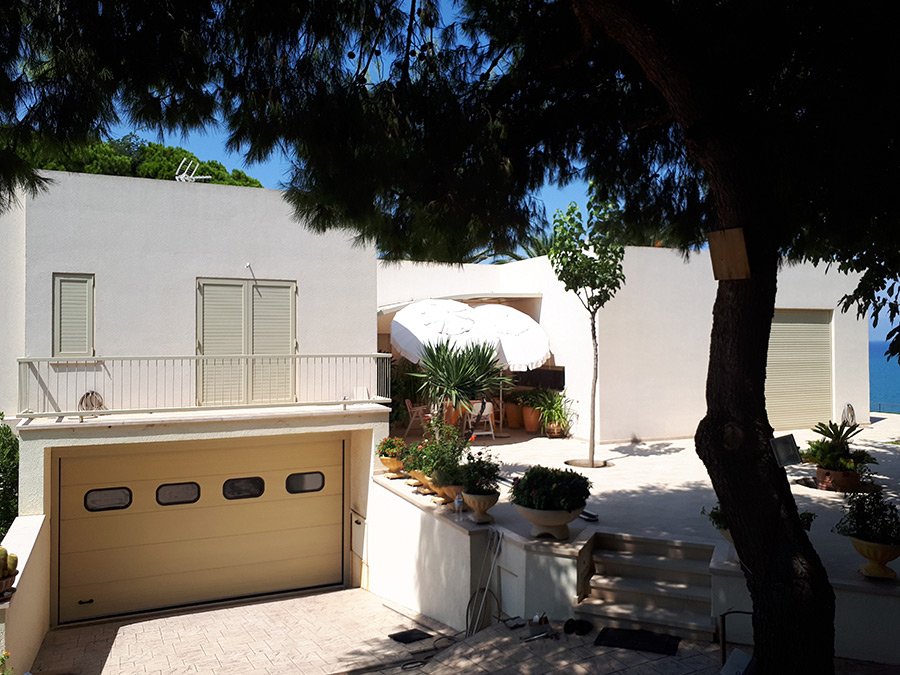

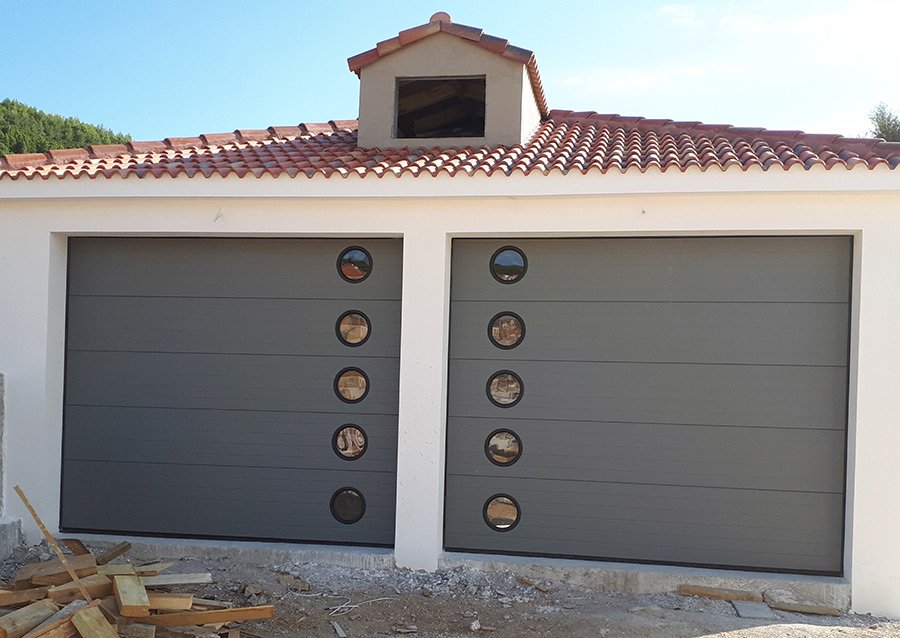

Windows (Skylights) made of polycarbonate material with double glazing and a perimeter sealing gasket. By using different types of windows, we can create various door appearances.

Available in various standard sizes, these windows provide more natural light to the interior of the garage.

Integrated Options:

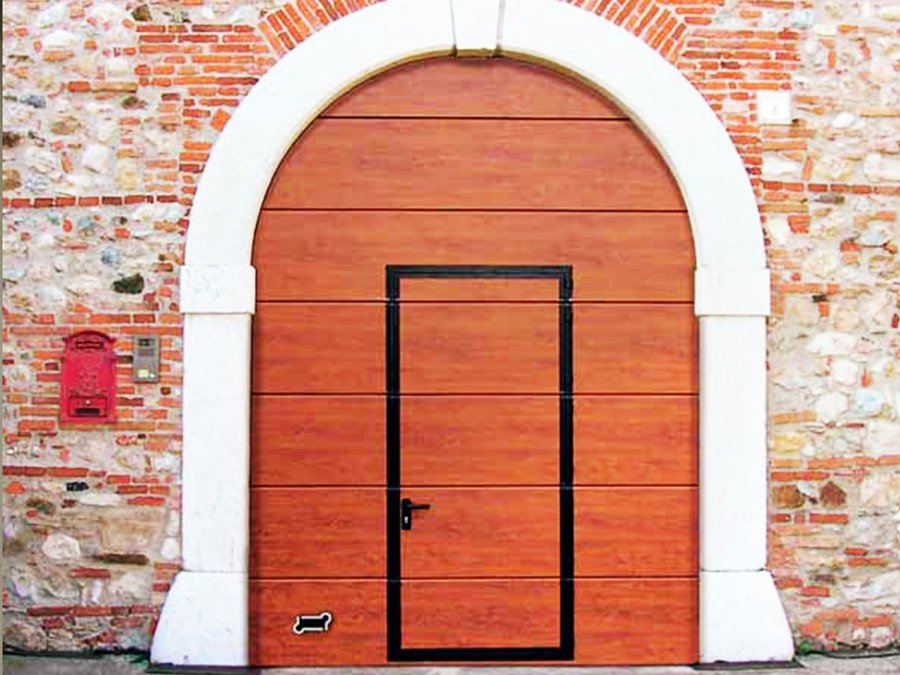

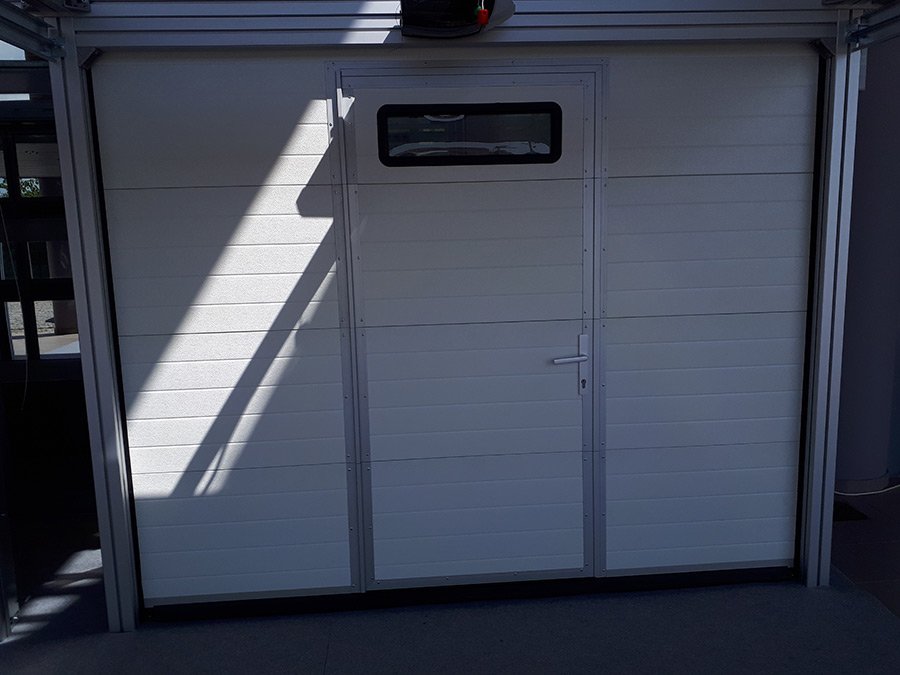

• In cases where the ceiling door needs to remain closed (especially during the winter months), the integrated human door can facilitate pedestrian access with or without glass, featuring an aluminum perimeter frame. It is equipped with a handle, a security lock, and a reset mechanism to ensure that it remains closed during operation, reducing unnecessary use of the main door, particularly in industrial settings.

• Manual operation option: The door is equipped with a security lock.

• Electric operation option: With single-phase ceiling motors, which come with guides—primarily with chains—with the ability to select their length based on the requirements of each specific case.

• Certain models are also available with a belt drive.

The doors include:

• Built-in light
• Unlocking mechanism
• Terminal adjustment
• Power adjustment
• Ability to stop operation at any point
• Quiet operation
• Sleek design

We can adapt these systems to include:

• Remote control
• Button
• Switch
• Key
• Keypad
• Photocell
• Flashing light
• Antenna
• Pressure-sensitive rubber, etc.
