HST HEAVY DUTY
DIGALAKIS A.
HST HEAVY DUTY

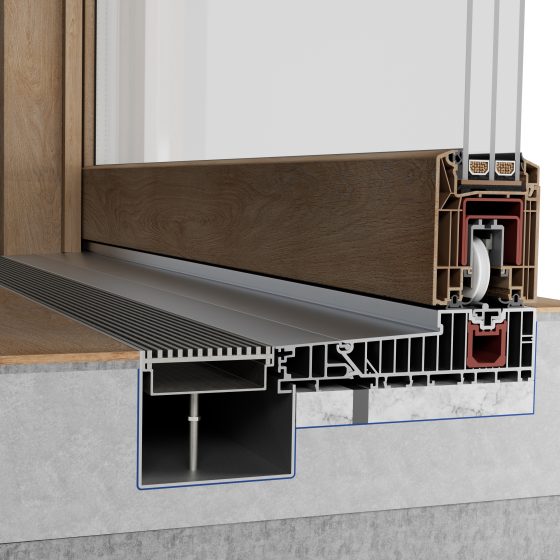

The NEW, sliding frame, by Thermoplastiki.
It offers high aesthetics, ease of movement and elegance in every space.
Available in 8 New Ulti Matt Colors, gloss-free with aluminum-like appearance and texture.
- Triple glazing option up to 51 mm
- 5 chambers on the sash
- Sound insulation up to 43dB and security up to RC 2
- 50mm threshold on the basic edition
- Low threshold option 25mm
- Construction options: Double and Quadruple
- Stainless steel water drainage
- Construction option 2 to 4 sashes
Technical Specifications
Casement Depth: 188mm
Casement Width: 50 mm
Maximum glazing: 51 mm
Sash Depth: 80 mm
Sash Width: 101 mm
Total Visible Width: 154mm
Color Range
Characteristics
Specifications
Triple glazing option
Sash and casement reinforcement with thermo-galvanized steel 3 mm thick
Mechanism up to 400 kg maximum sash weight
Surface Protection Mechanism: Ferguard (1000 hours), protection against corrosion
100% Recyclable
Sealing with 2 rubber elements
Energy Efficiency: Uf 1,4 W/ m2K basic edition
Sound insulation up to Rw=43 dB
Anti burglar protection up to RC2 according to DIN EN 1627
Air permeability according to DIN EN 12207 – Category: up to 4
Water permeability according to DIN EN 12208 – Category:up to 9A
Wind resistance according to DIN EN 12210 – Category:B3
Resistance to transverse stresses according to DIN EN 13115 – Category: 1
Resistance to use according to DIN EN 12400 – Category: 2
