DIGALAKIS A.
SLINOVA X

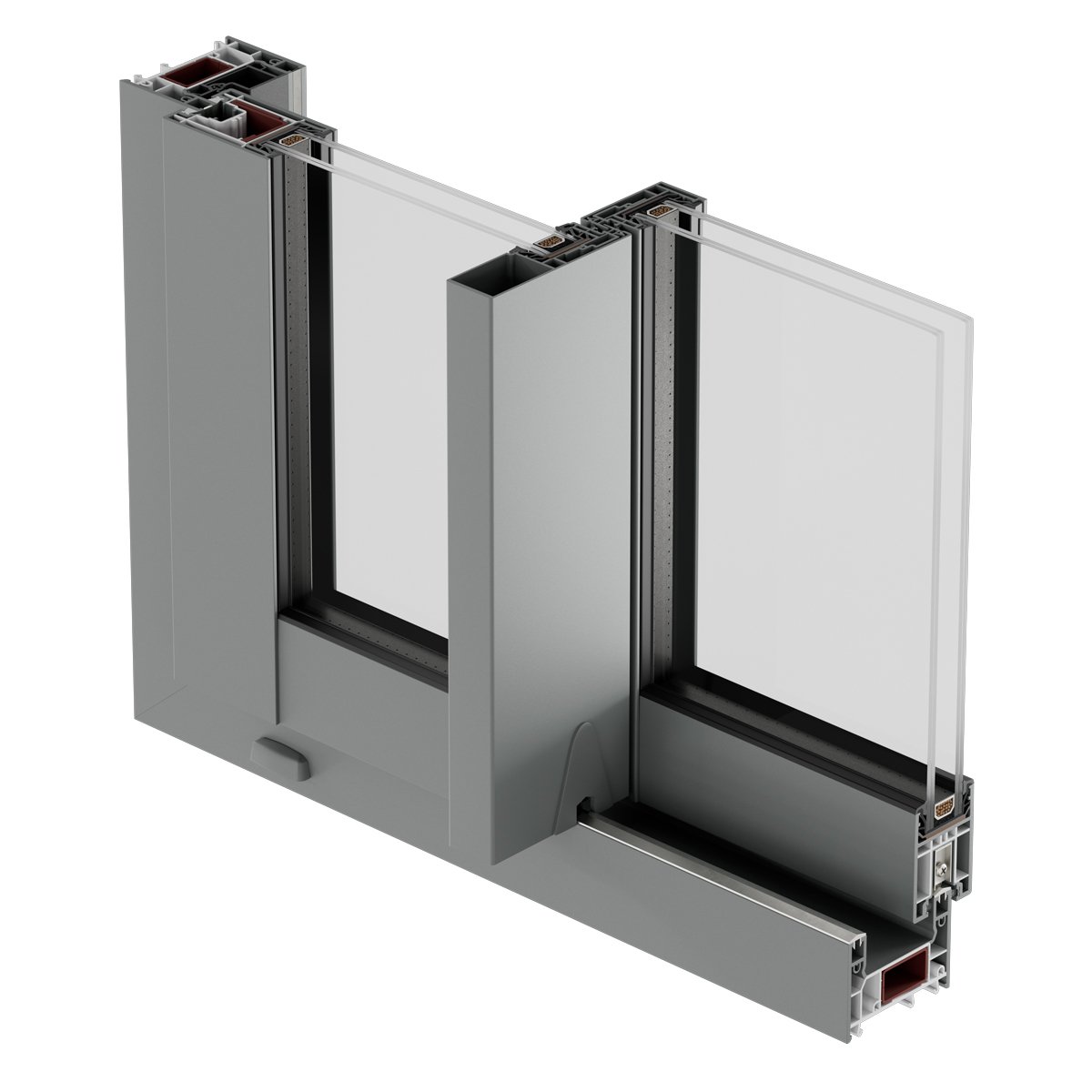

The NEW, REVOLUTIONARY Frame, by Thermoplastiki only.
With the innovative fiberglass reinforced technology, it achieves a small middle section at only 32mm!
Available in 8 New Ulti Matt Colors, gloss-free with aluminum-like appearance and texture.
The unique design integrates technologies that make a difference,
offering the freedom to create unique buildings, while making it ideal for large openings and particularly robust.
The less visible profile and the extremely small middle section
offer panoramic views, light, comfort and functionality.
Double glazing 28mm or 32mm
4 chambers on the casement
Sound insulation up to 33dB and security up to RC 2
Covers large dimensions with maximum frame dimensions 2,60m x 4m
The inner surface of the frame is lined with foil
Competes all the sliding frames in the aluminum or UPVC market
Thermal aluminum threshold option
Construction ability 2 up to 6 sashes
Maximum sash weight 200kg
Ability for better air permeability performance by adding 2 different profiles (1 in height and 1 on the side)
Technical Specifications
Frame Depth: 80 mm
Frame Width: 58 mm
Maximum Glazing: 32 mm
Sash Depth: 46 mm
Total Visible Width: 113mm
Double glazing option
Mechanism 200 Kg maximum sash weight
Perimeter sealing with brush, additional sealing kits for greater airtightness
Surface Protection Mechanism: Ferguard (1000 hours), protection against corrosion
100% Recyclable
Energy Efficiency: Uf 2.4 W/m²K W/ m2K basic edition
Sound insulation up to Rw=33 dB
Anti burglar protection RC2 according to DIN EN 1627
Air permeability according to DIN EN 12207 – Category: up to 3
Water permeability according to DIN EN 12208 – Category: up to 7B/6A
Wind resistance according to DIN EN 12210 – Category: up to A2
Resistance to transverse stresses according to DIN EN 13115 – Category: 1
Resistance to use according to DIN EN 12400 – Category: 2
SLINOVA
SLINOVA
The NEW, sliding frame, by Thermoplastiki.
It offers high aesthetics, ease of movement and elegance in every space.
Available in 8 New Ulti Matt Colors, gloss-free with aluminum-like appearance and texture.
- Double glazing 24mm or 32mm
- 4 chambers on the casement
- Double or Triple guide rail option
- Sound insulation up to 33dB and security up to RC 2
- The inner surface of the frame is lined with foil
- Competes all the sliding frames in the aluminum or UPVC market
- Thermal aluminum threshold option
- Construction ability 2 up to 6 sashes
- Maximum sash weight up to 140kg
- Ability for better air permeability performance by adding 2 different profiles (1 in height and 1 on the side)
