ELVIAL SL46 SI2 FLAT EDITION
DIGALAKIS A.

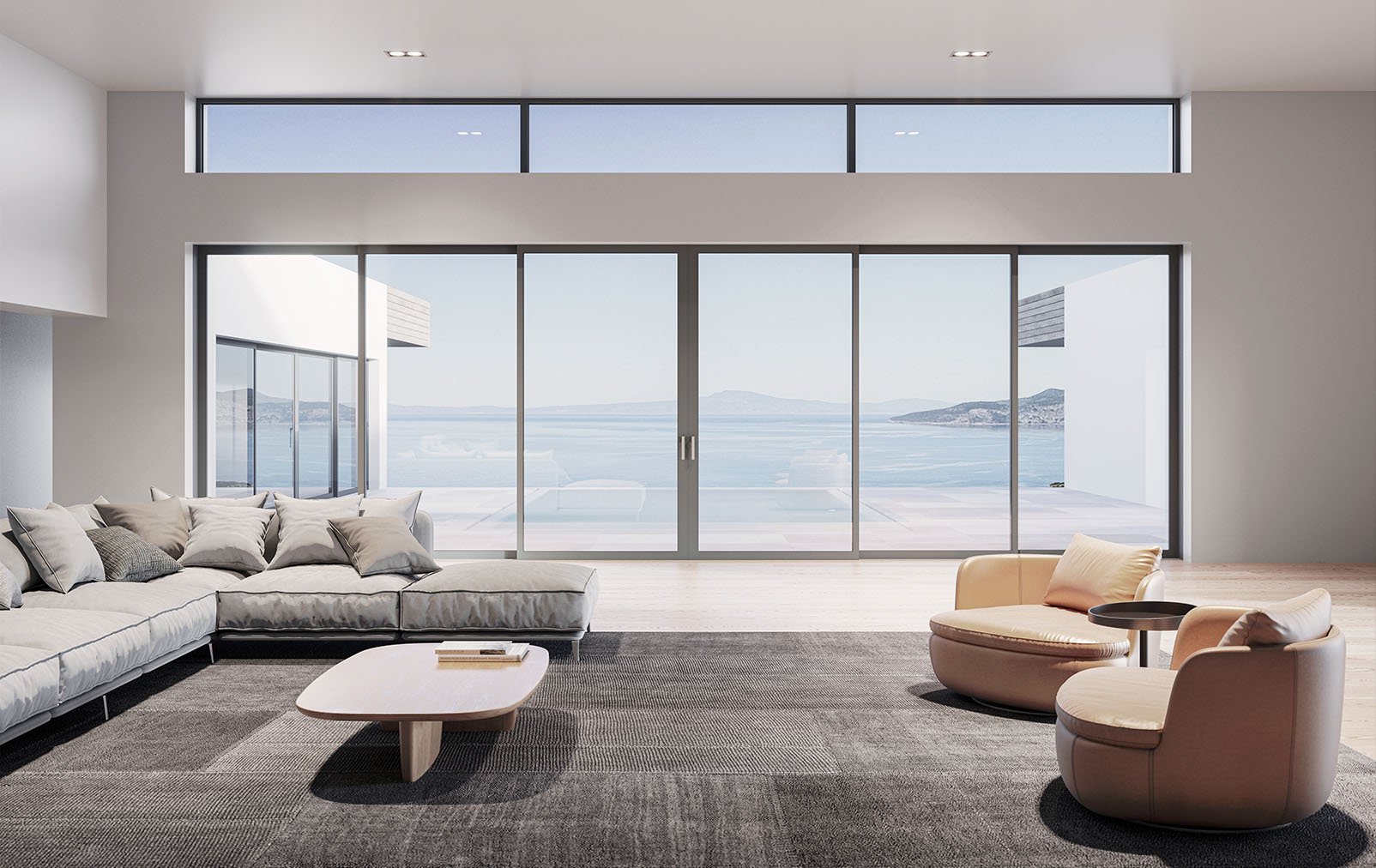

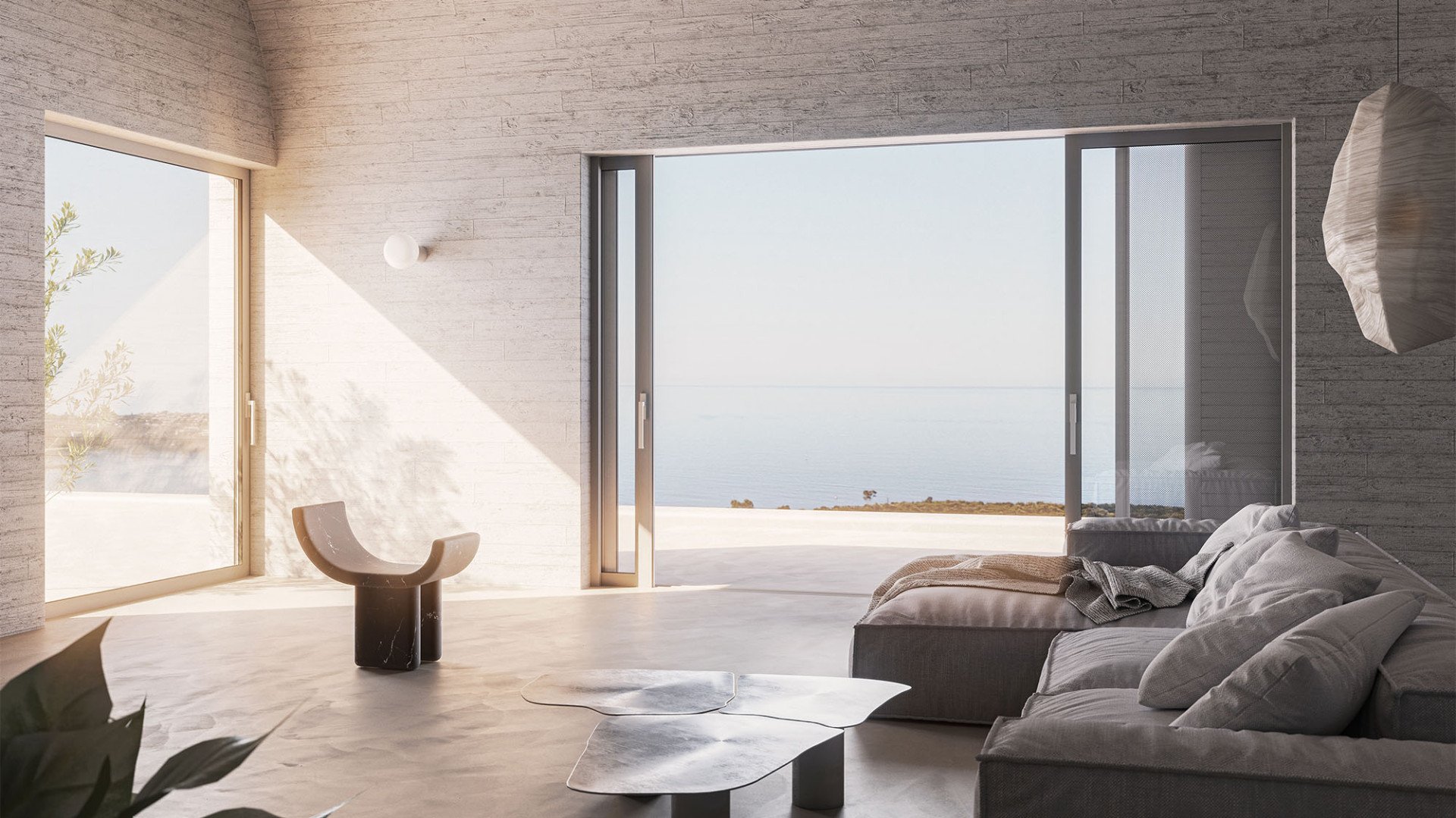

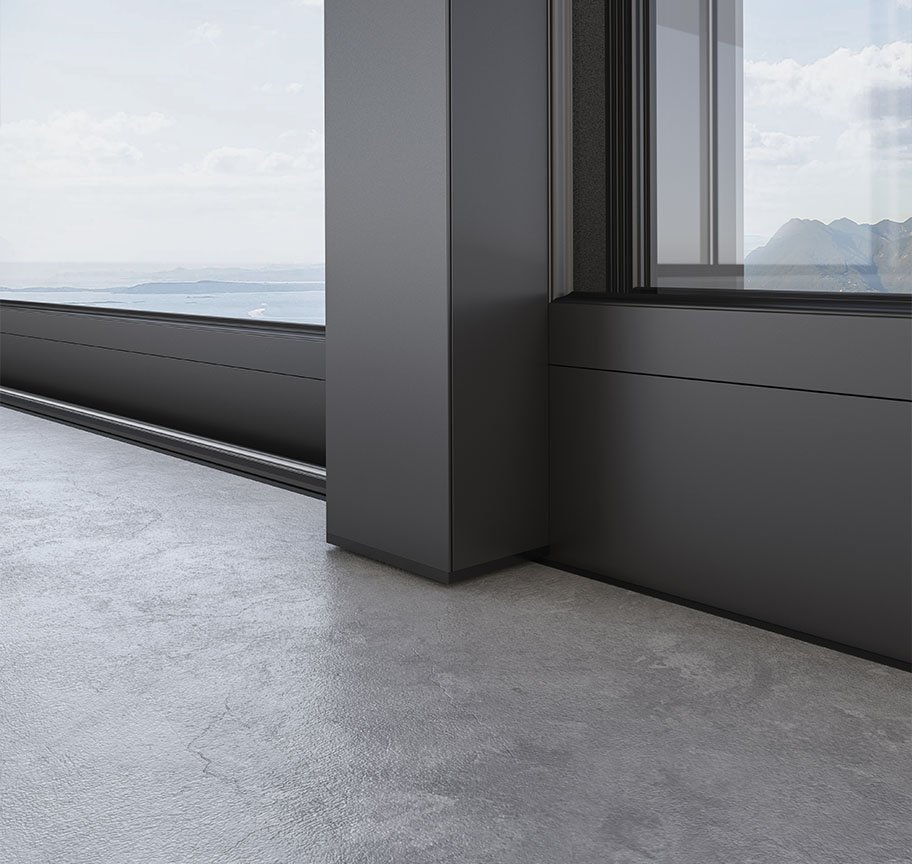

ELVIAL SL46 SI2 FLAT EDITION
Τhis edition of the SL46 is another great option to consider when choosing a solid lift and slide or sliding aluminium profile. It provides reliable thermal insulation and remarkable rolling quality. The undisputable functional features are matched by a design that withstands the architectural trends and allows for the creation of spacious openings and the framing of unobstructed view.
THE DESIGN
The SL46 SI² FLAT EDITION comes in lift and slide or sliding editions. This aluminium system will prove to be a smart choice for renovation work on your project and a valuable asset for a new construction.
ATTENTION TO DETAILS

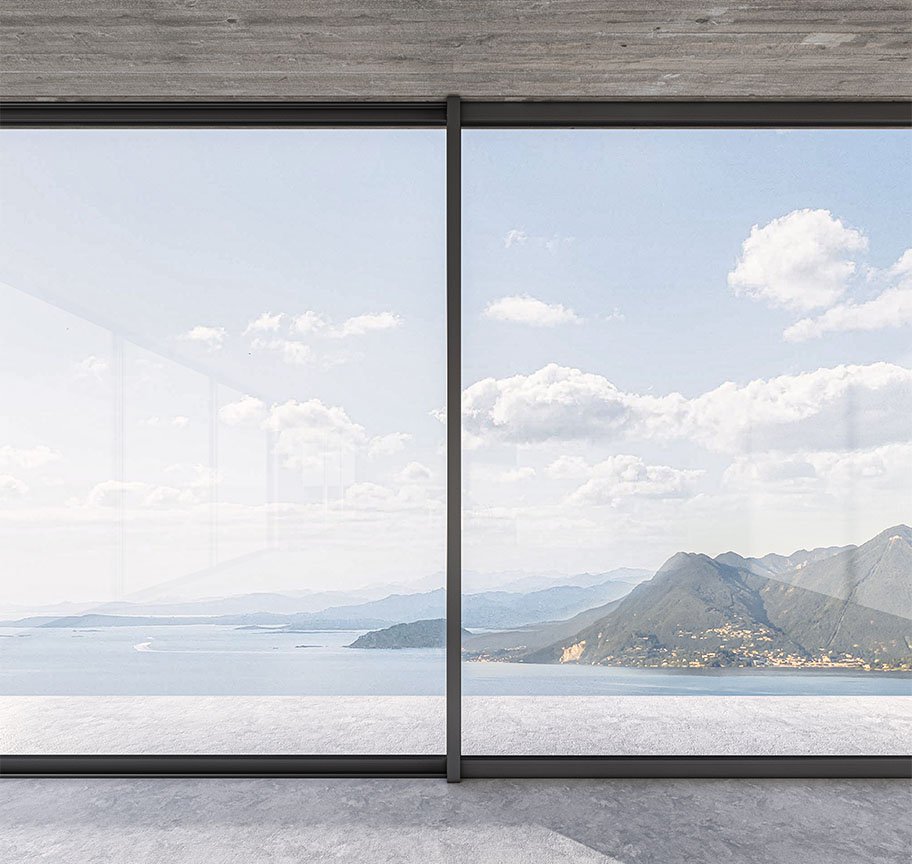

POWERFUL DESIGN
FIRM AND MINIMAL

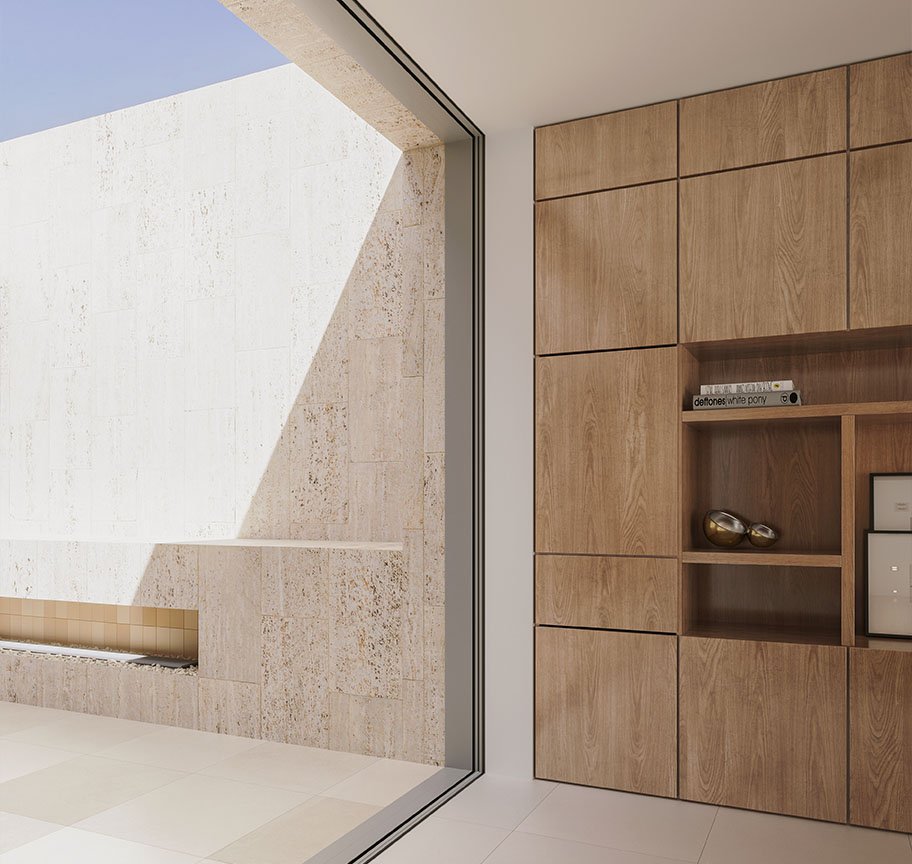

LINEAR FRAME

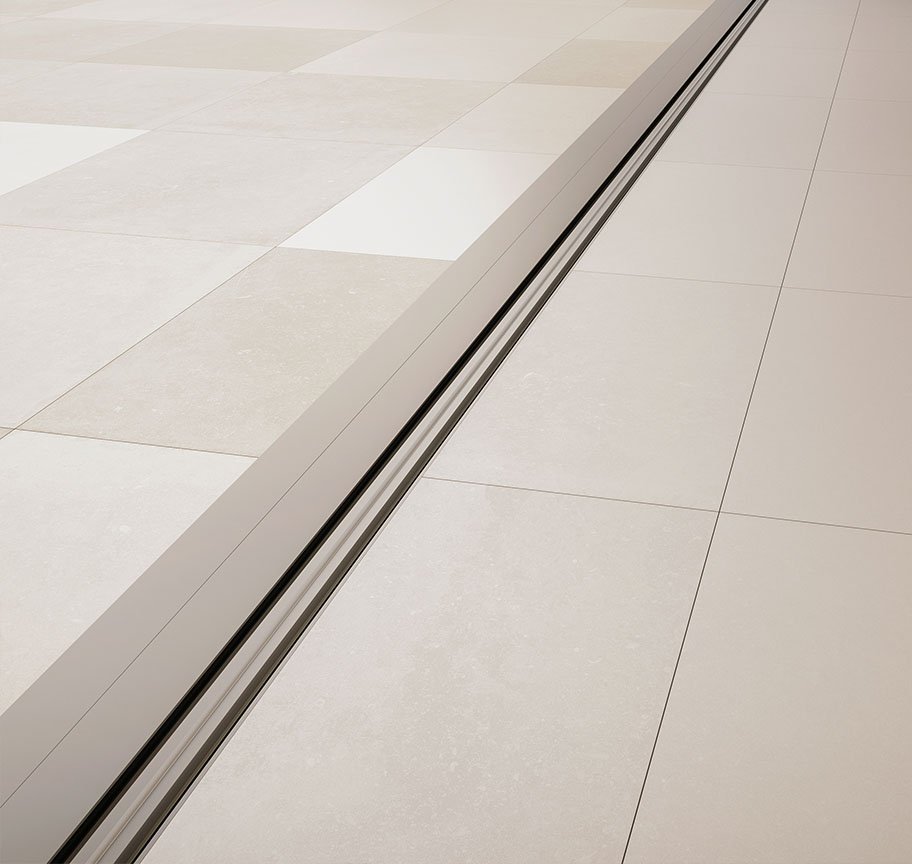

BUILD IN TRUCKS
CONCEALED GASKETS
ELVIAL SL46 SI² FLAT EDITION differs. It sports a 56mm mullion, far narrower than the 89mm one of standard profiles. We chose the narrow design to create the maximum access to the view that will surround you. There’s no such thing as ‘too much’ when it comes to enjoying the view.
The solution still complies to the strictest standards without compromising efficiency. The narrow mullion bears a 55mm outer reinforcement in order to adhere to higher static requirements and cover the most demanding wind pressure.
The system is reinforced with special decorative caps that create a unified visual composite. We took the term ‘flat’ quite literally when designing this solution. All tracks of the SL46 SI² FLAT EDITION are totally concealed but still reachable allowing for easy cleaning and maintenance.

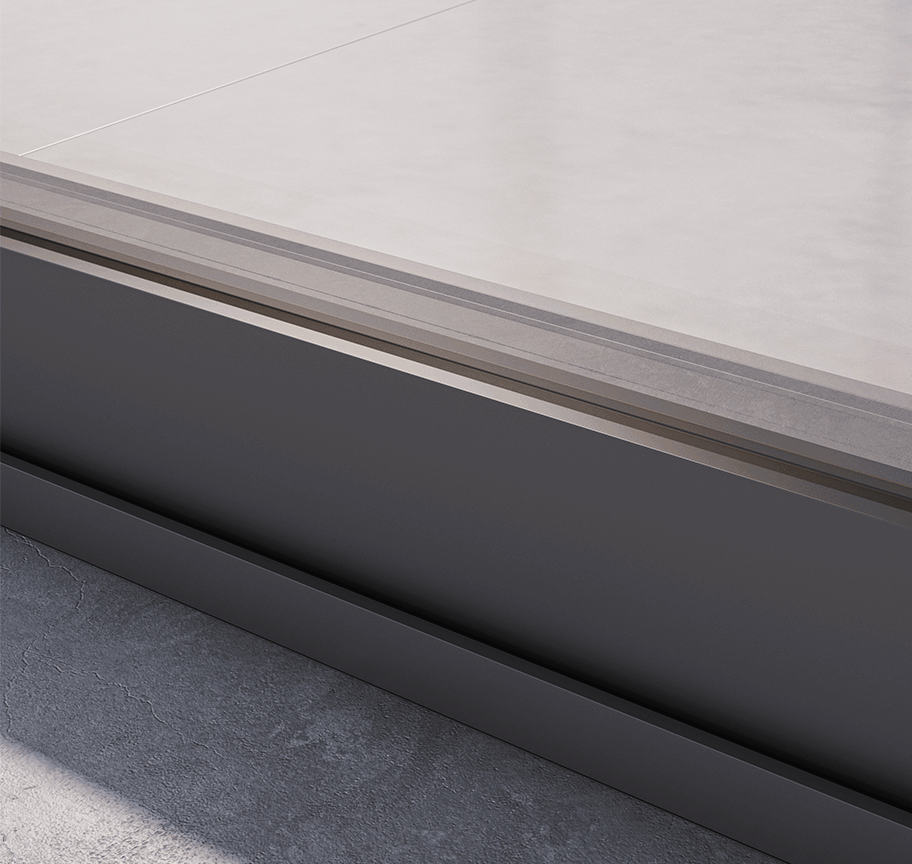

Τhe SL46 SI² FLAT EDITION sports another tested design feature that you will greatly appreciate. The track of the profile is concealed by the floor, still efficient and watertight.
The gaskets of this aluminium profile are fitted to go undetected around the perimeter of the glazing zone. The aluminium system is durable and effective plus very elegant.
EXTRA FEATURES

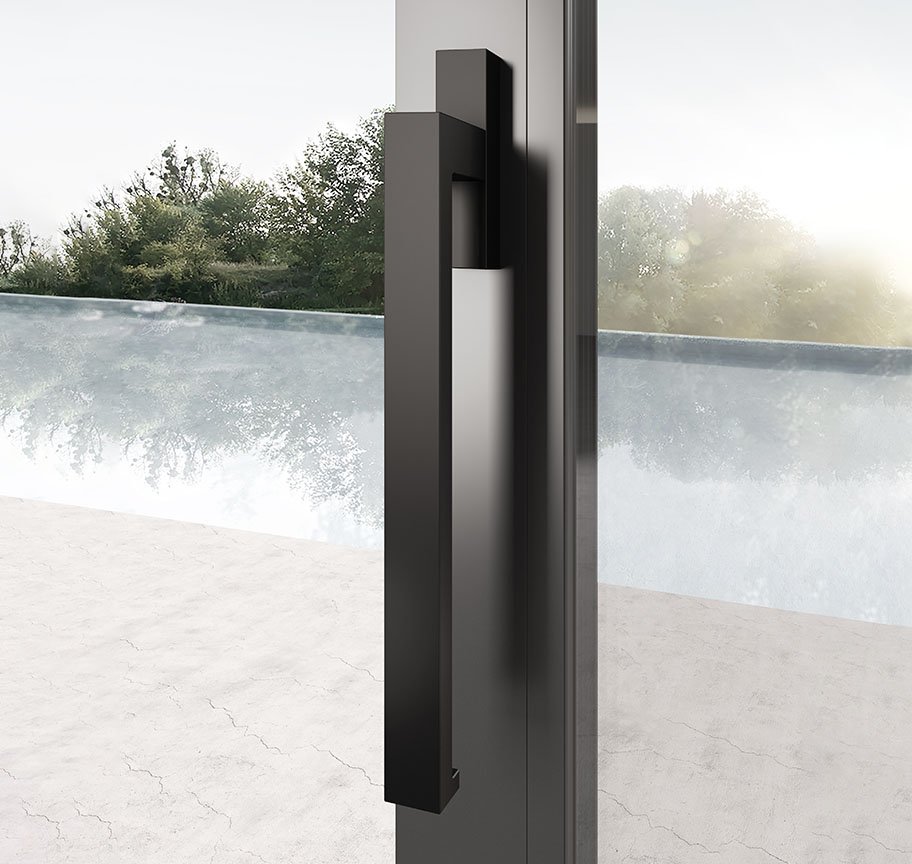

INNER HANDLE

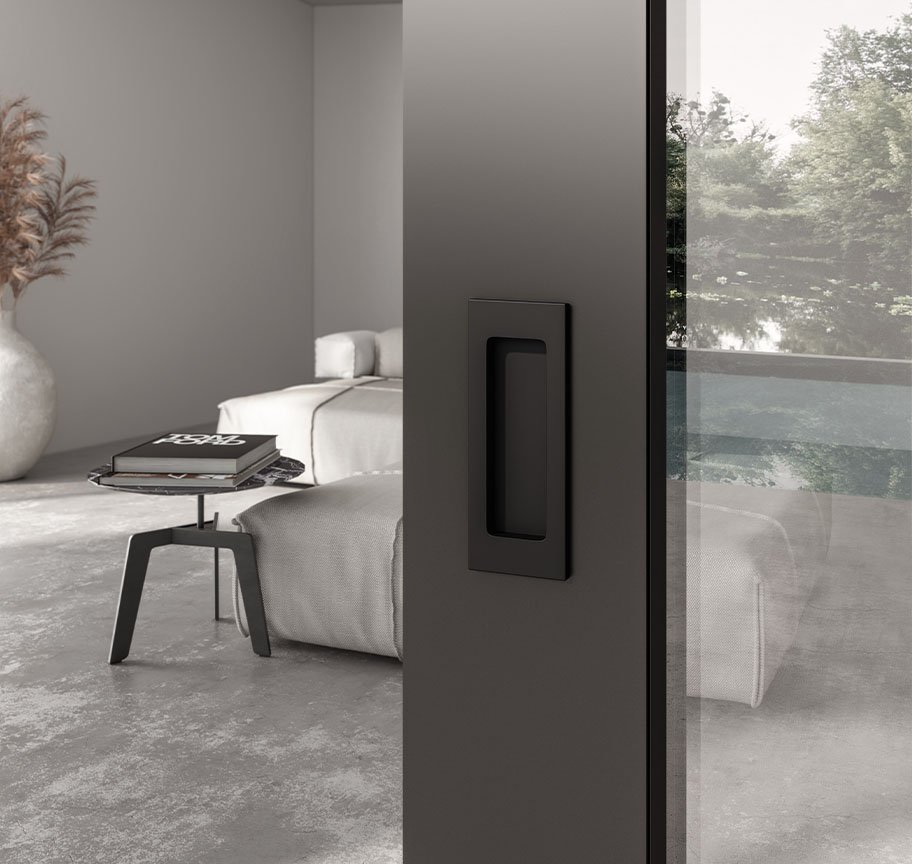

OUTER FLUSH PULL

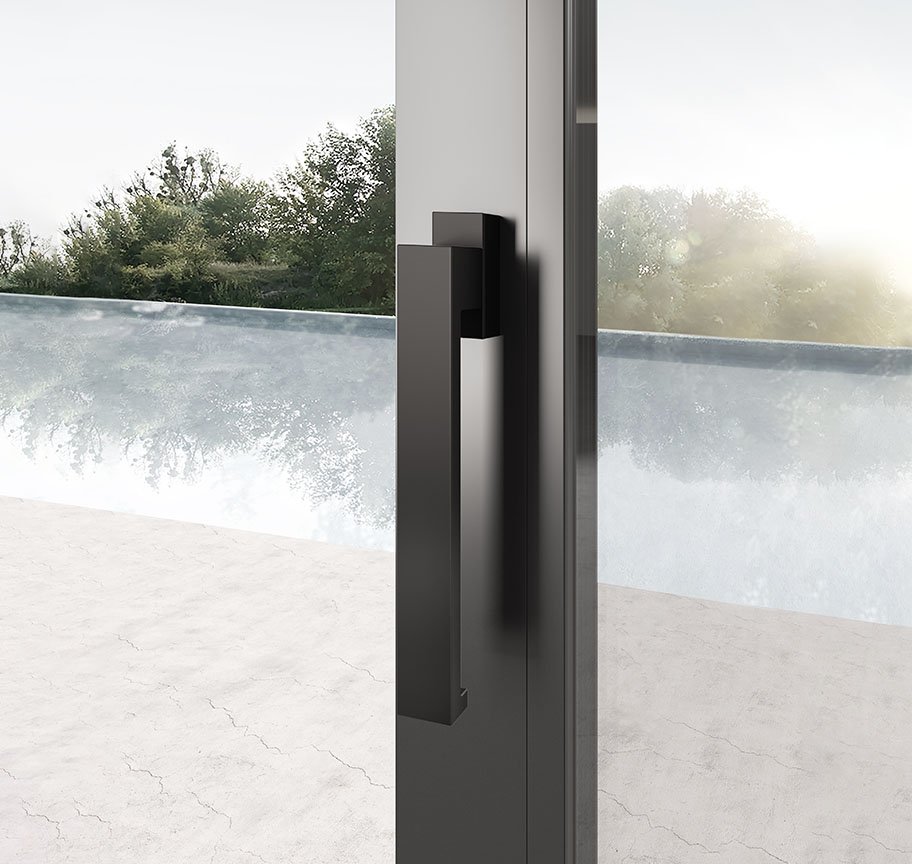

INNER HANDLE

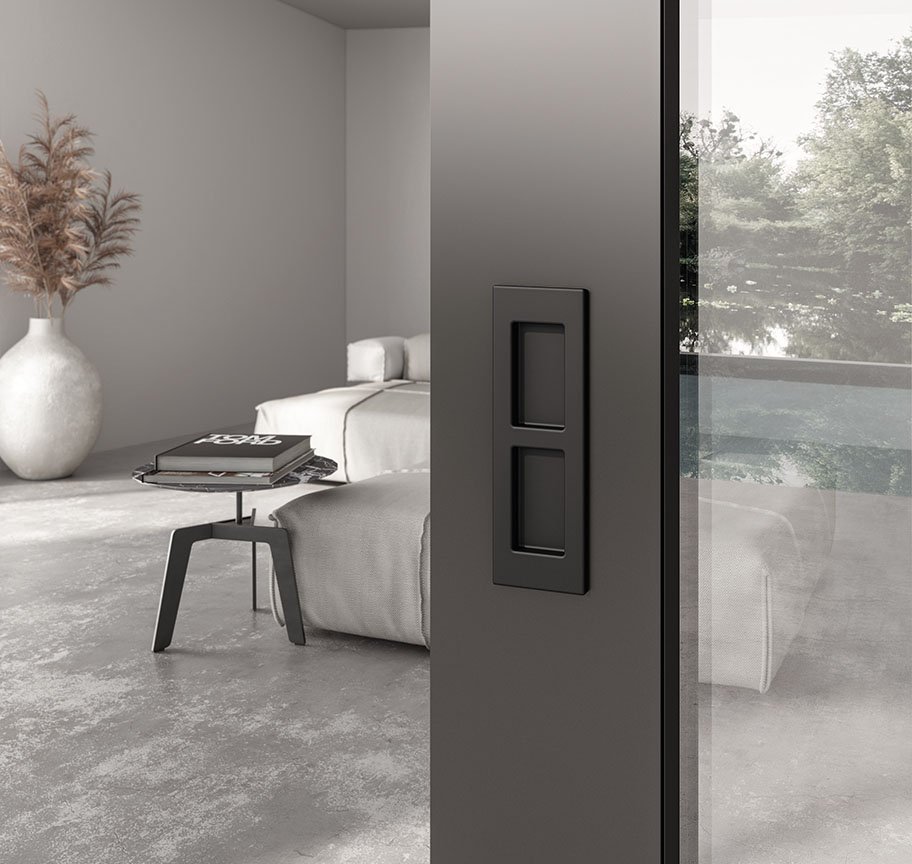

OUTER FLUSH PULL
The SL46 SI² CLASSIC bears the mark of our holistic approach to design. The handles on the inside are minimal and lean. Function and form are in perfect harmony.
The profile’s flush pulls on the outside are barely there. The frame looks even and sleek from every angle. Function and form are in perfect harmony.
Handles are so sophisticated that render a unique style to any architectural design. Function and appearance are in perfect harmony.
The profile’s flush pulls on the outside are barely there. The frame looks even and sleek from every angle. Function and form are in perfect harmony.

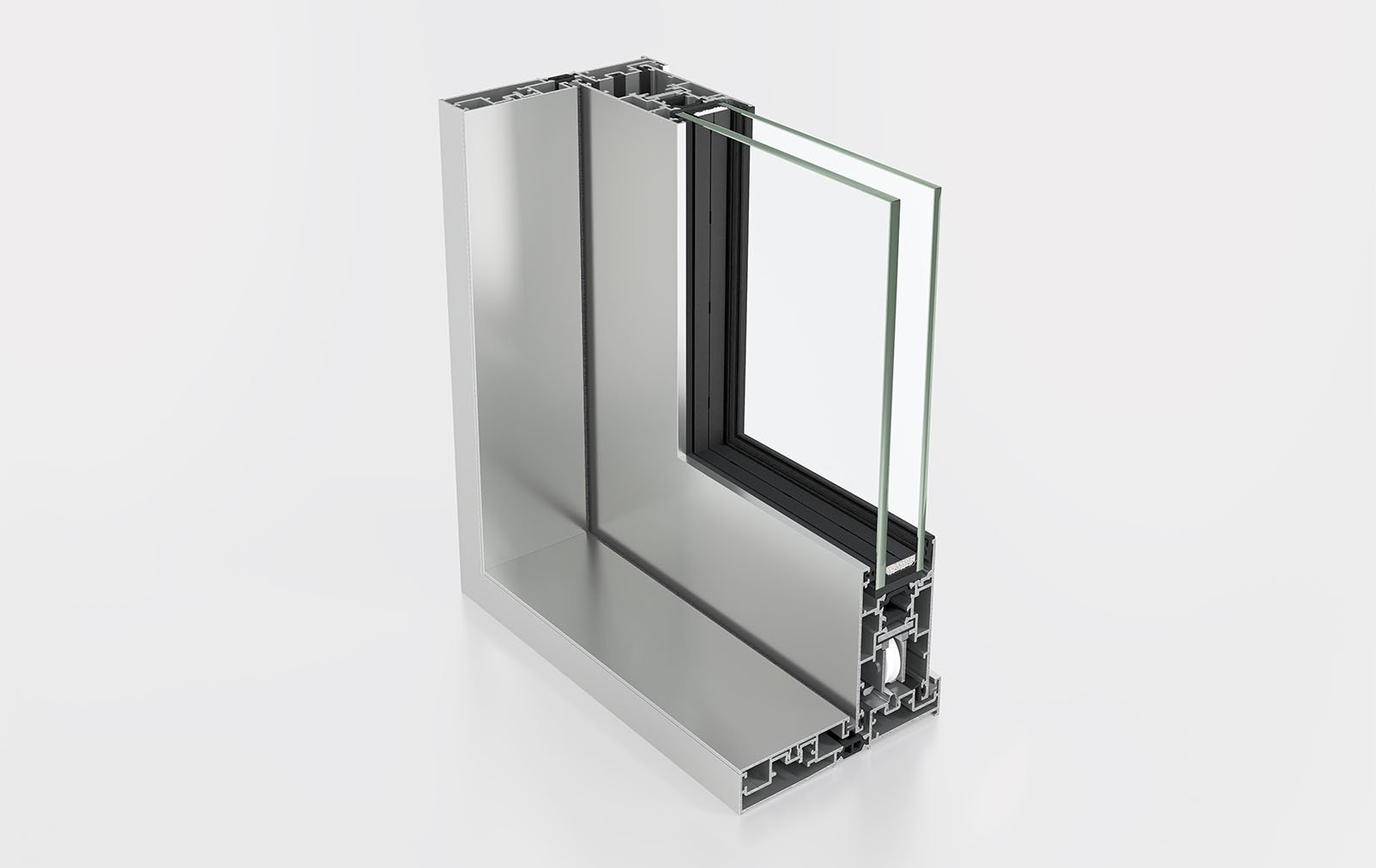

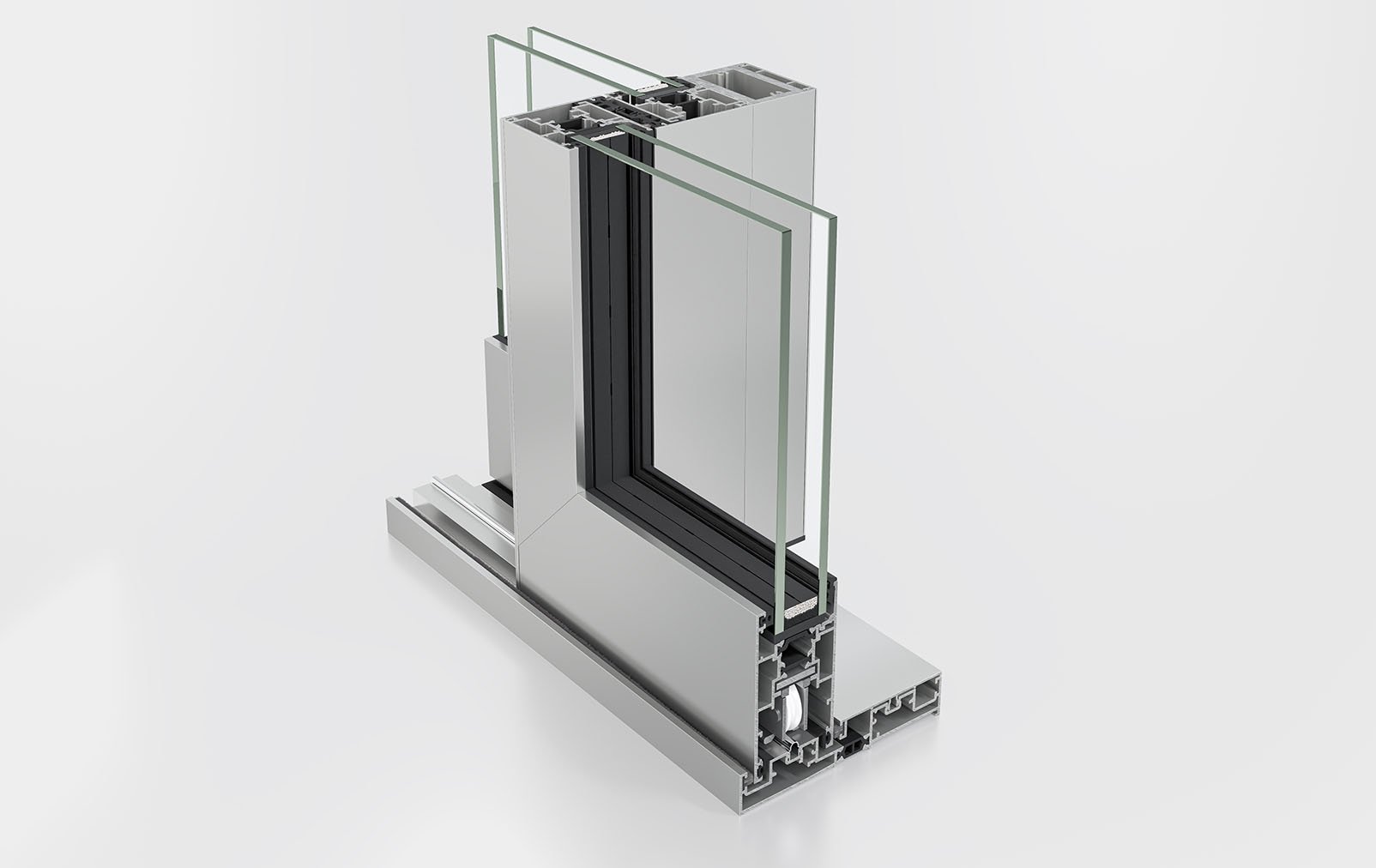

THE TECHNOLOGY
THE TECHNOLOGY
THE TECHNOLOGY
This aluminium system is one of the most popular in its category. It is more than certain that you too will appreciate its efficiency as have many happy customers before you.
This aluminium system is one of the most popular in its category. It is more than certain that you too will appreciate its efficiency as have many happy customers before you.
THE THERMAL INSULATION
The SL46 SI² FLAT EDITION protects your space from trials of the weather. Hot, temperate or cooler climates meet their match.

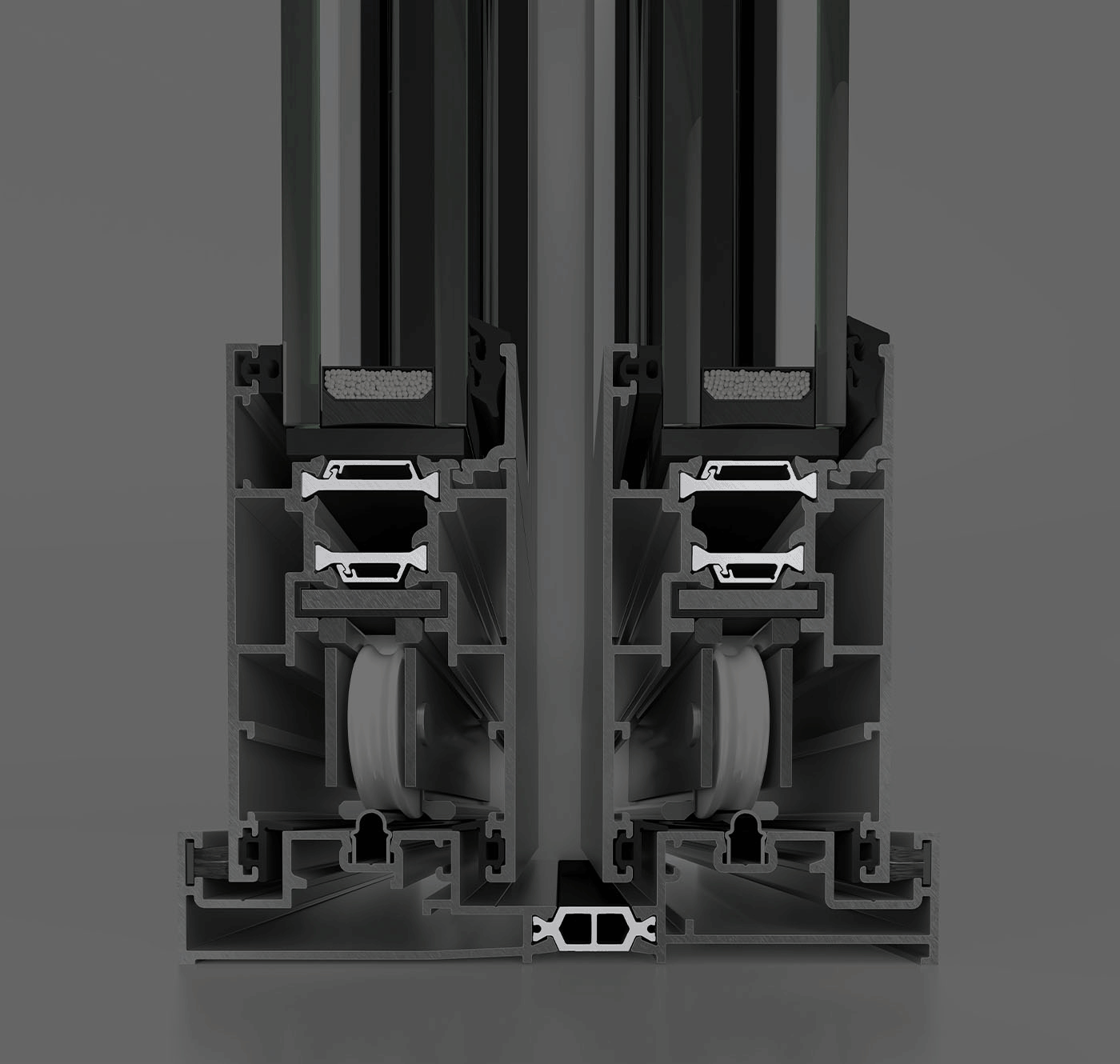

22MM INSULATING BARS

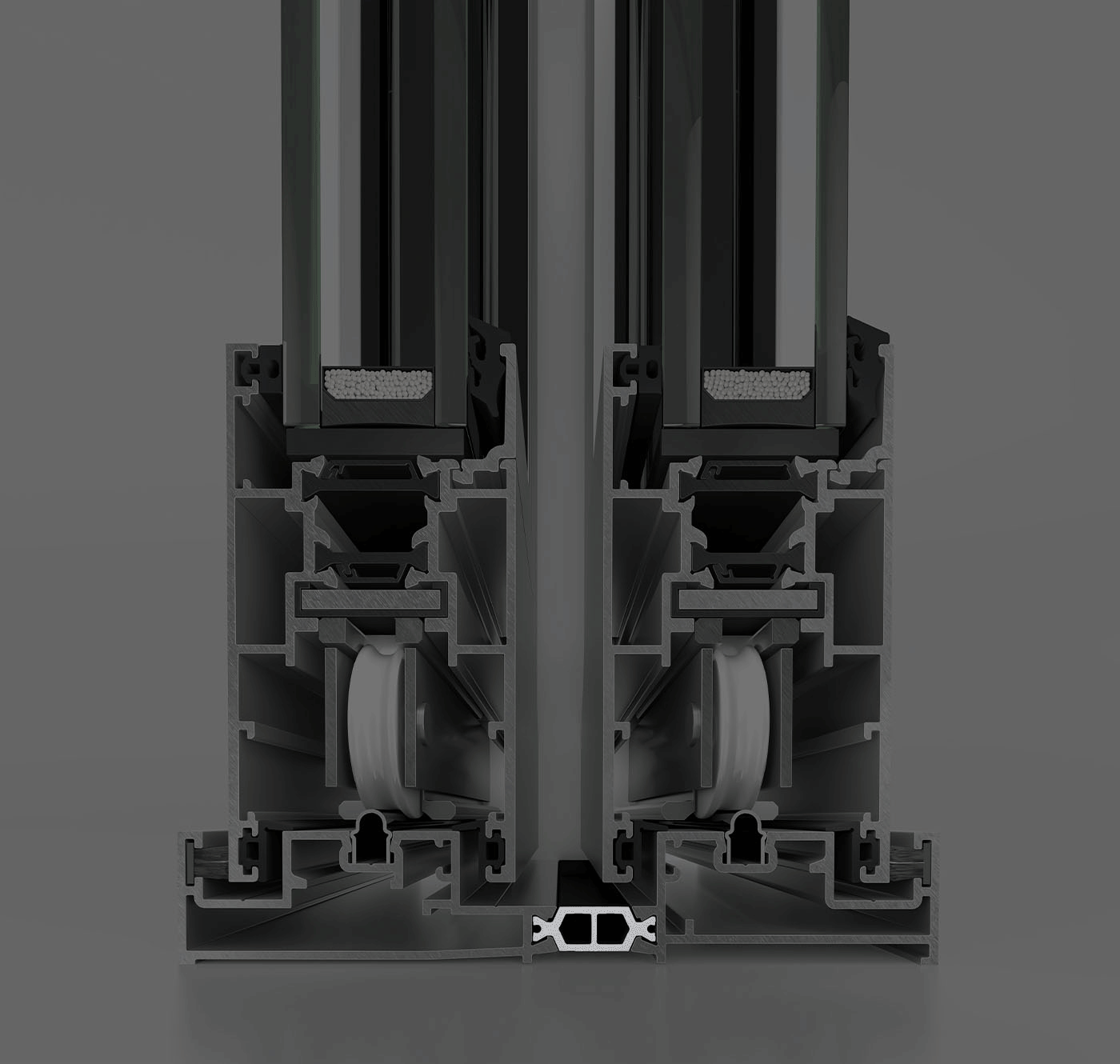

CUSTOMIZED INSULATING BARS
Wide insulating bars of 22mm with glass fiber re-enforcement 25%, are applied to all system profiles, offering high thermal insulation levels and extra rigidity.
The customized insulation bars are set both in the central zone and the middle mullion so the aluminium system is energy efficient and performs within ELVIAL standards.
The Total Sealing System
ELVIAL sliding systems are designed to offer the efficiency you need and the style you desire. The SL46 SI² FlLAT EDITION is an exemplary case.

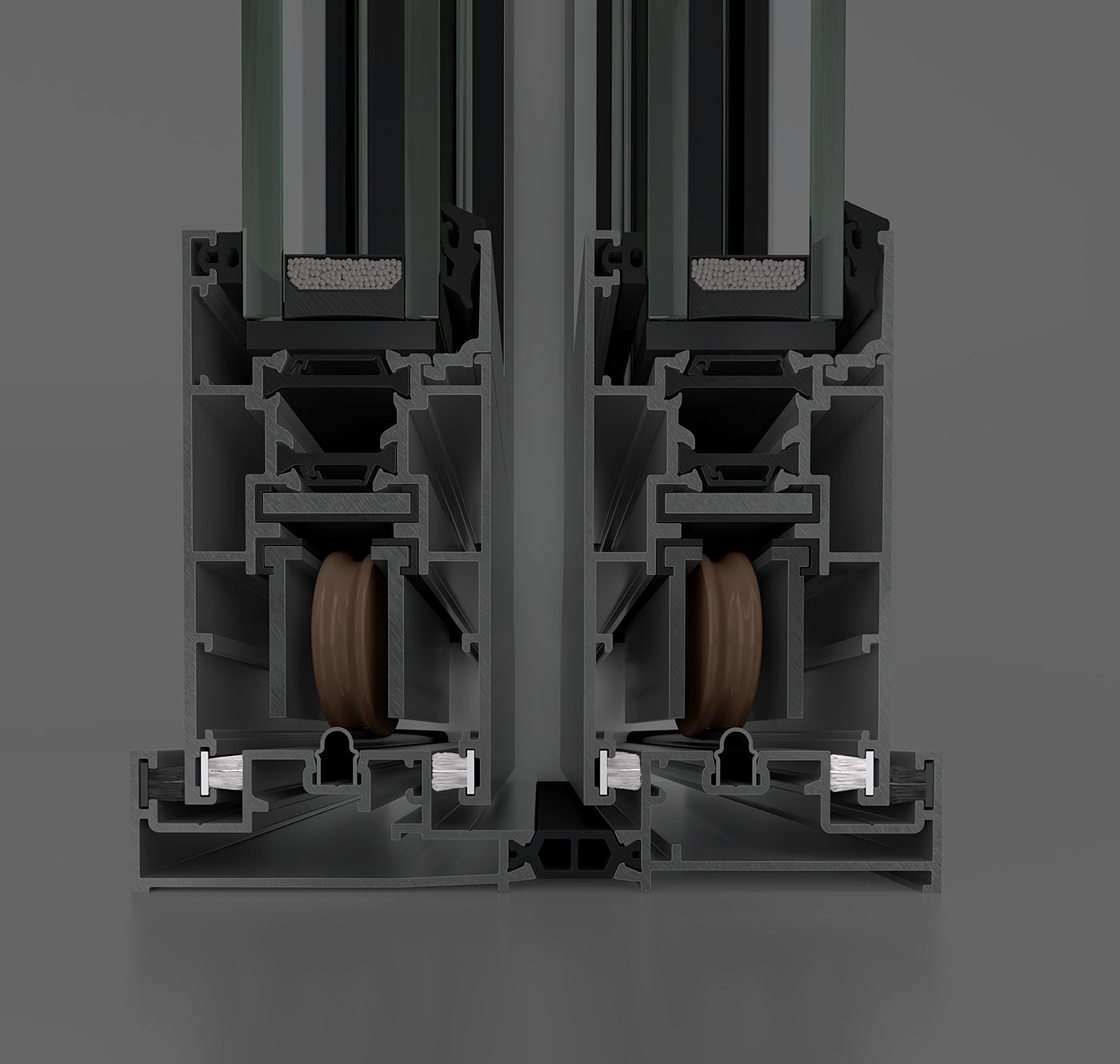

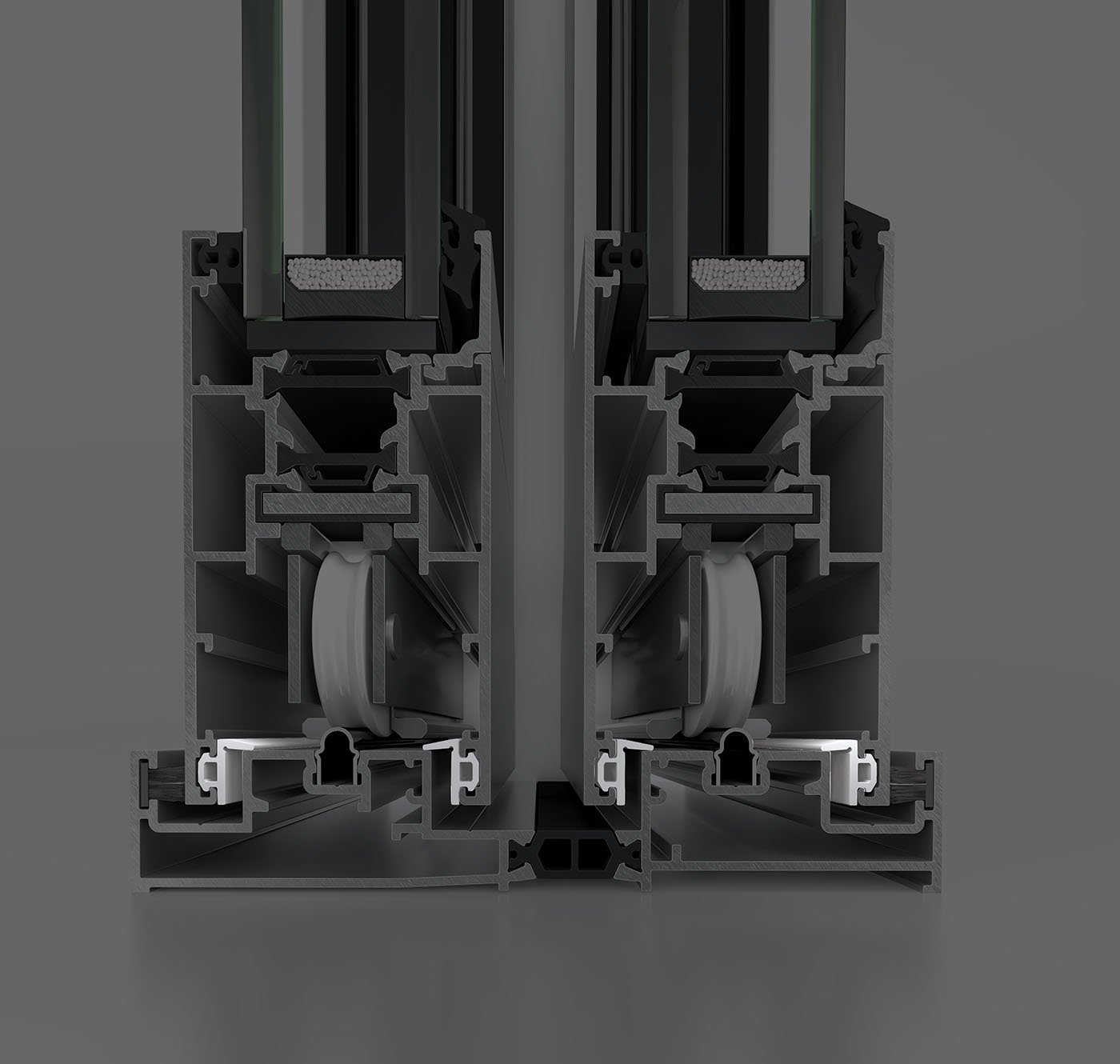

EFFICIENT PROTECTION

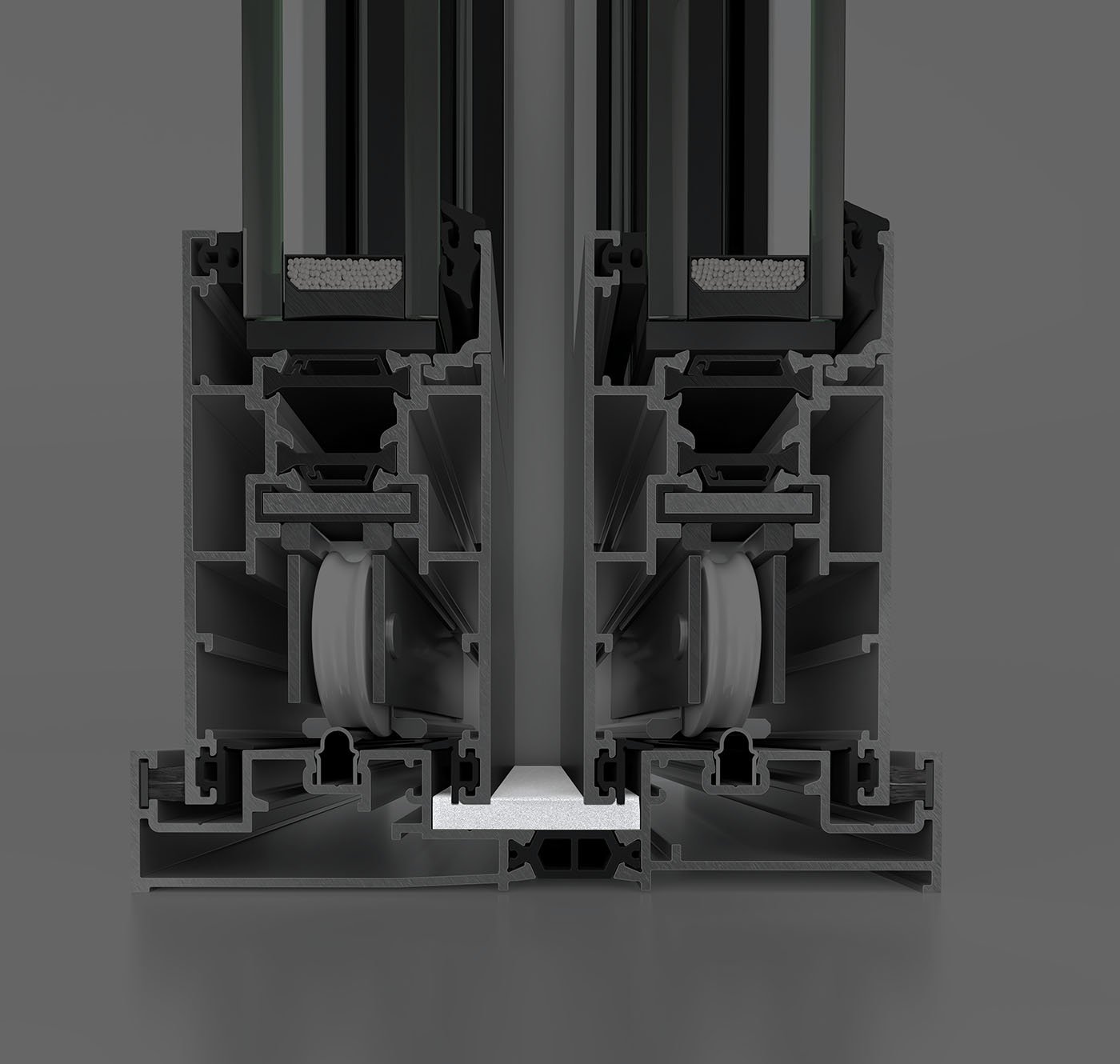

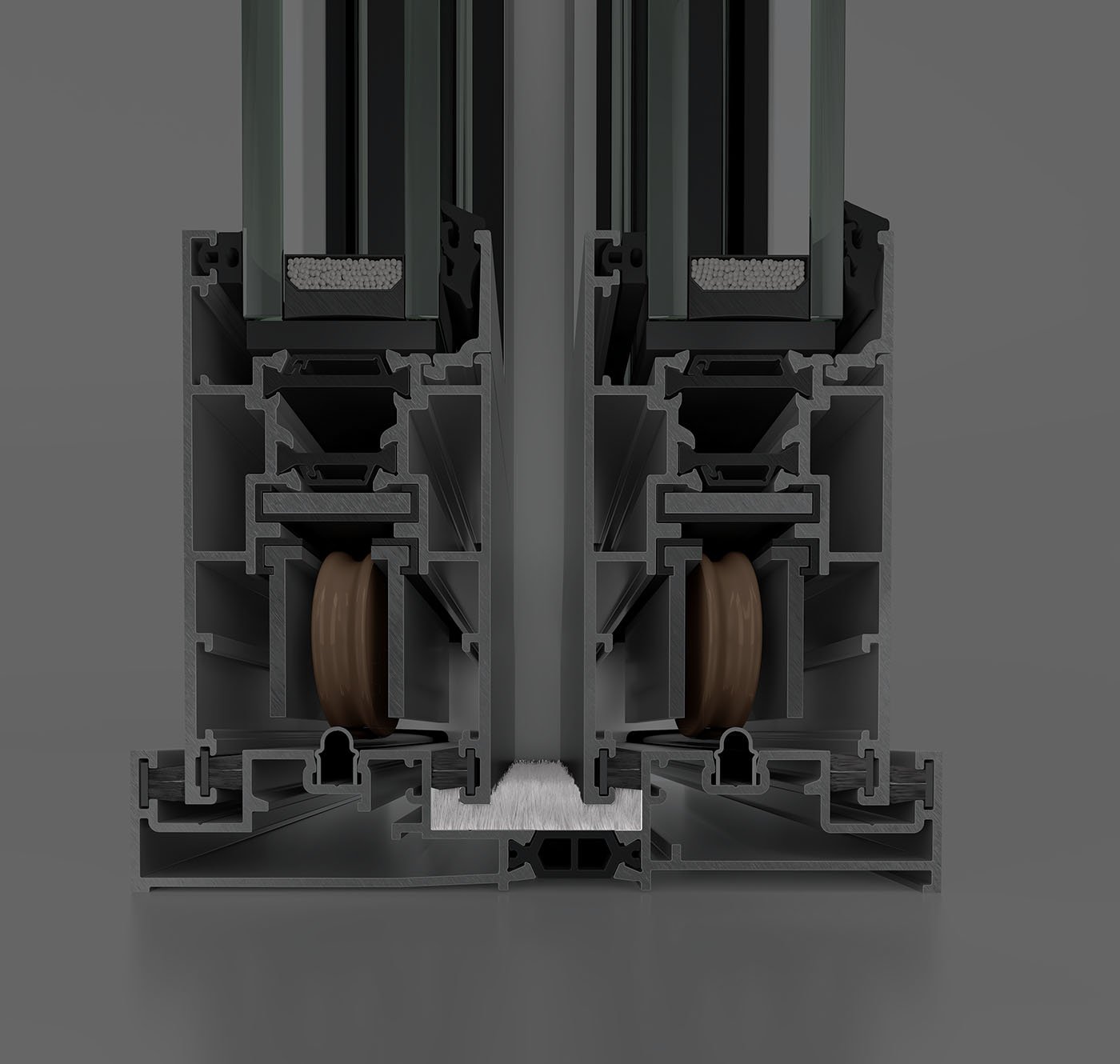

PRACTICALLY IMPERMEABLE
EFFICIENT PROTECTION
PRACTICALLY IMPERMEABLE
The profile is fitted with customized gaskets that keep your space neat and water tight.
Α specially designed foam gasket is fitted to ensure that the construction will remain totally watertight.
The profile features a specially developed combination of customized brushes with sealing membrane that ensure the efficient protection from wind and water.
Α specially designed central gasket is fitted to ensure that the construction will remain totally watertight.
Durability For A Life Time
This collection has been proved to stand the test of time and has many devoted witnesses of its value.

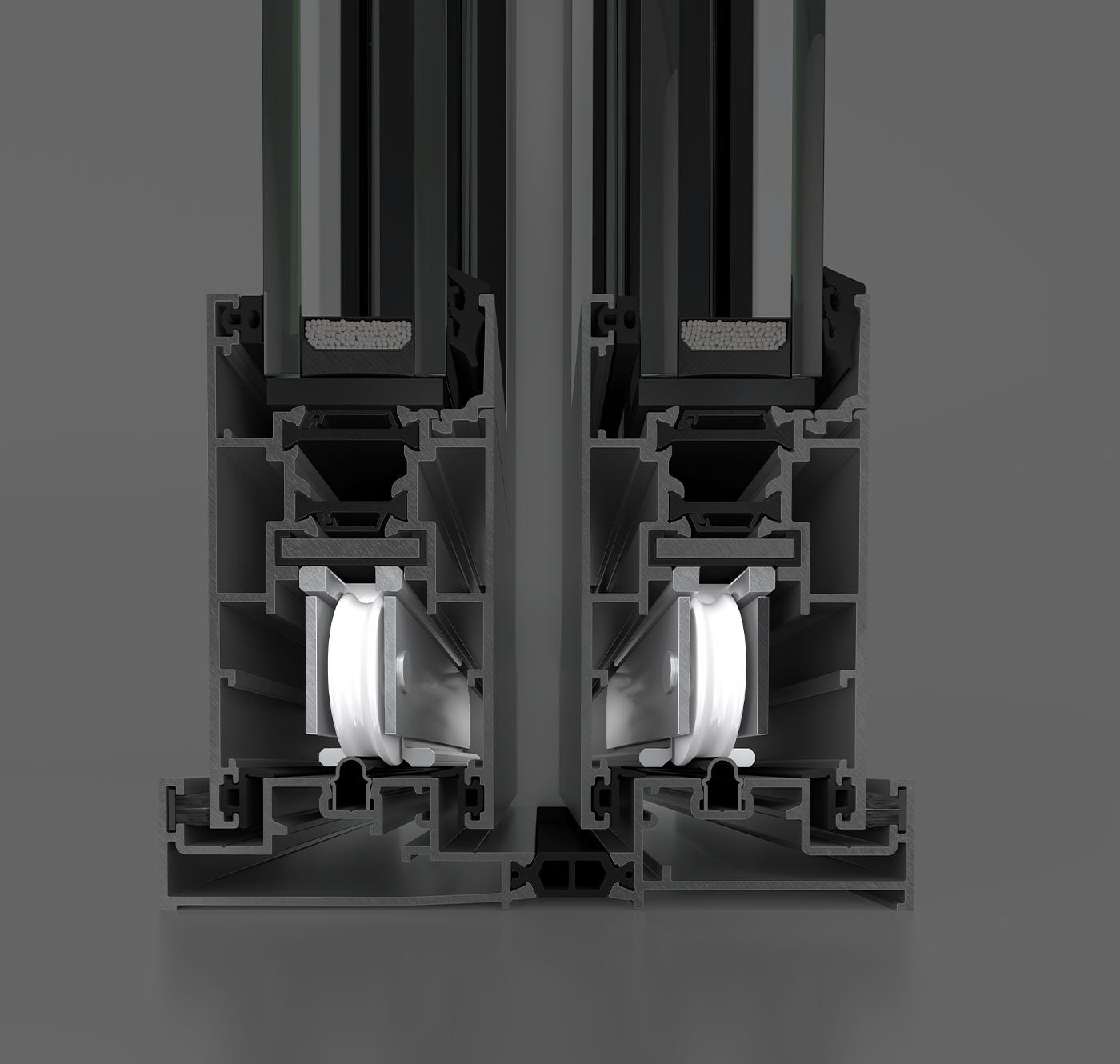

HIGH QUALITY ROLLING

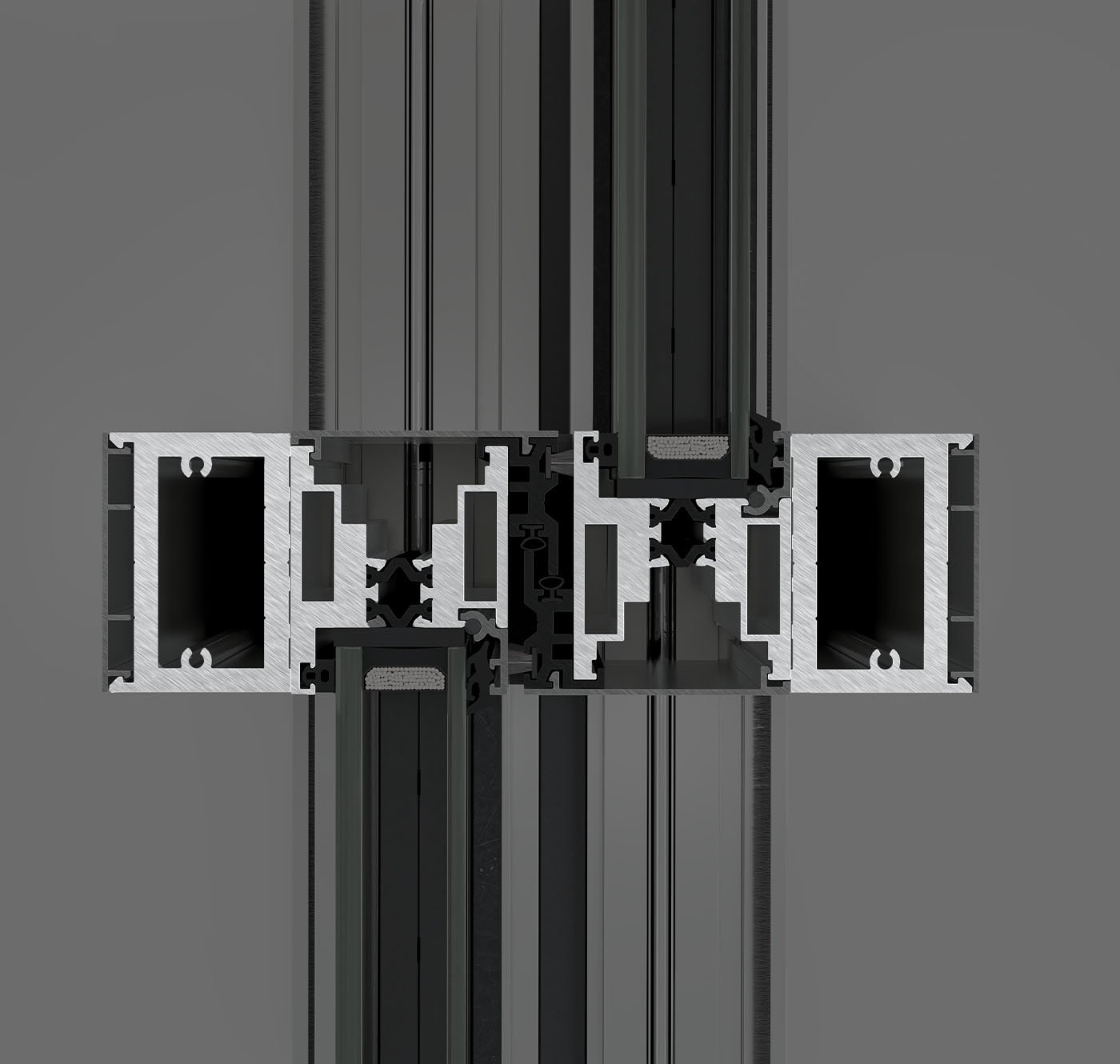

MAXIMUM STRENGTH
This solution can bear up to 250 kg per sash and maintain quality rolling. It is a perfect fit for spaces with wide openings and lets you enjoy your view.
There are various reinforcements available in this system designed to match the wind pressure requirement you will prescribe.
THE SECURITY
You want to be sure your space is protected by more threats than the weather. This system offers excellent anti-theft defence, providing an RC2 level of safeguard.
ANTI-LIFT
Your aluminium system is equipped with a specific anti-lift mechanism to prevent intrusions.
THE IDENTITY
DESIGN
Properties
Visible Height
Standard Edition
Visible Height
Infloor Edition
Middle Mullion Width
Successive
Meeting Stile Construction Width
Meeting Stile
Properties
Max Sash Height
2.800mm
Max Sash Width
2.000mm
Max Sash Weight
400kg
Max Glass Thickness
30mm
Uf Value (≥)
3.4 W/m²K
Uw Value (=)
1.58 W/m²K
Air Permeability
Class 4
Water Tightness
7A
Wind Load Resistance
C2/B2
Sound Reduction
38dB
