ESSENCE SL60 HI² FLAT EDITION
DIGALAKIS A.

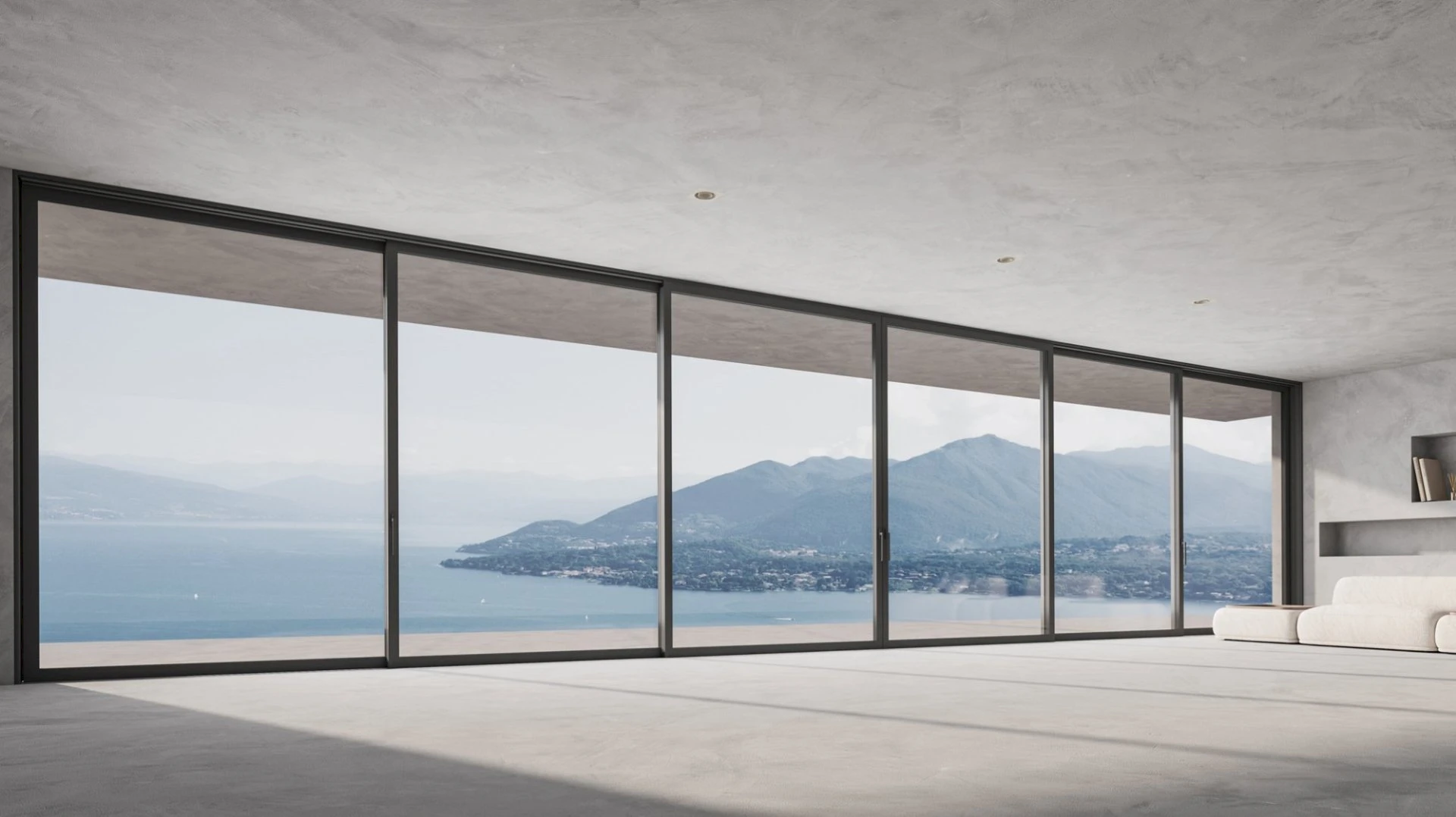

ESSENCE SL60 HI² FLAT EDITION
Limits are ever-expanding and you need an aluminium solution that will allow you to create the limit. This is the Essence SL60 HI² FLAT EDITION. The track of 25mm and 29mm outer and inner width respectively, can be concealed to the floor or wall. The system’s performance? Νo less stunning.
THE DESIGN
The openings’ construction can reach more than 6.5 m, creating an aesthetically pleasing, minimal frame to unlimited views.
ATTENTION TO DETAILS
UNLIMITED VIEW

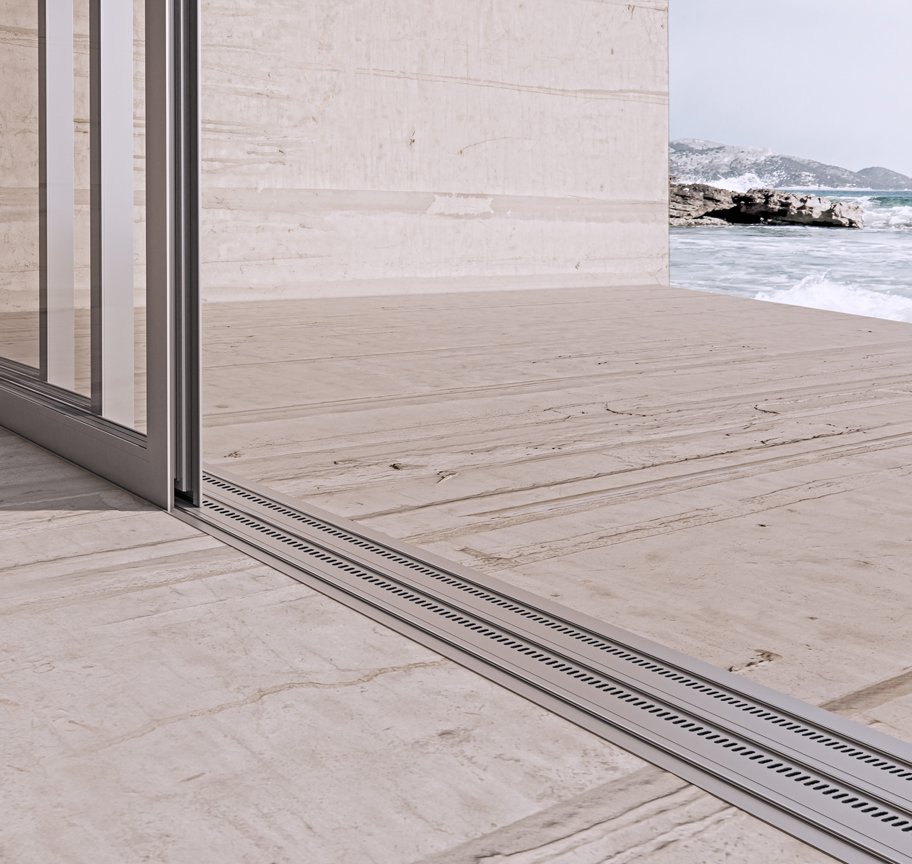

LINEAR FRAME & UNOBSTRUCTED TRANSIT

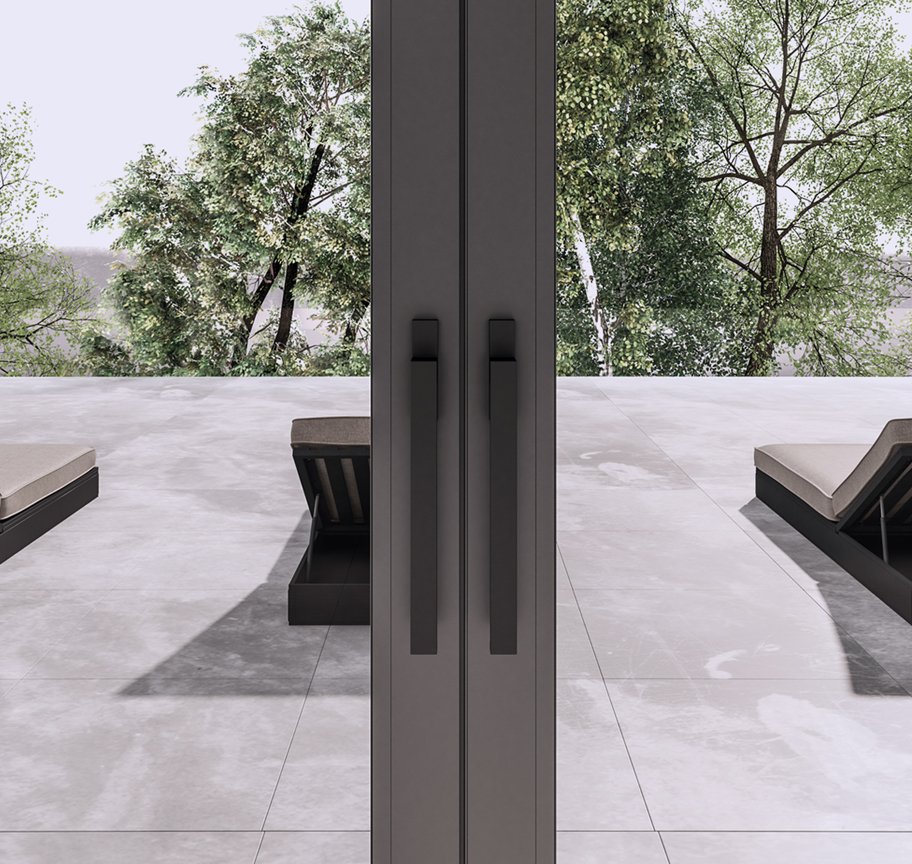

SUPERIOR ROBUSTNESS & ELEGANCE

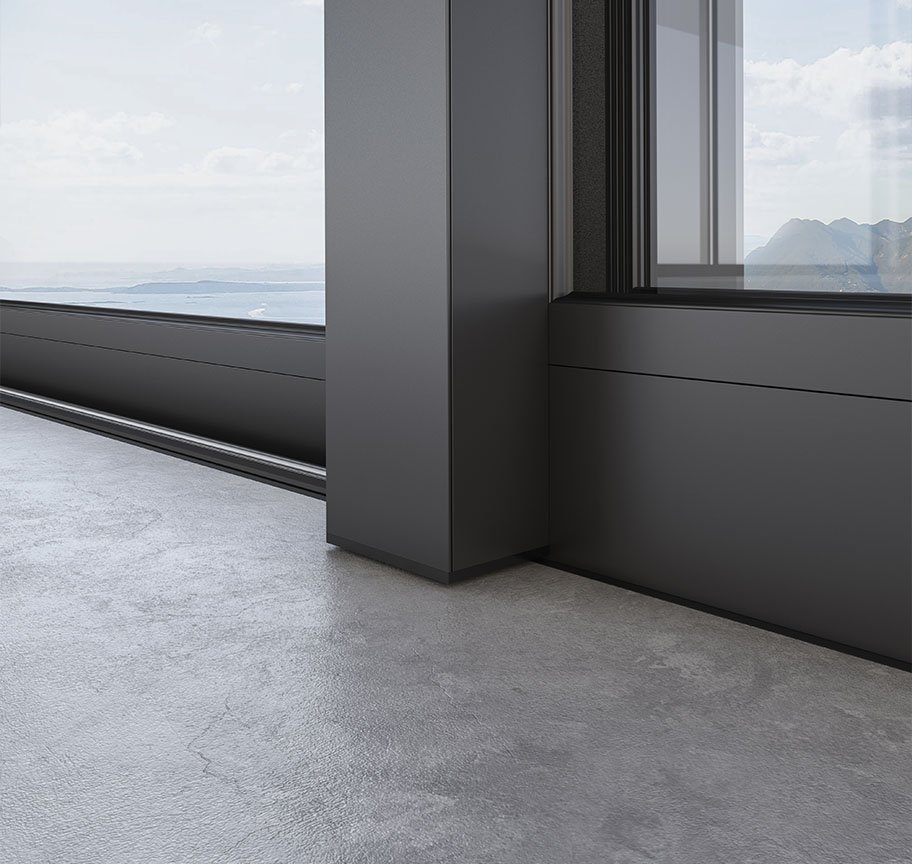

EXPANSIVE OPENINGS
GHOST GLAZING GASKETS
CONCEALED WATER DRAINAGE SYSTEM
ENJOY QUIET SUMMER NIGHTS

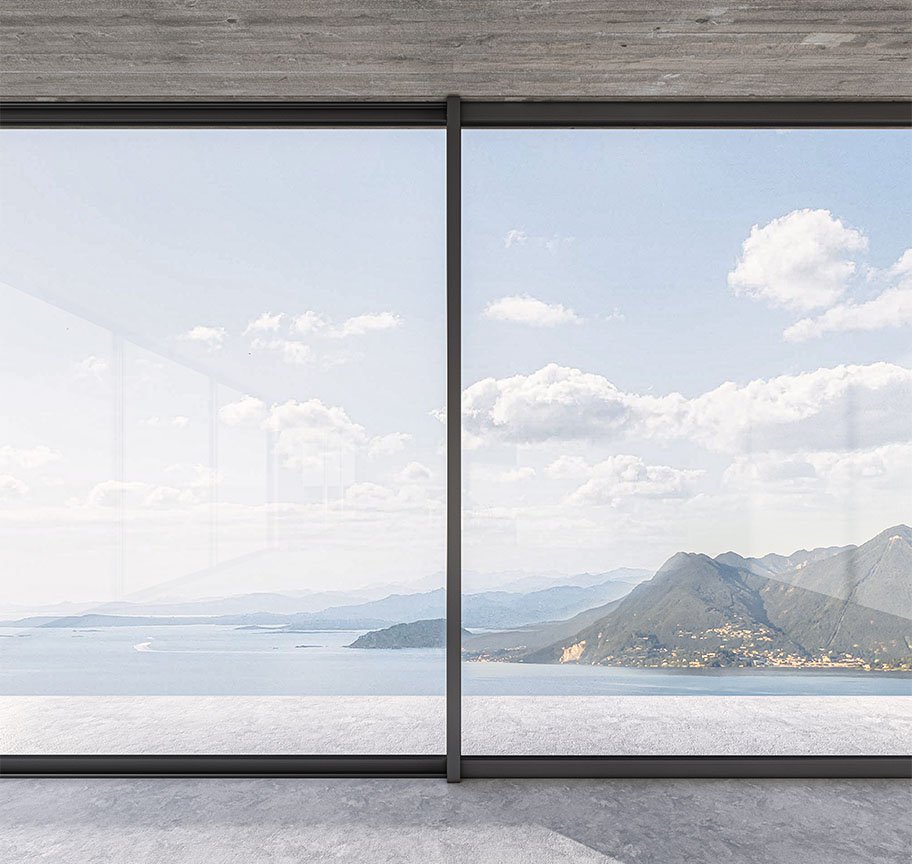

The conjunction of the sashes in all successive types of construction is the pinnacle of elegance. The centre vertical frame measures just 48mm thanks to a narrow interlocking profile. The flyscreen profile is likewise constructed. Let your eyes wonder! Soak in the view.
The flat tracks of the ESSENCE SL60 HI² FLAT edition, create a a minimal linear frame of just 25mm. The flat geometry and low height of the tracks make this edition an ideal solution for people with physical challenges and children.
Precision is key. We designed the meeting stile construction on the same unifying principle. The adjoining profile is hidden in the sash. The joint point of the sashes sports the same level appearance of 8mm in both the interior and exterior facet.
Imagine openings that reach 3.500mm. You are free to create them. The meticulously studied reinforcements ensure the system's prime static strength even against extreme weather.

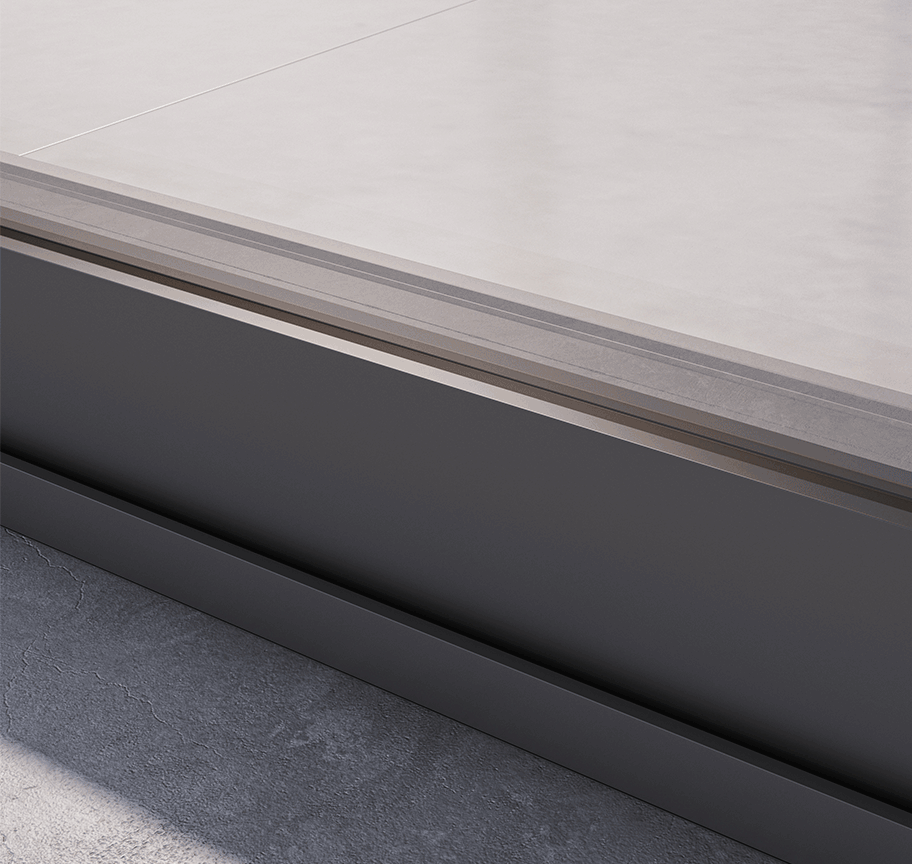

The appliance of Ghost glazing gaskets minimizes the visible facet and renders the gaskets practically invisible. Once more, aesthetic prevails and functionality is not compromised.
The customized system that covers the exterior water drainage system (profile and component) is another feature that upgrades the construction both aesthetically and functionally.
The combination of the ESSENCE SL60 HI² FLAT EDITION with a flyscreen will tend to a restful sleep.
EXTRA FEATURES

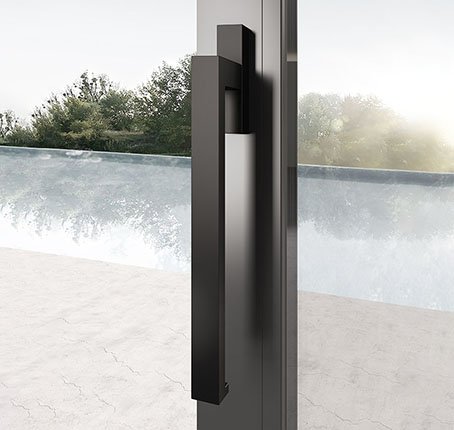

INNER HANDLE
OUTER FLUSH PULL

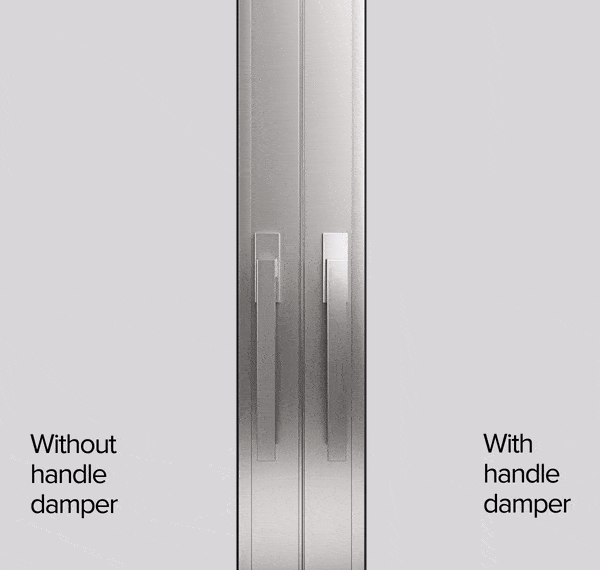

FEEL THE DIFFERENCE
MAXIMUM STRENGTH MAXIMUM COMFORT

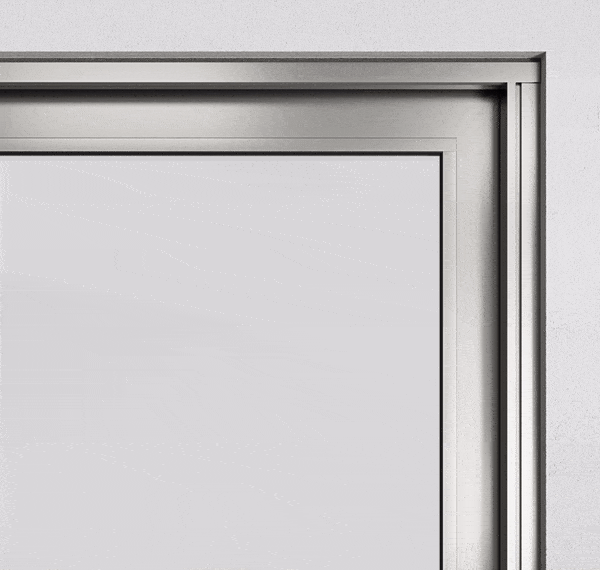

STOP DAMPING UNIT & SILENT CLOSE DAMPING UNIT
ANTI-JEMMY DEVICE
SPECIAL DESIGNED FLUSH PULL
Meticulously studied and expertly designed, this system is superb. The handles on the inside are minimal and lean. Function and form are in perfect harmony.

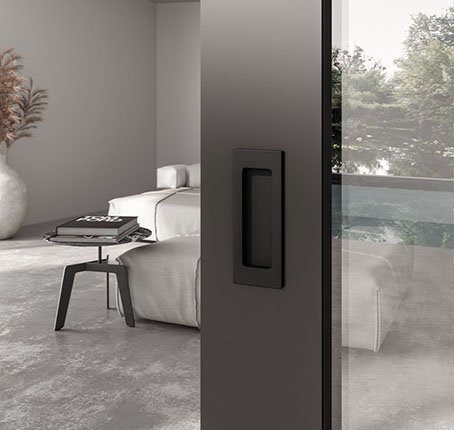

The profile’s flush pulls on the outside are barely there. The frame looks even and sleek from every angle. Function and form are in perfect harmony.
There's maximum comfort and minimal stress. The handle damper does the work.

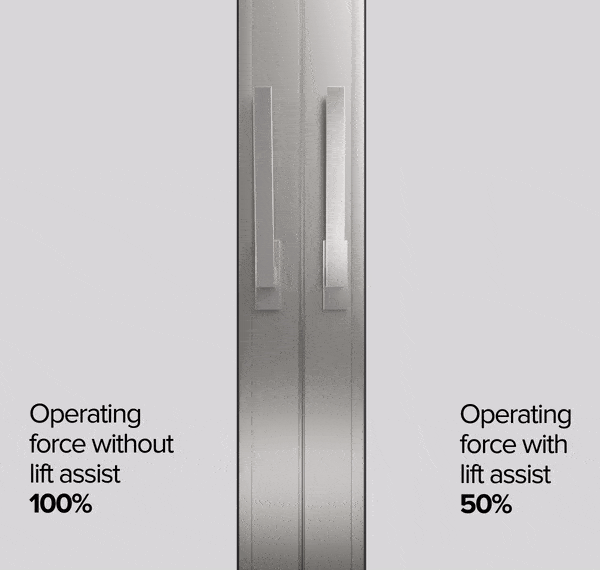

Smooth function and comfortable use. This is what the Lift assist does for you and your system, even if you choose the glazing of maximun weight.
When creating the user experience of this system no detail was spared. The stop damping unit and silent close damping unit increase the system's safety and comfortable use.
Another detail that upgrades this system. Your aluminium system is equipped with a specific mechanism, an anti-jemmy device, to prevent the system's infraction. Furthermore, it features anti-burglar lock with rod movement and lock up and down offering an additional level of protection and safety for users.

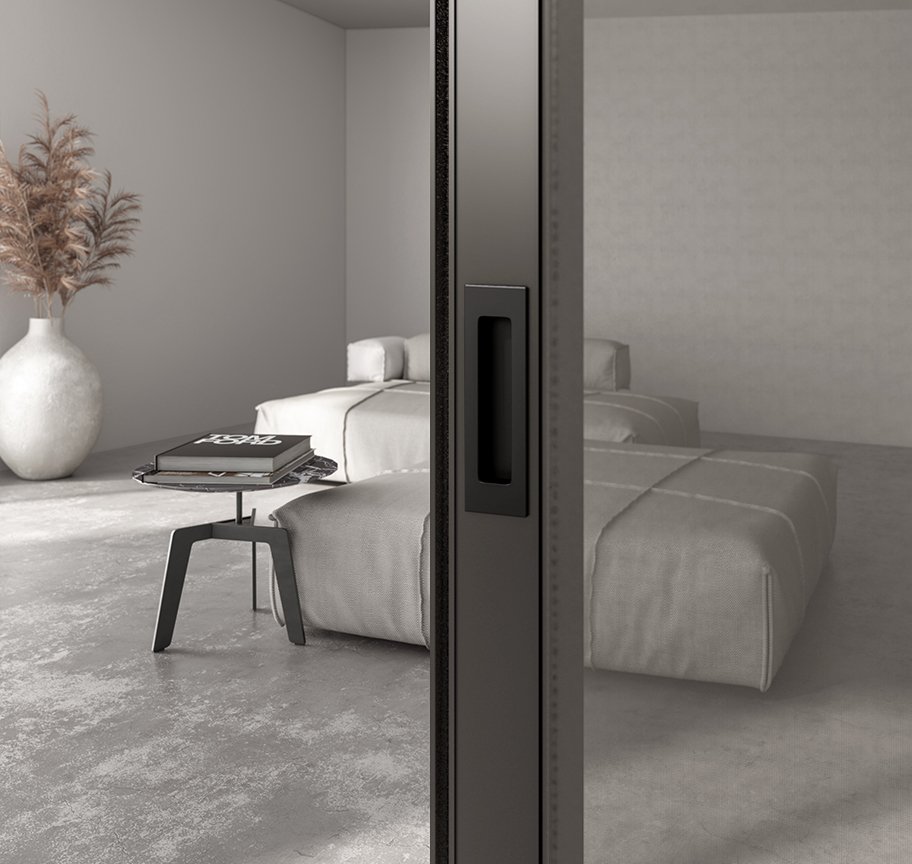

This flyscreen flush pull by ELVIAL, designed for effortless operation, enhances both functionality and aesthetics of the final result.
SUCCESSIVE CONSTRUCTIONS
In successive sliding systems, the sashes slide each other and offer typologies to help you complete small or large scale projects.

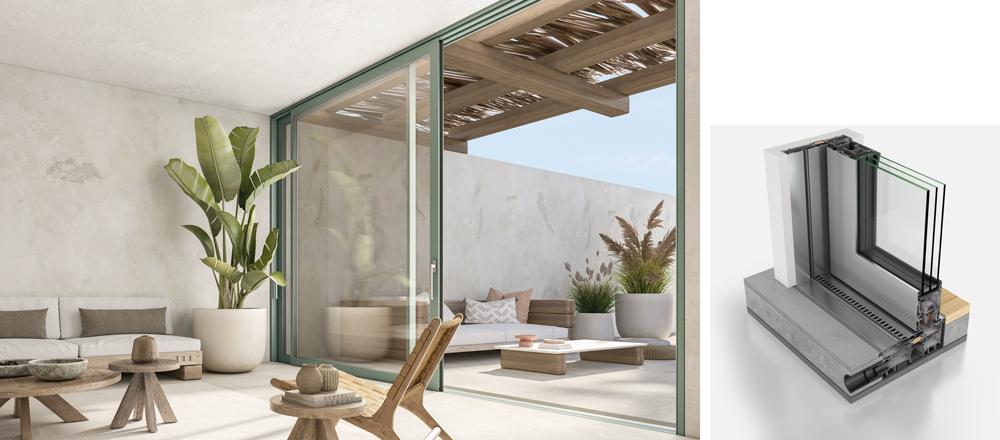

2-Sash

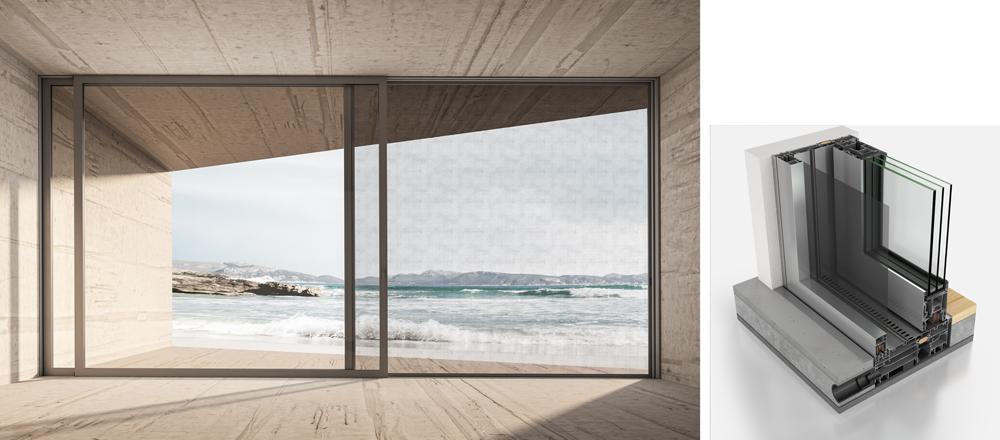

2-Sash with flyscreen

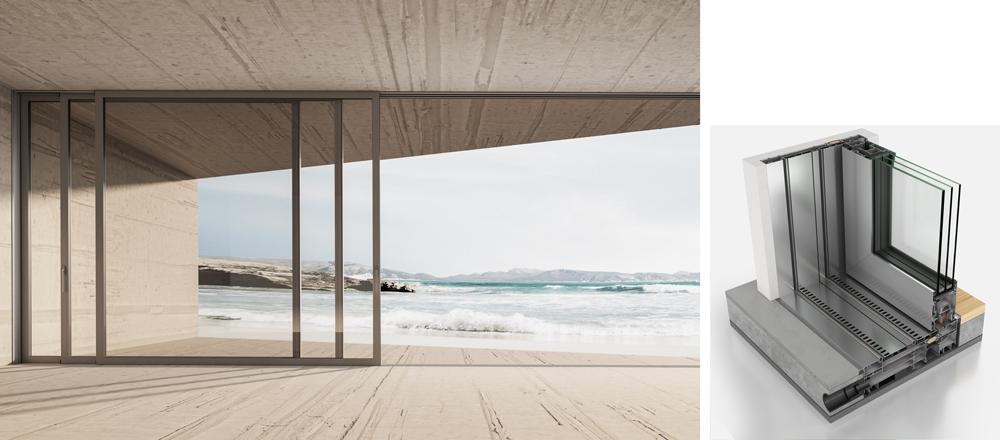

3-Sash
MEETING STILE
In this solution, the sashes are joined in the center of the opening, offering unparalleled comfort and functionality. 4-sash, 6-sash, and solutions with flyscreen or fixed parts give even greater flexibility.

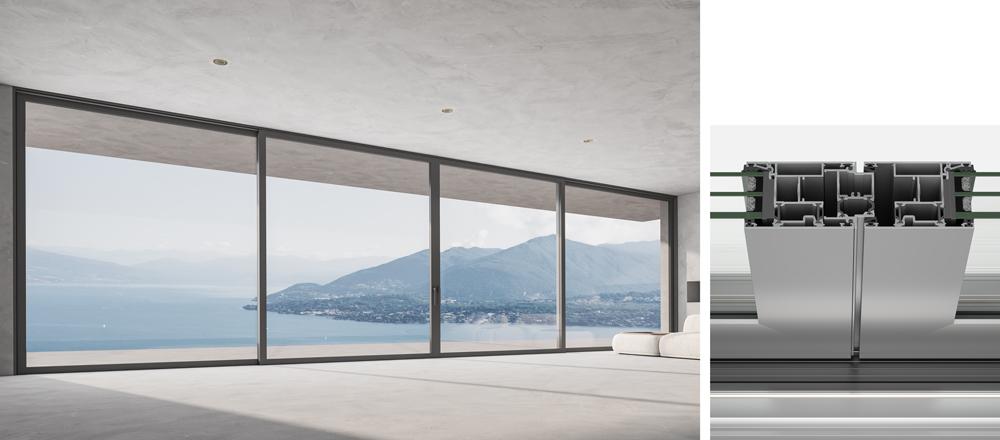

4-Sash meeting stile

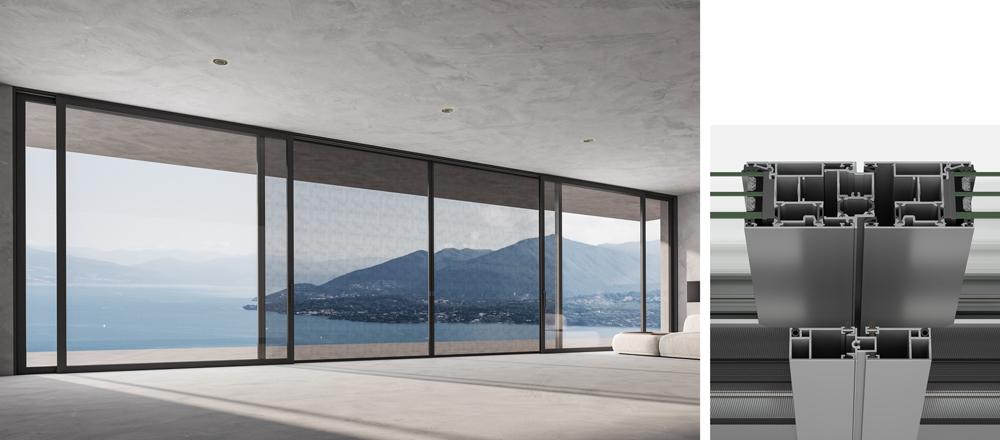

4-Sash meeting stile with flyscreen

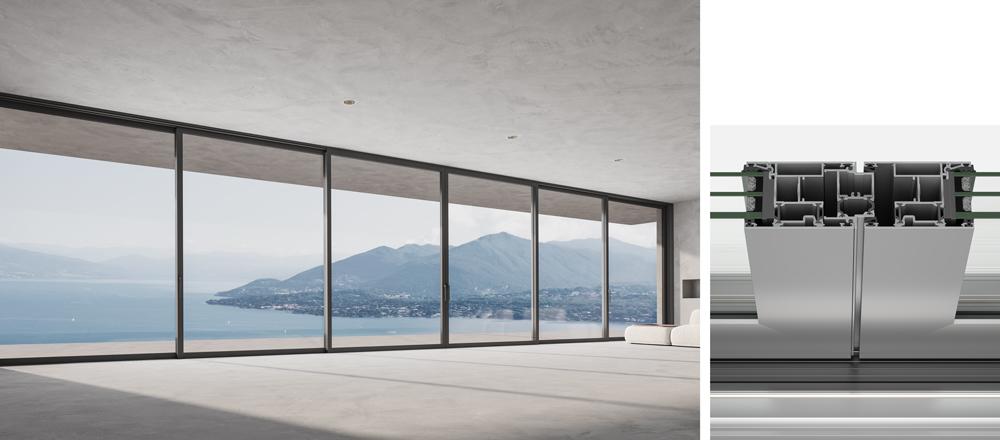

6-Sash meeting stile with fixed parts

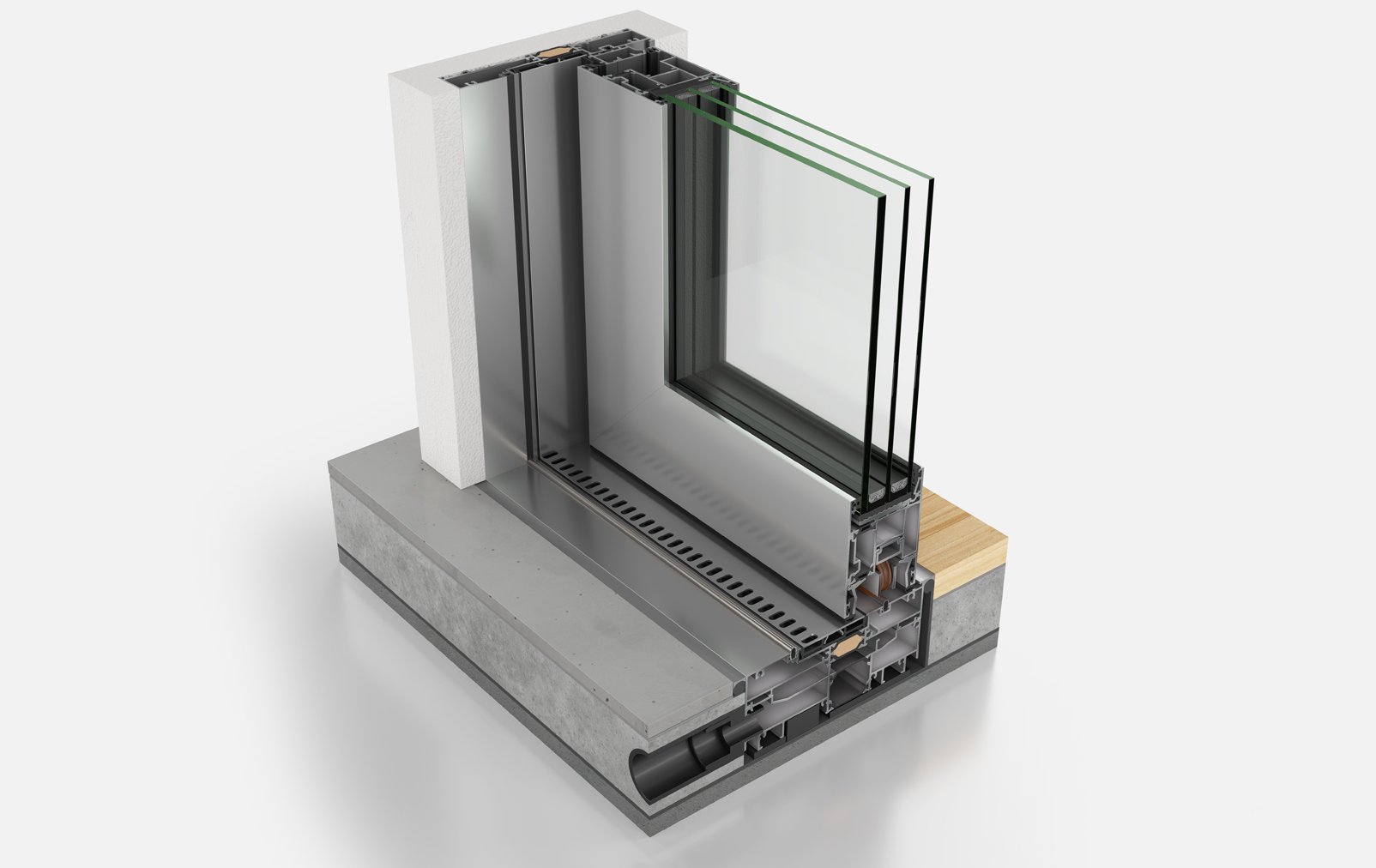

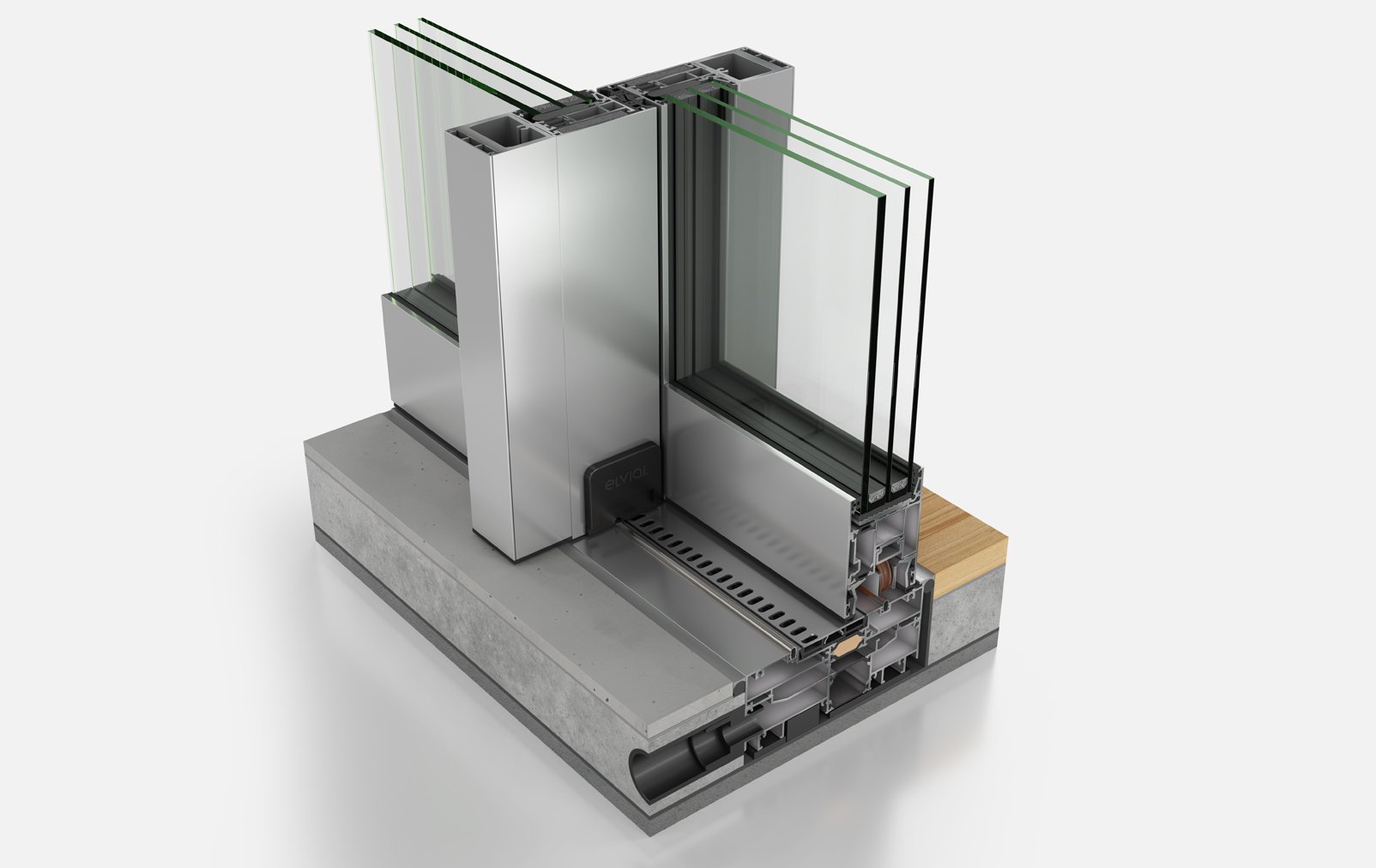

THE TECHNOLOGY
We have created this system so its performance vies with its quality. At the end of the day you are the winner, though!
THE TECHNOLOGY
THE TECHNOLOGY
THERMAL INSULATION
Design creates what you see but some invisible qualities also. In this case; the performance of the system in thermal insulation and energy saving.
UP TO 28MM INSULATING BARS

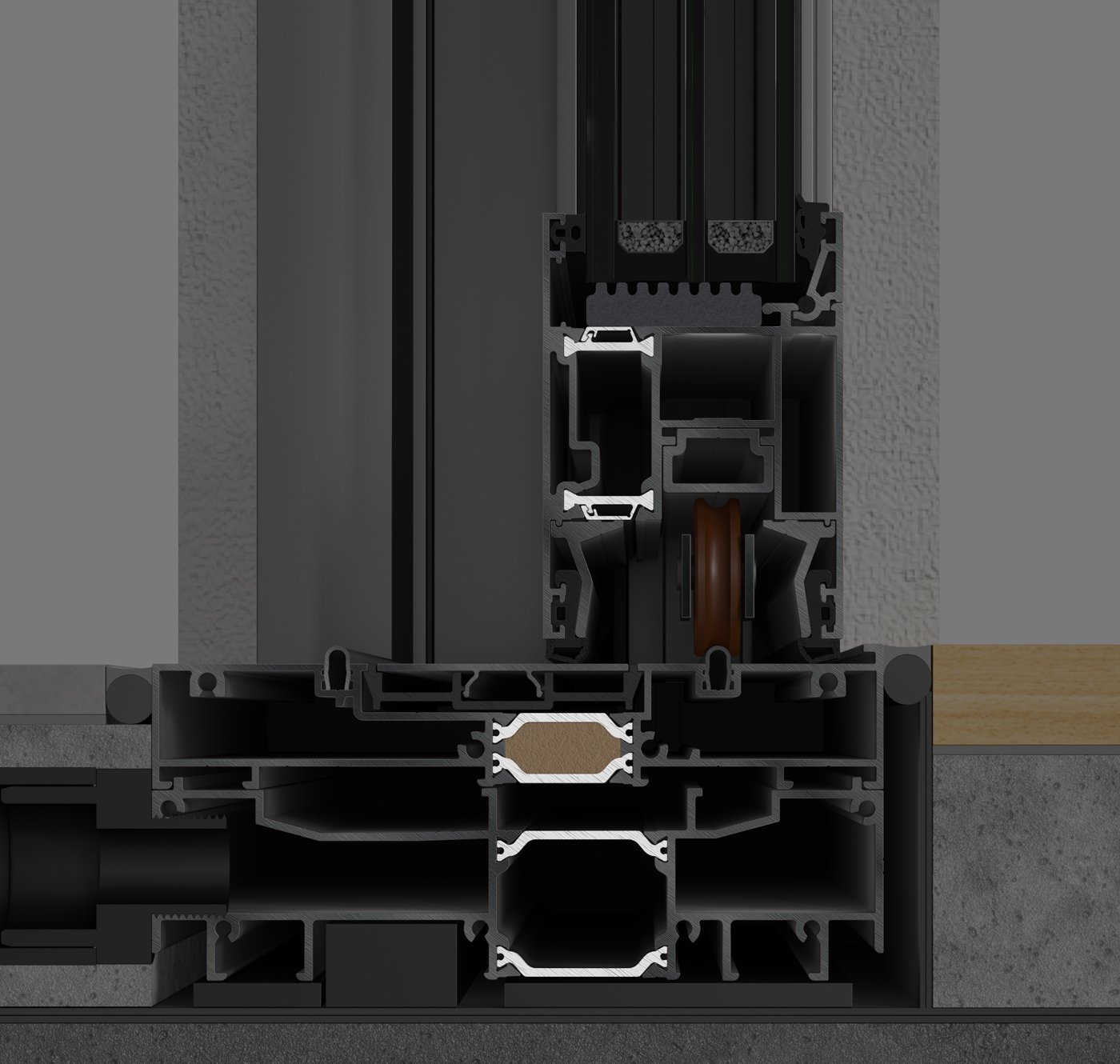

CUSTOMIZED INSULATING BARS
ELVIAL I² INNOVATIVE INSULATION TECHNOLOGY
FOAM INSULATING PROFILE

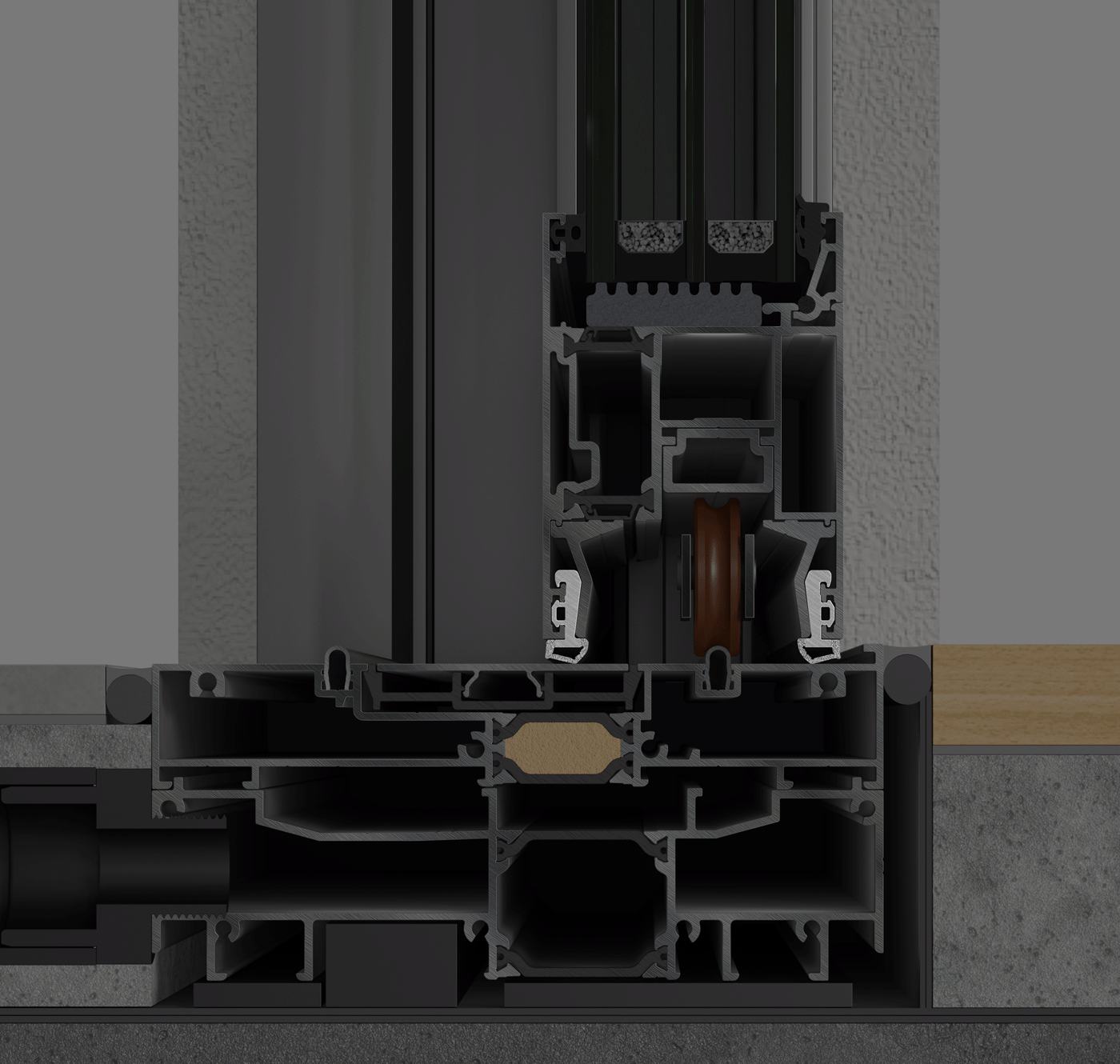

CO-EXTRUDED GASKETS
EXPANDED POLYSTYRENE
Insulating bars with 25% glass reinforcement of 28mm in tracks (unique in its category) and 18mm in sashes are applied, offering high thermal insulation levels and extra rigidity.
Enhanced customized insulation bars are set both in the central zone and the middle mullion. The system fully meets the high energy efficiency requirements for each project.

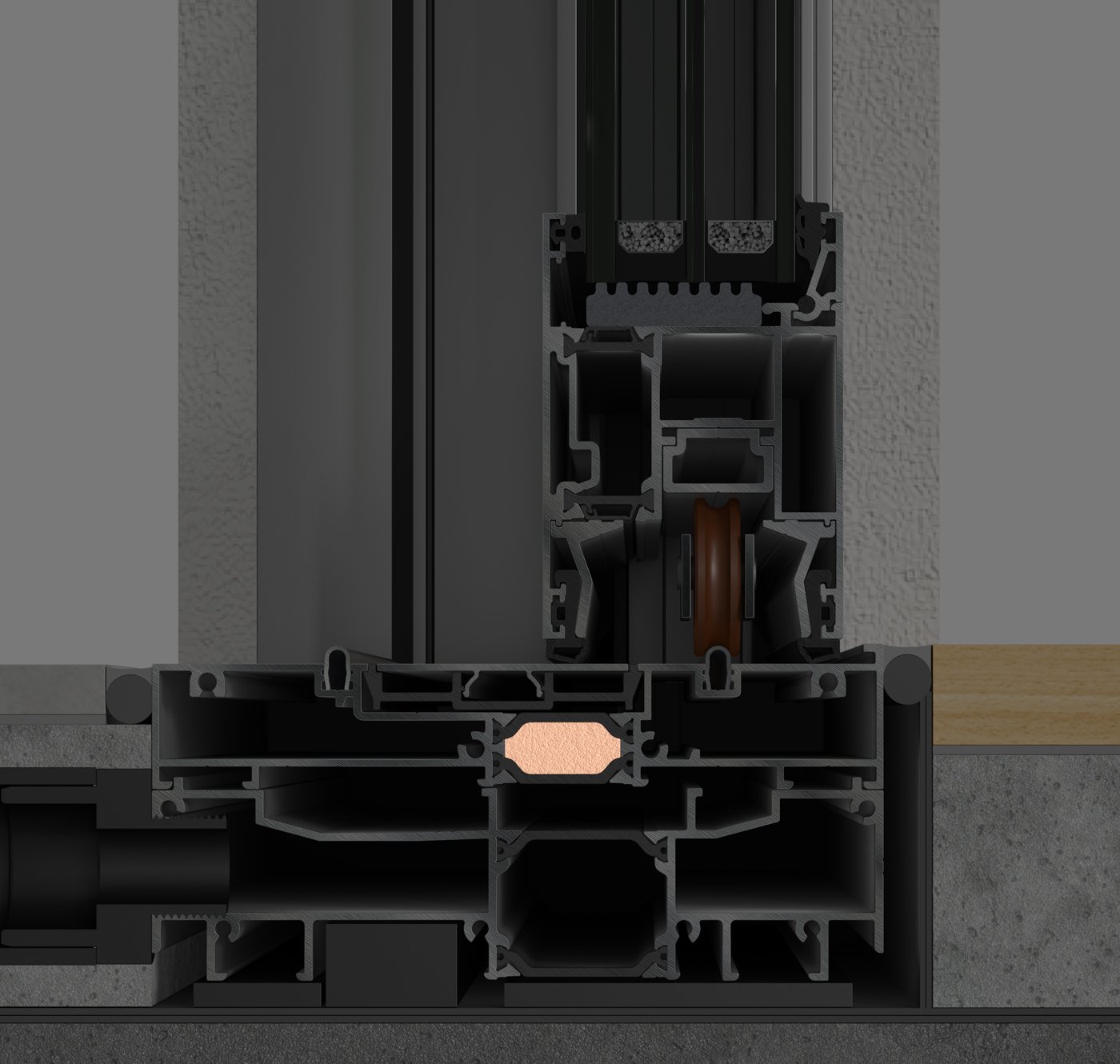

The Innovation, ELVIAL I² Technology, is applied on all system's tracks. This way, an extra insulation zone is created in the middle chamber of the profile, boosting the system's energy performance [Uf] by up to 38%. Learn more about ELVIAL I² Innovation.

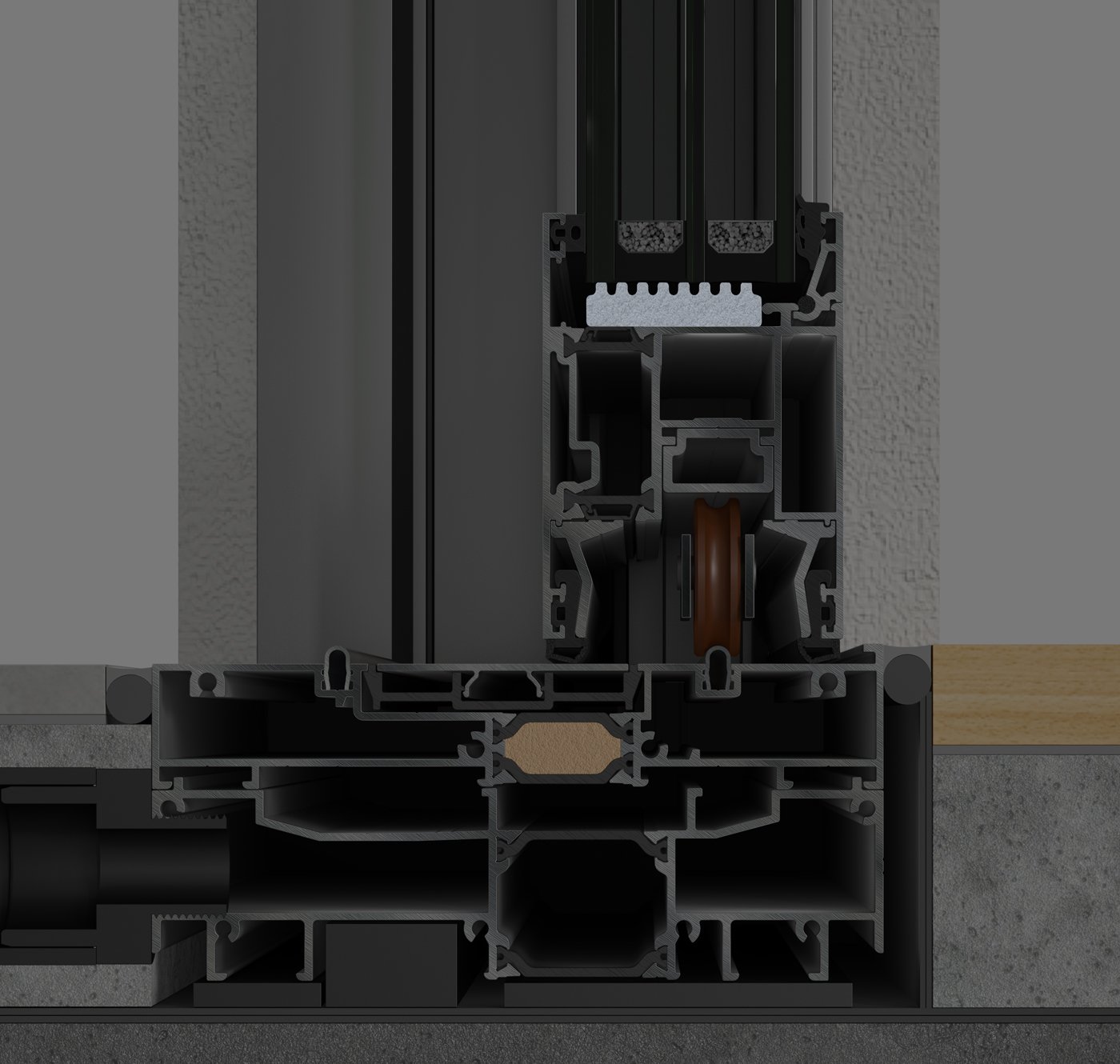

Α foam insulating profile (LDPE) is fitted at the perimeter of the glazing zone, minimizing thermal energy loss.
Co-extruded gasket on the bottom part of sashes, sealing the track and the adjoining profile for angular constructions.

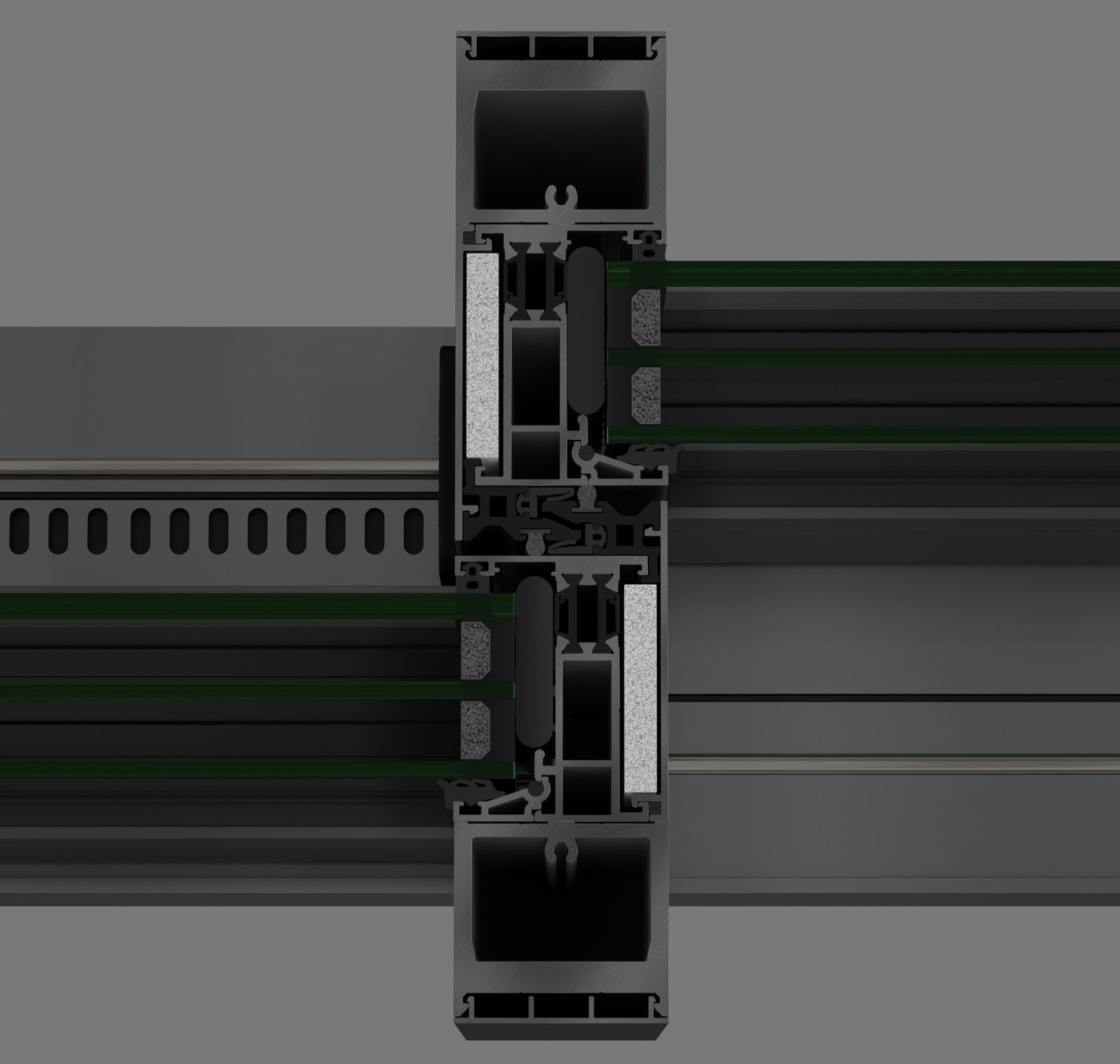

Expanded polystyrene is set between the interlocking profile and the bottom part of the sashes in the middle mullion improving significantly the energy performance.
ΤΗΕ ADVANCED SEALING SYSTEM
Α hot cup of tea, a good book and the certainty that your space is totally protected by a watertight aluminium system. Who said you can't enjoy a rainy day?
OPTIMIZED WATERTIGHTNESS
OPTIMAL 2-LEVEL WATERPROOFING
EPDM GASKET CORNERS
A HOLISTIC APPROACH TO PERFORMANCE
WATERTIGHT AND SUPER CLEAN
DETAIL THAT MAKES THE DIFFERENCE
DESIGN AND FUNCTIONALITY
BUILT IN DRAINAGE SYSTEM
Q-LON in the successive area insulating bars, even in the narrow mullion width edition.
Specially designed gaskets that apply effectively in 2 points in the successive area.
Sealing with EPDM gaskets and vulcanized gasket corners, guaranteeing a high level perimetrical waterproofing of the sash with the track.
Elastometric central sealants of excellent design, which fit perfectly on the surface of the aluminum, giving a high sealing performance.
Perimetrical socket channel for the glazing bead, with an elevation difference from the outer side of the sash, which prevents water entrapment.
One way valve, which does not allow water to return from the track’s chambers due to air pressure.
Drilled profile of unparalleled aesthetics that acts as a rack & fully covers the drainage holes in the track.
Track’s external drainage coverage system (profile & accessory) that functionally & aesthetically upgrades the construction.
DURABILITY FOR A LIFETIME
Our approach to the design and manufacturing of your system is holistic. This means that each component is chosen and applied to keep your system working smoothly for many many years to come.
SUPPORT FOR GLAZING LOAD TRANSFER
SMOOTHER ROLLING
EFFICIENT PROTECTION
QUALITY IN MANUFACTURING
MAXIMUM STRENGTH
For all the SL60 HI² system editions we developed special glazing load transfer support. This support transfers the glazing weight to the center of the sash, where the rollers of the mechanism are mounted. In this way, the flawless operation of the structure is ensured for a lifetime regardless of the glazing weight.
Stainless steel rail with improved design & reinforced thickness, which ensures the impeccable functionality of the construction even at demanding glazing loads.
New generation joint corners with side caps, in all moving parts, which lead the two-component glue along the joint point and completely cover the chambers.
Mechanical alignment corners with a rotary restraint mechanism are applied to all the sashes, resulting in optimal assembly at all corners of the sash.
There are various reinforcements available in this system designed to match the wind pressure requirement you will prescribe.
The Identity
Design
The performance
Sash Depth
60mm
Visible Height
Standard Edition
sash 95mm
sash 85mm
125mm
115mm
Visible Height
Infloor Edition
sash 95mm
sash 85mm
95mm
85mm
Middle Mullion Width
Successive
sash 95mm
sash 85mm
sash 43mm
105mm
95mm
48mm
Meeting Stile Construction Width
Meeting Stile
sash 95mm
sash 85mm
198mm
178mm
Properties
Max Sash Height
3500mm
Max Sash Width
3000mm
Max Sash Weight
440kg
Max Glass Thickness
46mm
Uf Value (≥)
2.8 W/m²K
Uw Value (=)
1.04 W/m²K
Air Permeability
Class 4
Water Tightness
7A
Wind Load Resistance
B3
The typologies
SUCCESSIVE
MEETING STILE
2-Sash
2-Sash with fixed part
2-Sash with flyscreen
2-Sash with fixed part and flyscreen
3-Sash
3-Sash with fixed part
2-Sash angular - Inner angle
2-Sash angular - Outer angle
2-Sash angular with fixed parts - Inner angle
2-Sash angular with fixed parts - Outer angle
2-Sash angular with flyscreen - Inner angle
2-Sash angular with flyscreen - Outer angle
2-Sash angular with fixed parts and flyscreen - Inner angle
2-Sash angular with fixed parts and flyscreen - Outer angle
3-Sash angular - Inner angle
3-Sash angular - Outer angle
3-Sash angular with fixed parts - Inner angle
3-Sash angular with fixed parts - Outer angle
4-Sash meeting stile
4-Sash meeting stile with flyscreen
4-Sash meeting stile with fixed parts
4-Sash meeting stile with fixed parts and flyscreen
6-Sash meeting stile with fixed parts
