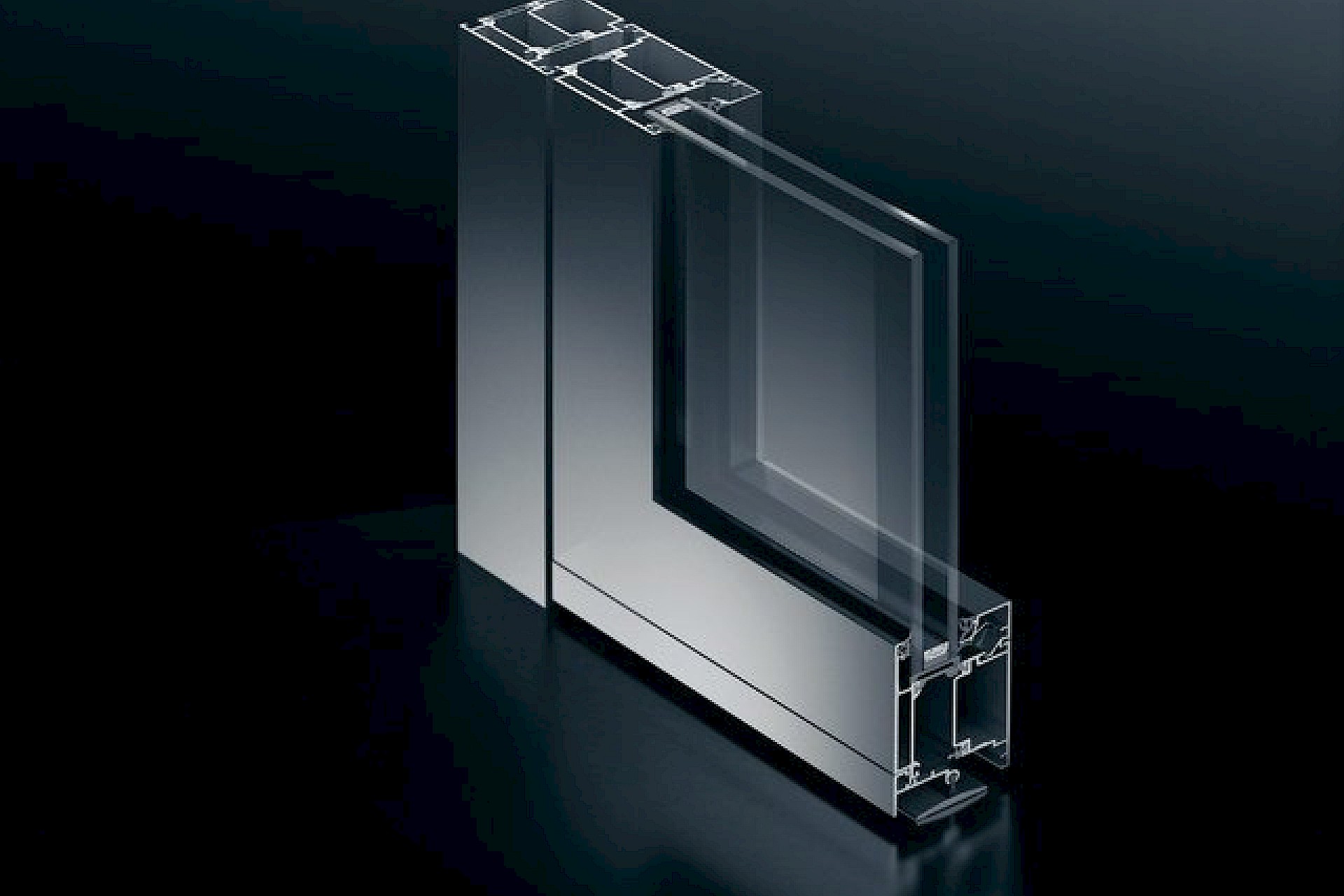

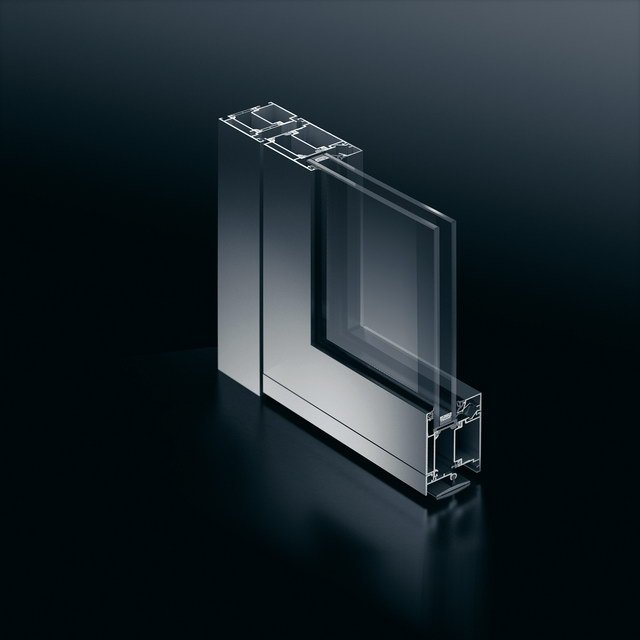

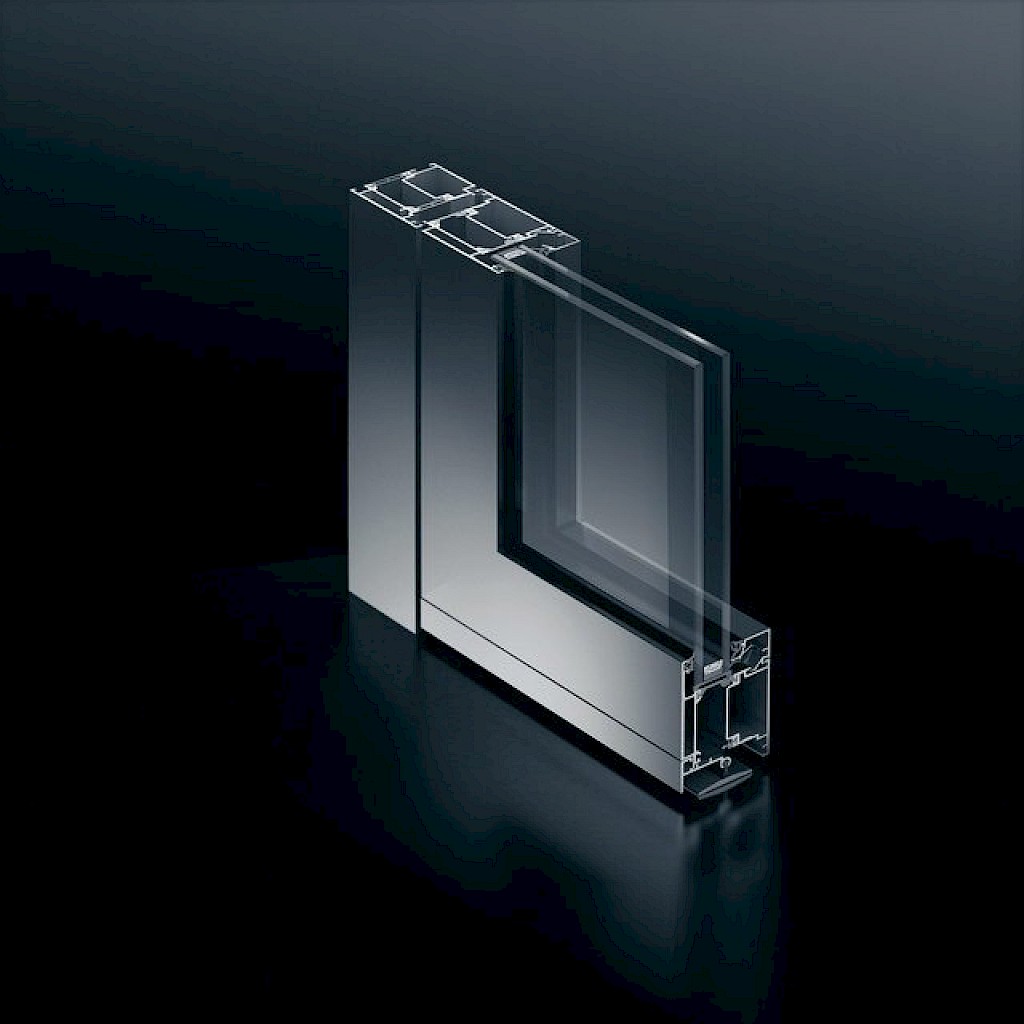

SCHÜCO ADS 65 HD

High insulation thermal break exterior door system, with total face width of 144mm.

Its unique thermal-insulation, soundproofing and burglar-resistance features are complemented by the excellent burglar resistance ensured by the SCHÜCO five-point inox lock. The door’s functionality can be upgraded via compatible additions, such as hidden hinges, panic exit tools, panic exit button, wireless access control, coplanar rosettes and multiple combining applications.

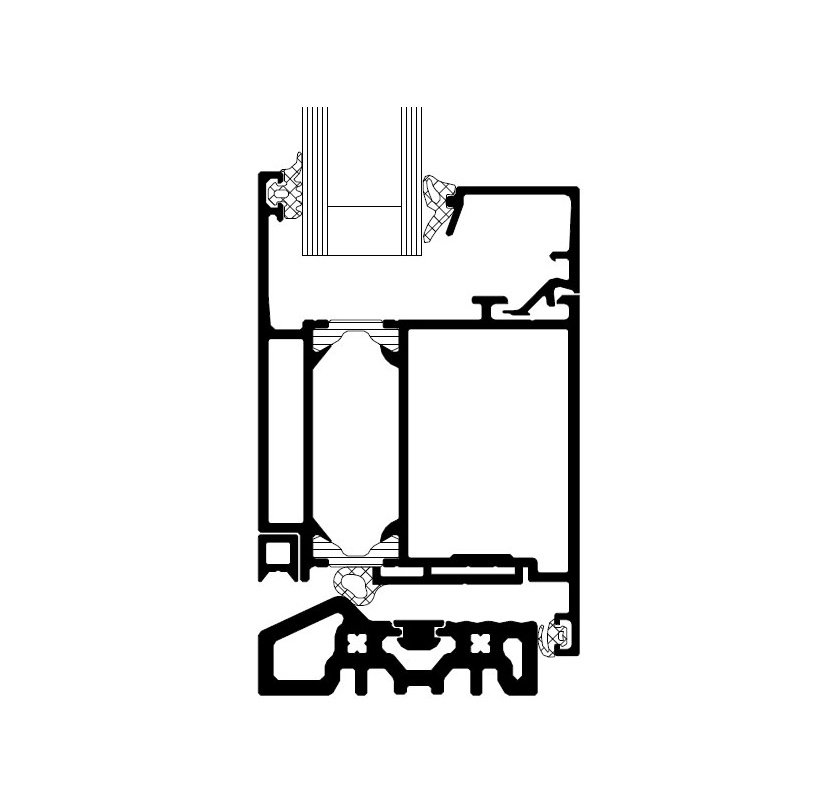

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 65 mm

Frame face width: 69 mm

Maximum glass thickness: 24-55 mm mm

Sheet profile depth: 65 mm

Sheet face width: 95 mm

Triple glass pane option

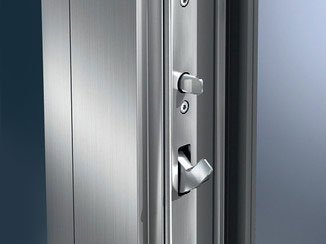

Mechanism: SCHÜCO five-point inox lock mechanism

Cylindrical regulated hinges in three dimensions

EPDM sealing gaskets

Profiles have straight form

Optional features::

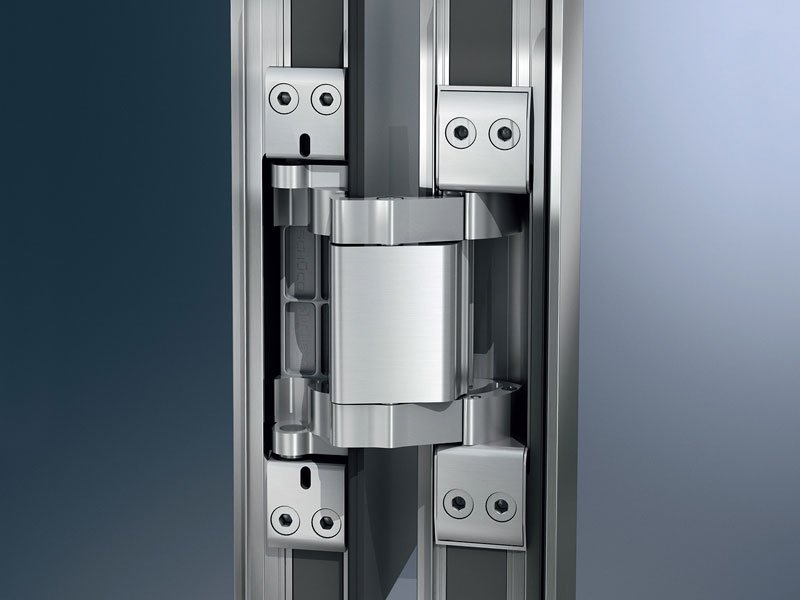

Hidden hinges, 110ο-180ο opening

Panic exit tools

Panic exit button

Access control

Wireless control

Coplanar rosettes

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal Insulation: Uf  2.3 W/m2K in accordance with DIN EN ISO 10077-2

Soundproofing up to Rw=40 in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 2

Water permeability in accordance with DIN EN 12208 Class: 4Α/5Α

Wind pressure resistance in accordance with DIN EN 12210 Class: C2 / C3

Mechanical strength in accordance with DIN EN 13115 Class: 3

Functionality over time in accordance with DIN EN 12400 Class: 5
