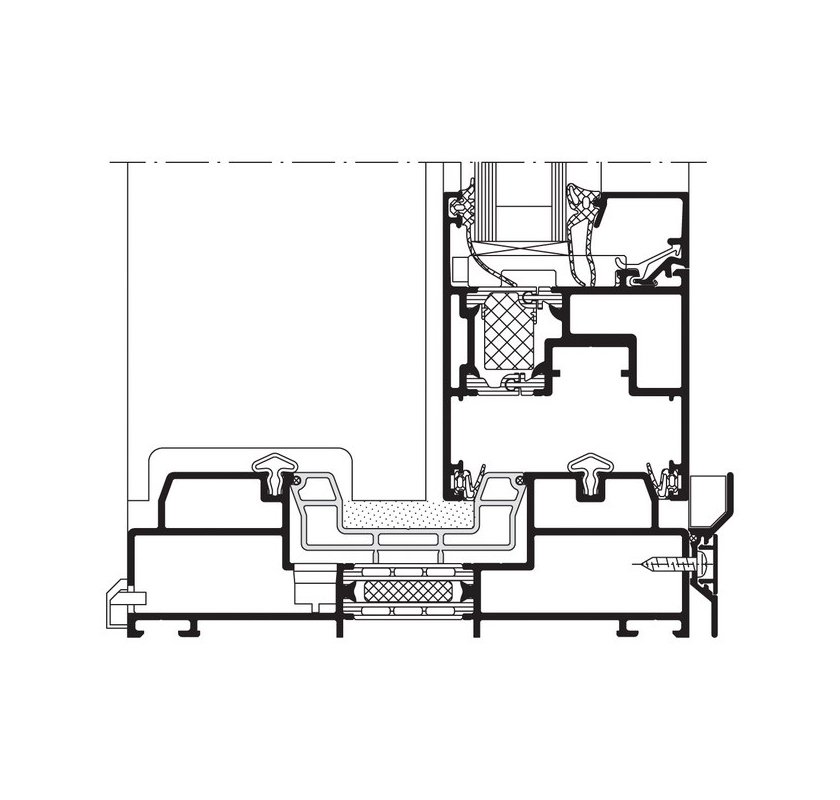

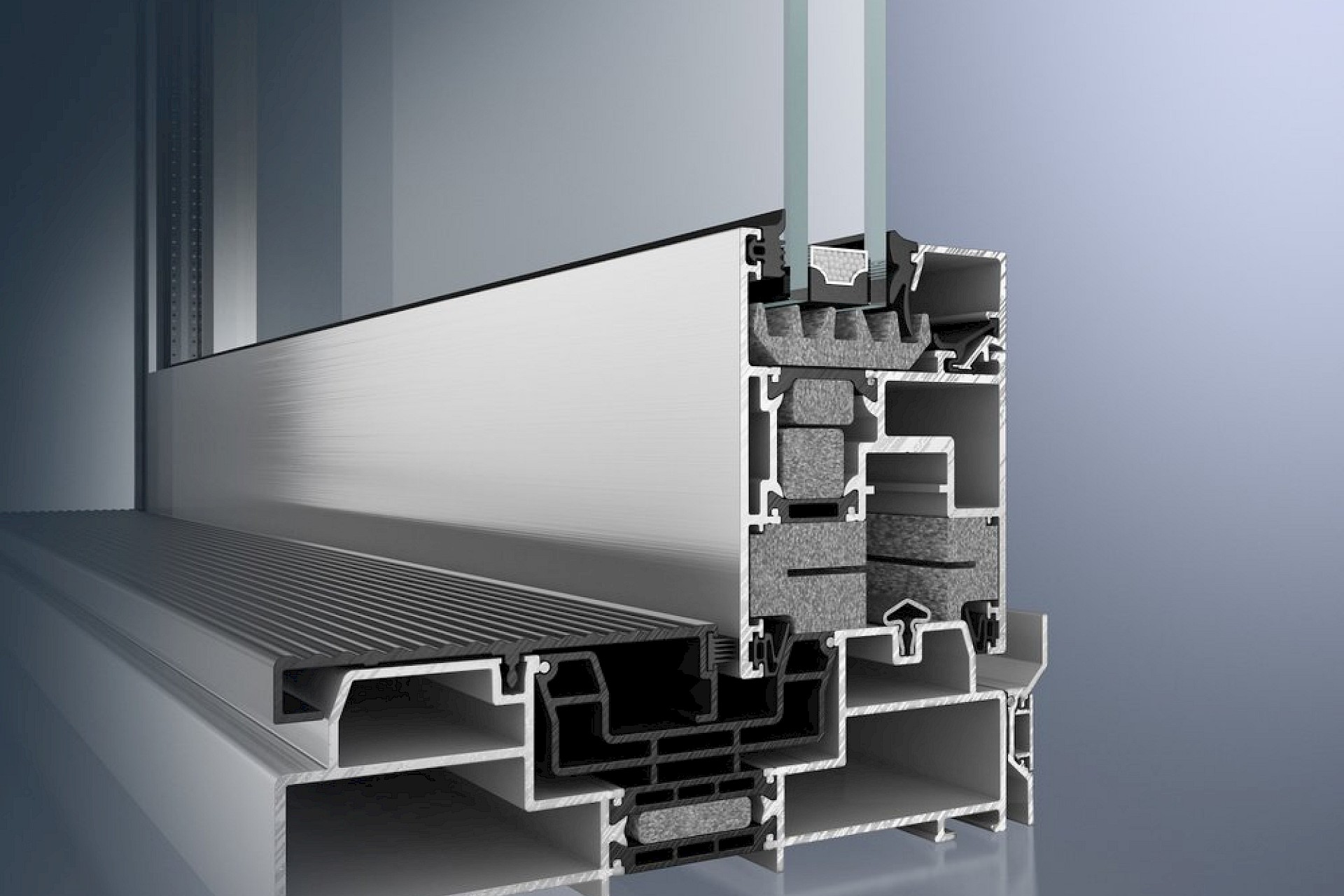

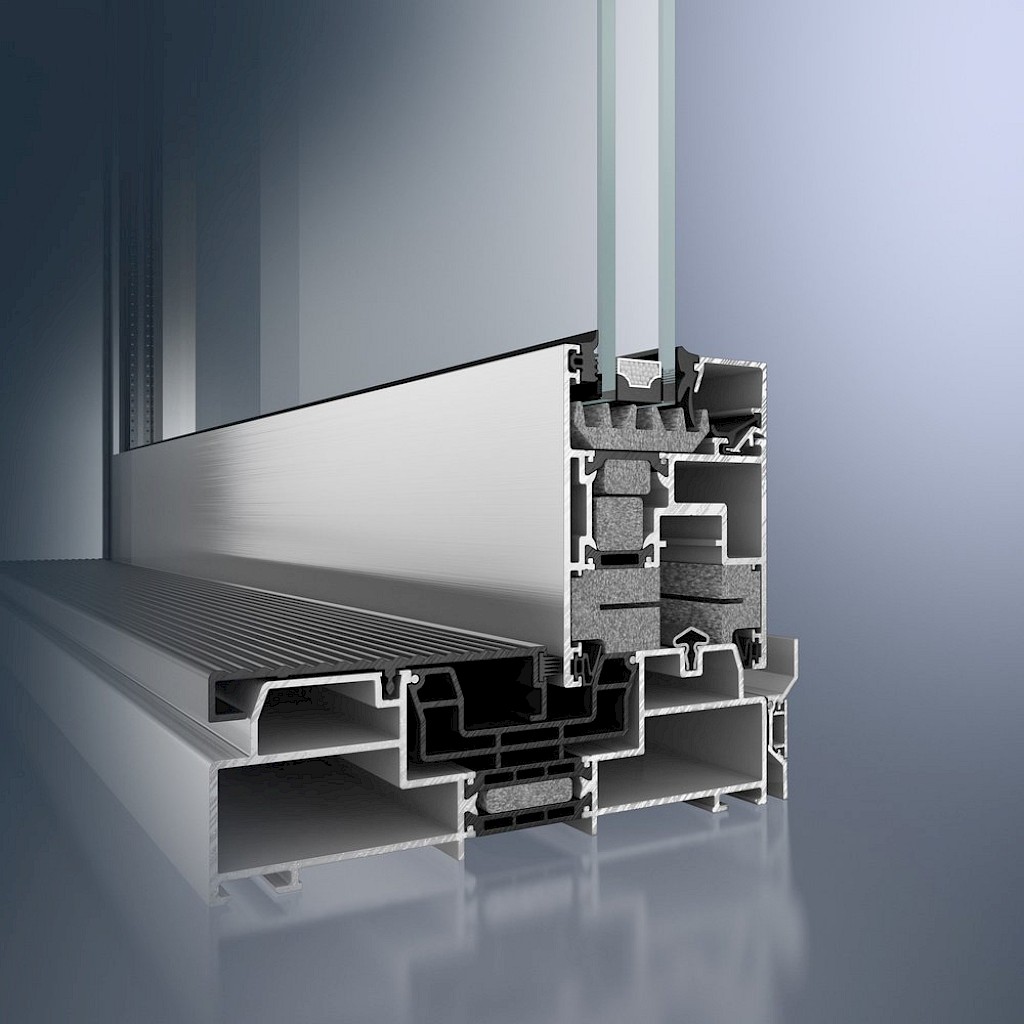

SCHÜCO ASS 70 HI

Thermal break heavy duty lifting/sliding system, with total face width of 137mm.

A flexible solution offering many configuration options, such as double or tripe guide rail and inox rolling. The list of its unique features is complemented by its excellent thermal insulation, sealing, soundproofing and burglar-resistance performance.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 160 mm

Frame face width: 50 mm

Maximum glass thickness: 12-52 mm

Sheet profile depth: 70 mm

Sheet face width: 98 mm

Double and triple glass pane option

Mechanism: 300kg lifting mechanism (up to 400kg option)

EPDM sealing gaskets

Profiles have straight form

Thin-section frame to perimeter frame

Many configuration options, choice between double or tripe guide rail and inox rolling

Charge groups in accordance with DIN EN 12207/12208/12210
