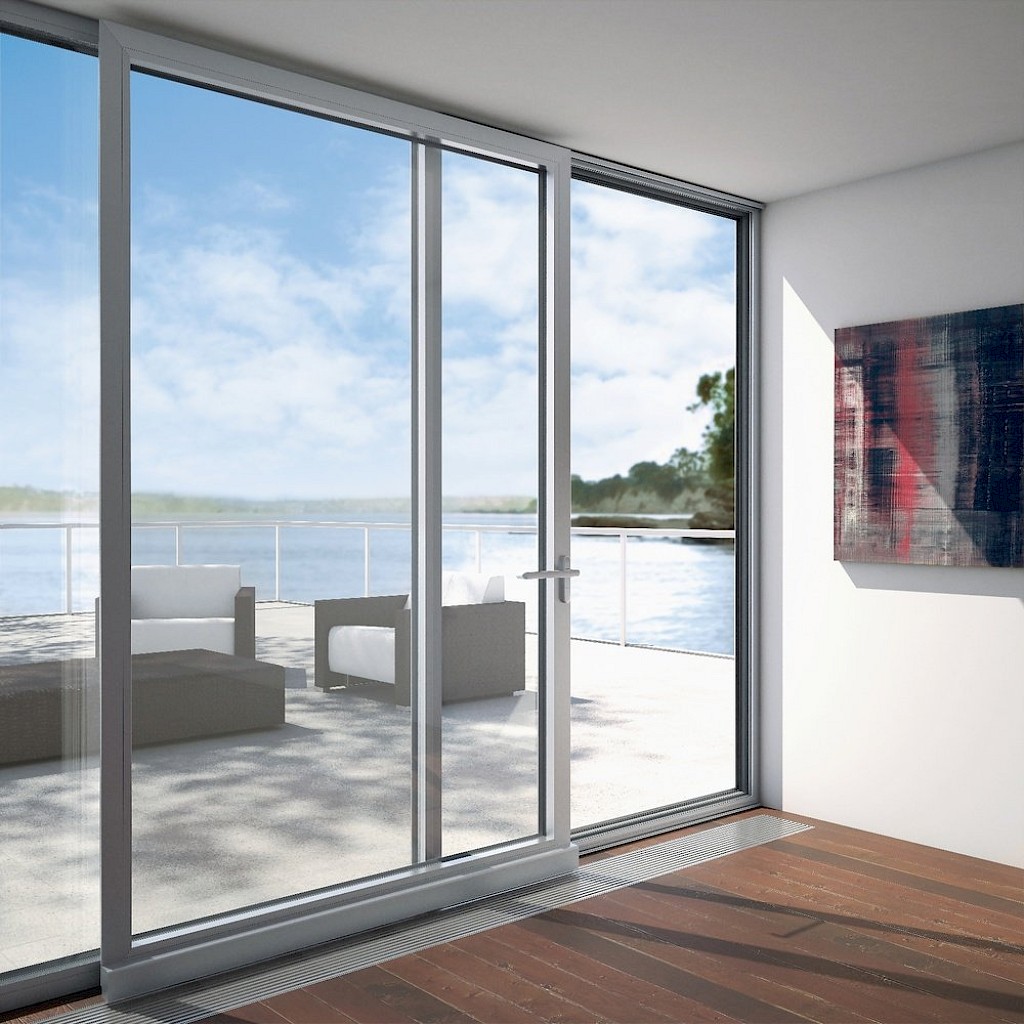

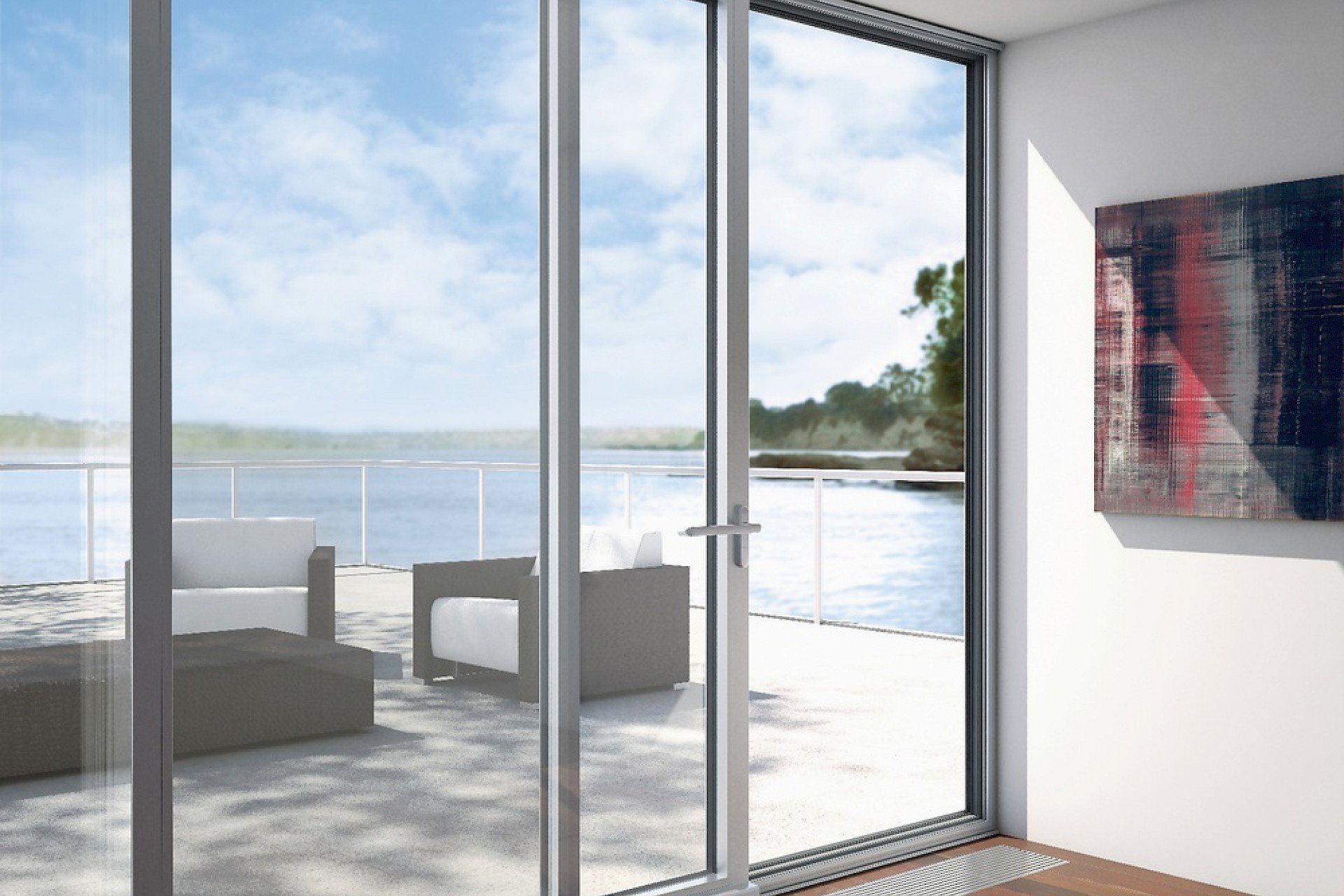

SCHÜCO AWS 65 PASK

High insulation thermal break lift/sliding system window system, with total face width of 117 mm.

Excellent practicality combining sliding opening and hung position; the list of its unique features is complemented by its excellent thermal insulation, sealing, soundproofing and burglar-resistance performance.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 65 mm

Frame face width: 69 mm

Maximum glass thickness: 4-45mm casement 11-55mm sheet mm

Sheet profile depth: 75 mm

Sheet face width: 78 mm

Mechanism: 150kg SCHÜCO opening-hanging/sliding mechanism

EPDM sealing gaskets

Profiles have straight form

Compatible with Schüco ADS 65 doors series

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal Insulation: Uw 2,0 W/ m2Kfor the lifting system

Soundproofing up to Rw=40dB in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 9A

Wind pressure resistance in accordance with DIN EN 12210: Class: C4 / B4

Mechanical strength in accordance with DIN EN 13115 Class: 4

Functionality over time in accordance with DIN EN 12400 Class: 2
