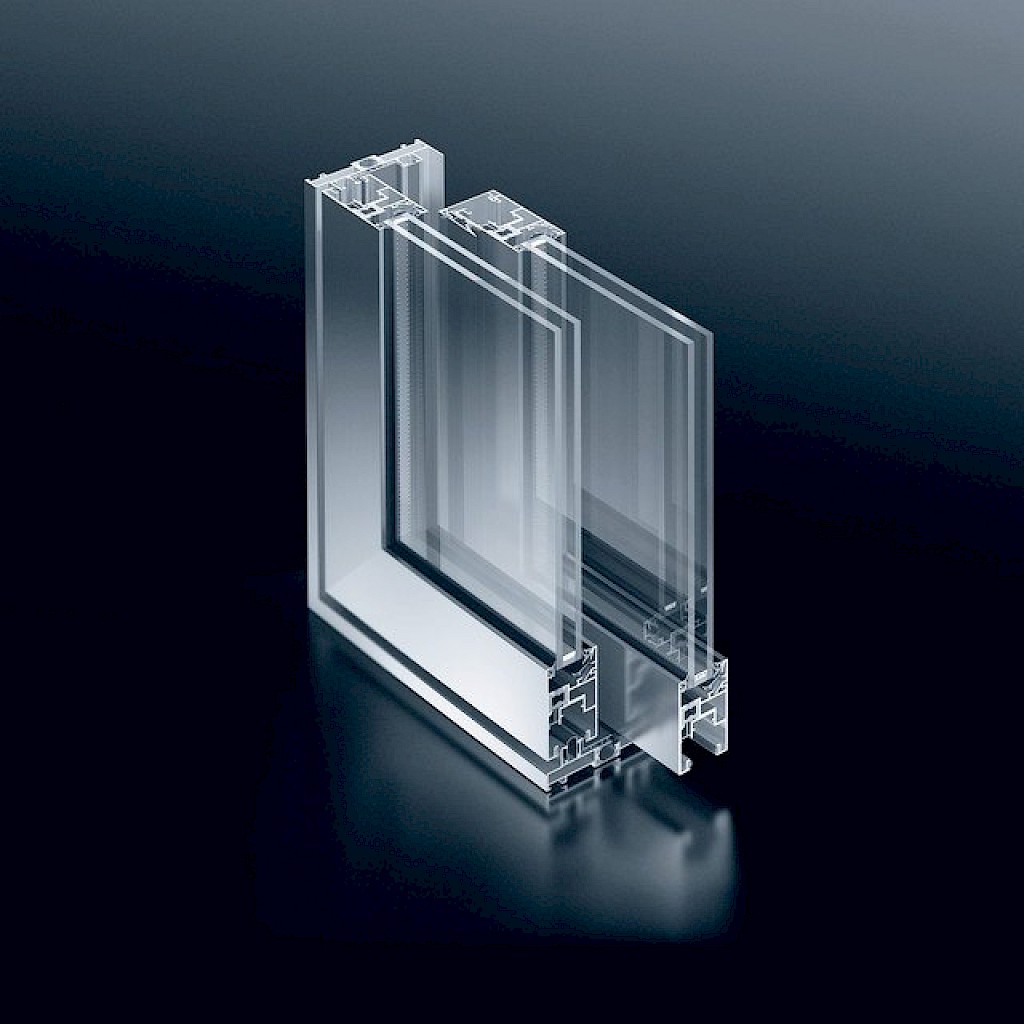

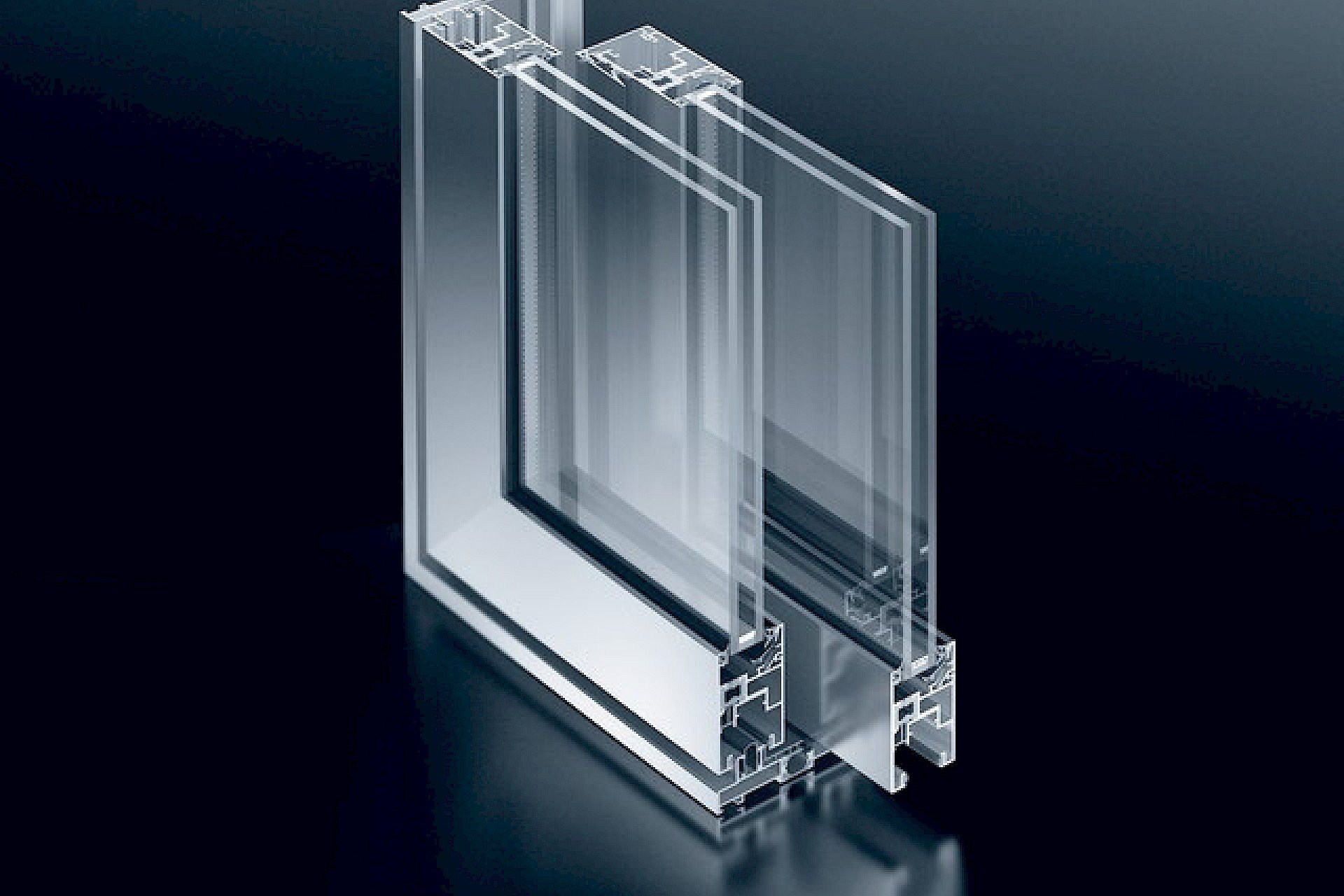

SCHÜCO ASS 50

Thermal break sliding French door system, with total face width 112mm, with sheet 150kg, and sheet 300kg with face width 124mm.

A flexible solution offering many configuration options, such as double, triple or quadruple guide rail and INOX rolling.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 120 mm

Frame face width: 38 mm

Maximum glass thickness: 12-32 mm

Sheet profile depth: 50 mm

Sheet face width: 84mm at 150kg - 96mm at 300kg

Mechanism: SCHÜCO 150kg or 300kg mechanism and basic security category

Brush sealing

Profiles have straight form

Thin-section frame to perimeter frame

Many configuration options, choice among single, double or tripe guide rail and inox rolling

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal Insulation: Uf 4,5 W/ m2K for the lifting system

Soundproofing up to Rw=40 in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 7A

Wind pressure resistance in accordance with DIN EN 12210: Class: C2 / B3

Mechanical strength in accordance with DIN EN 13115 Class: 4

Functionality over time in accordance with DIN EN 12400 Class: 2
