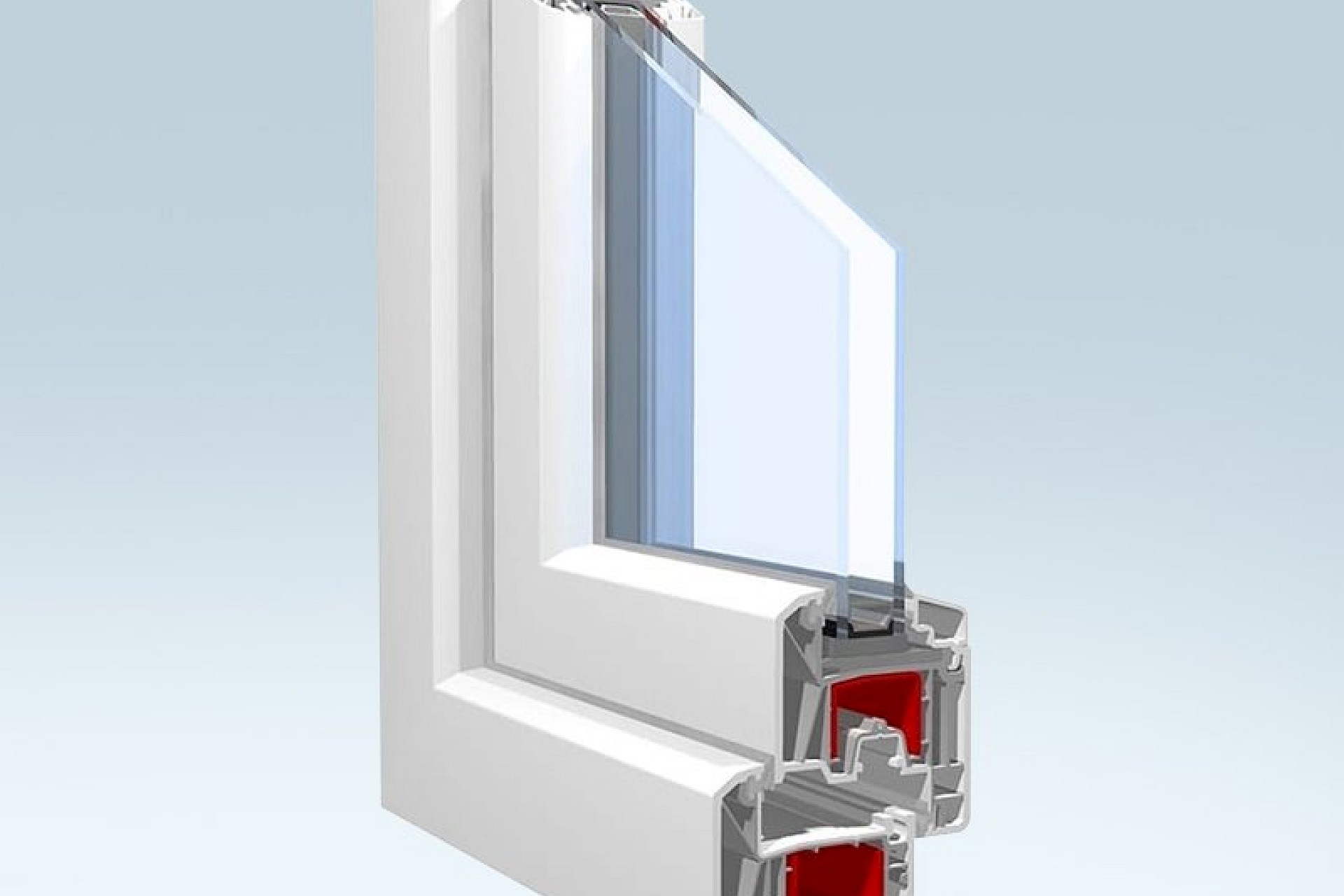

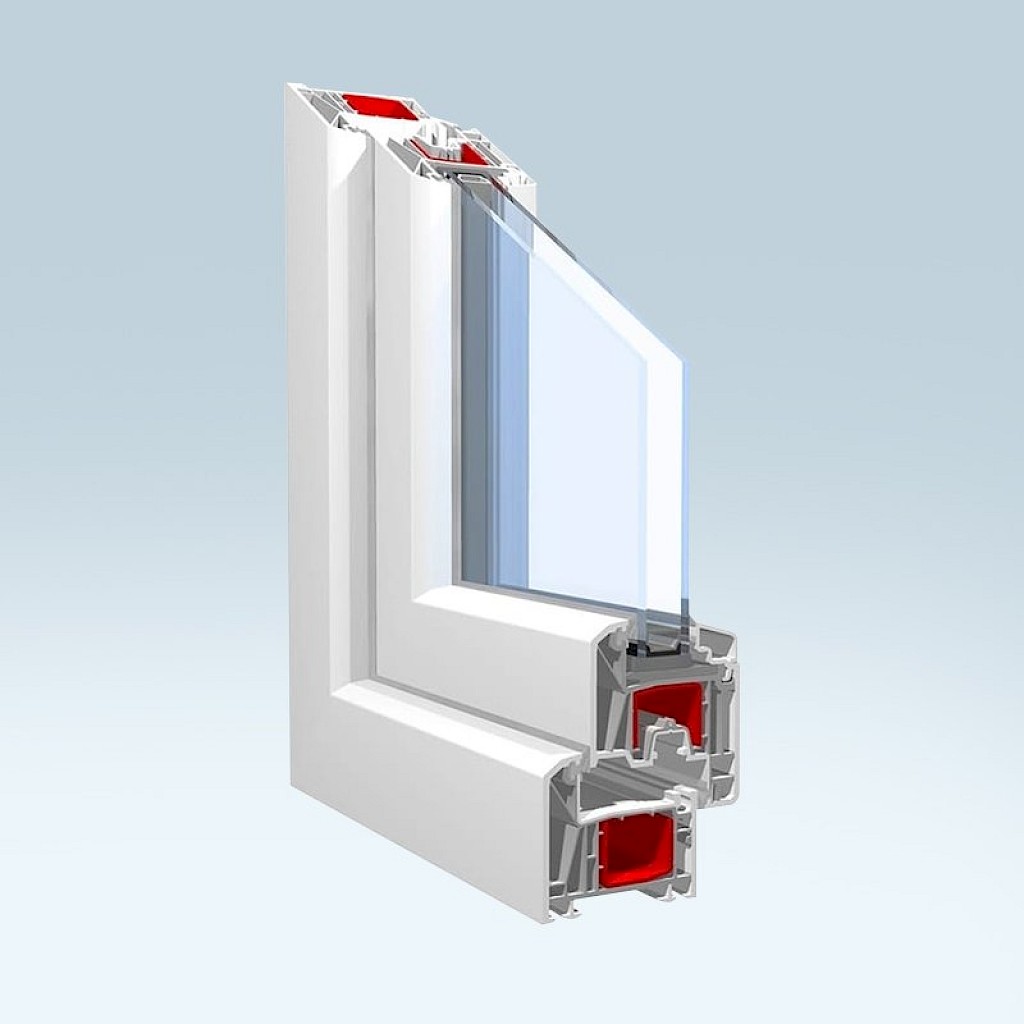

KBE 70 ECONOMY

Window systems for excellent thermal insulation, basic face width of 70 mm.
The PVC French door system KBE 70 Economy is an eco-friendly, yet economic solution, without compromising at all the quality and credibility of the final product. The excellent thermal insulating and soundproofing features are combined with the great burglar-resistance performance and durability. The casement comes in various colours so that it can be perfectly integrated in the place where it is fitted.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 70 mm

Frame face width: 64 mm

Glass thickness: 24 mm

Sheet profile depth: 70 mm

Sheet face width: 76 mm

Sheet and casement reinforcement: thermogalvanised steel 1.5-2mm thick.

Mechanism: GU mechanism, Unijet Eurojet type (sheet width 150kg) with latches and basic security category.

Stable opening/hanging and Pask of 150kg construction option.

Integrated sealing gaskets.

100% recyclable with eco-friendly stabilisers.

Charge groups in accordance with DIN EN 12207/12208/12210.

Thermal Insulation: Uf 1,3 W/ m2K

Soundproofing up to Rw=45 db in accordance with DIN EN ISO 140-3

Burglar resistance up to RC1 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: E1500

Wind pressure resistance in accordance with DIN EN 12210: Class: C2

Mechanical strength in accordance with DIN EN 13115 Class: 4
