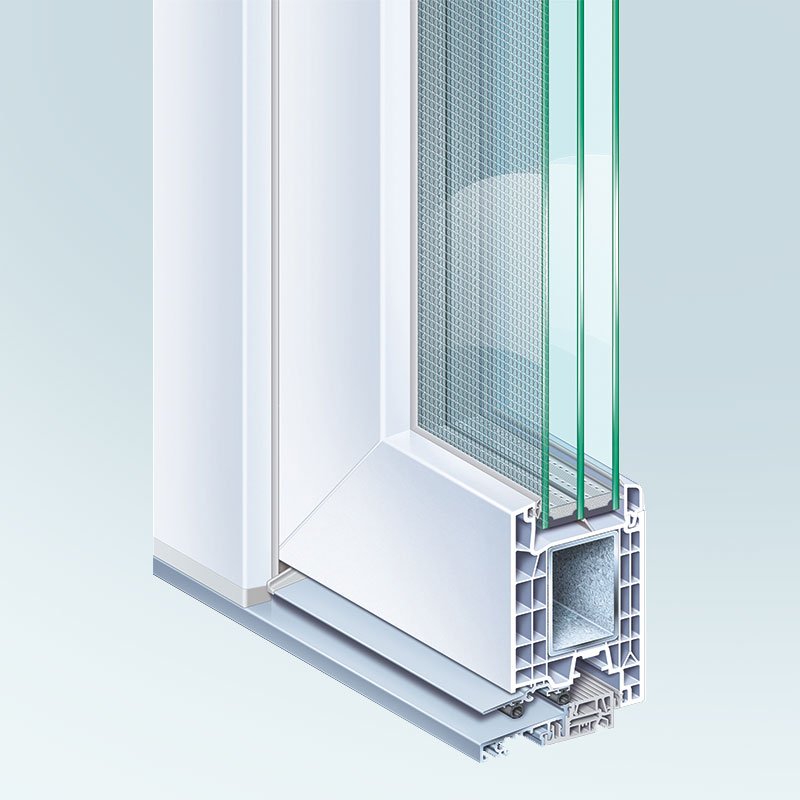

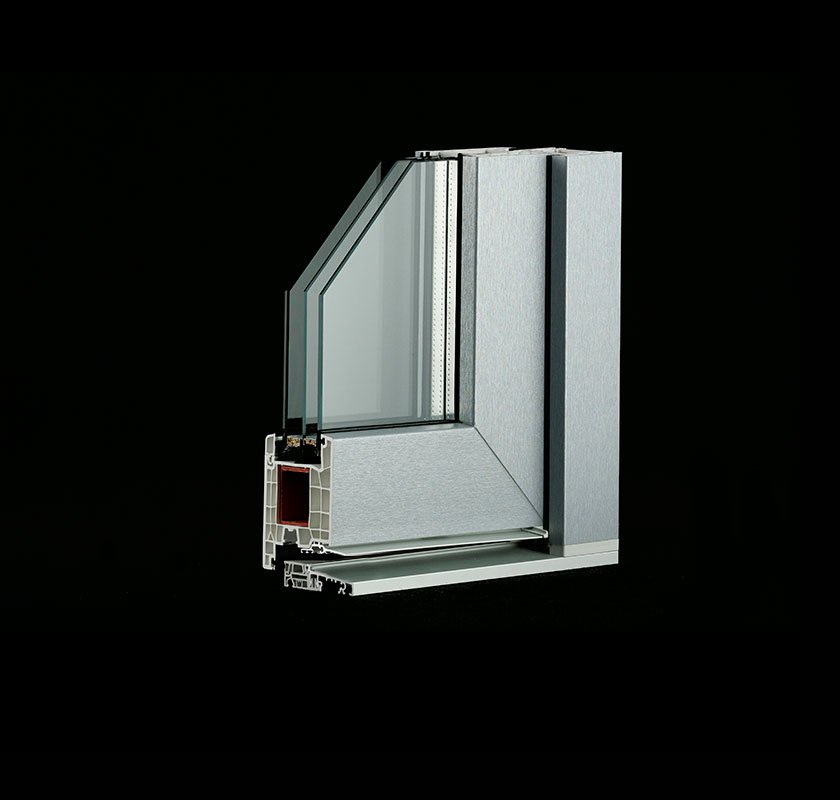

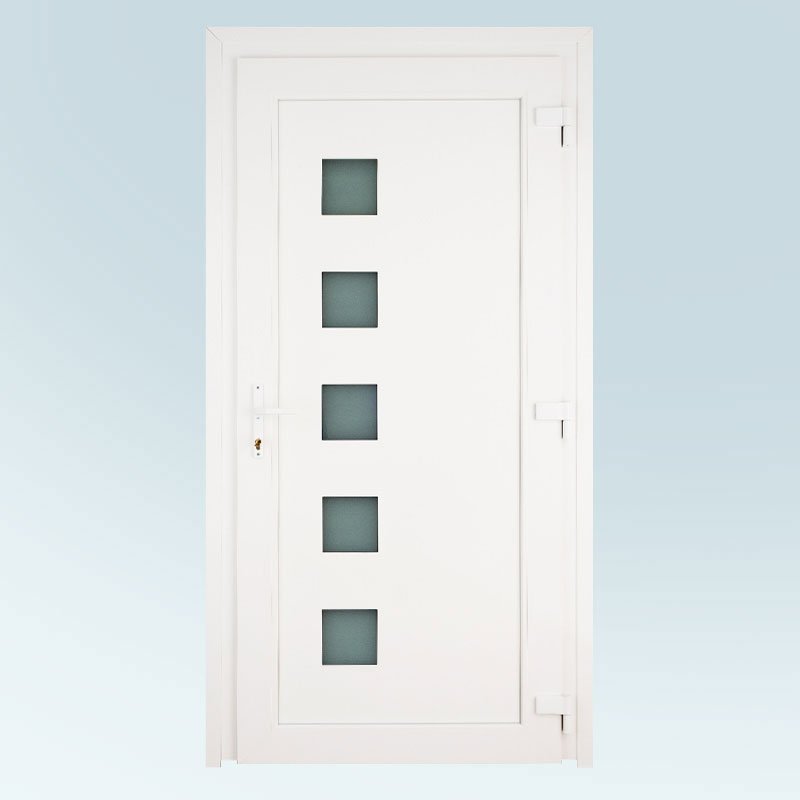

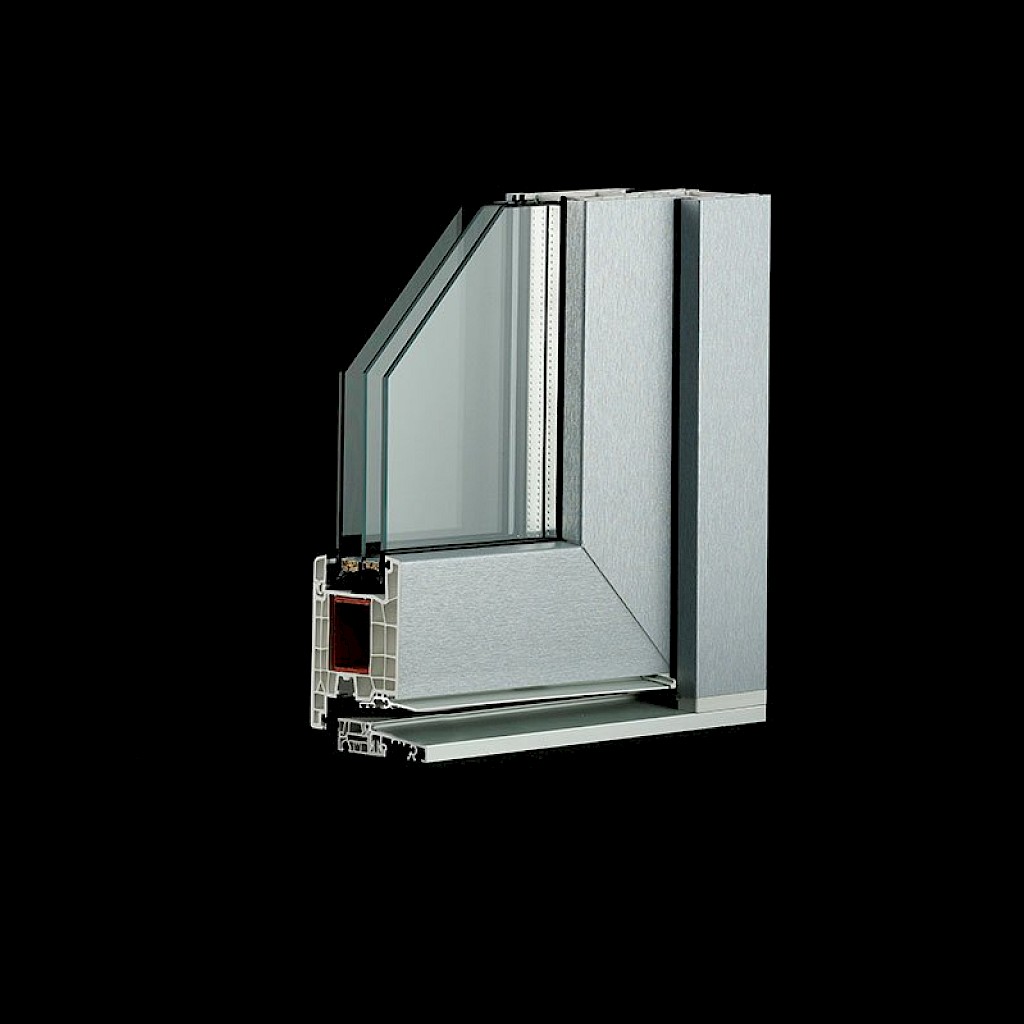

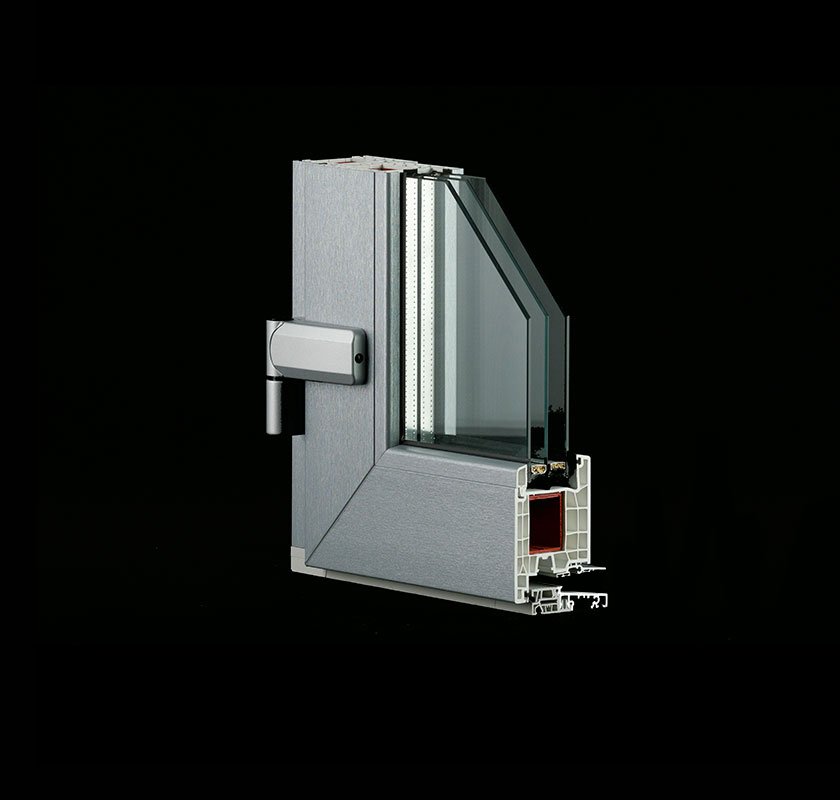

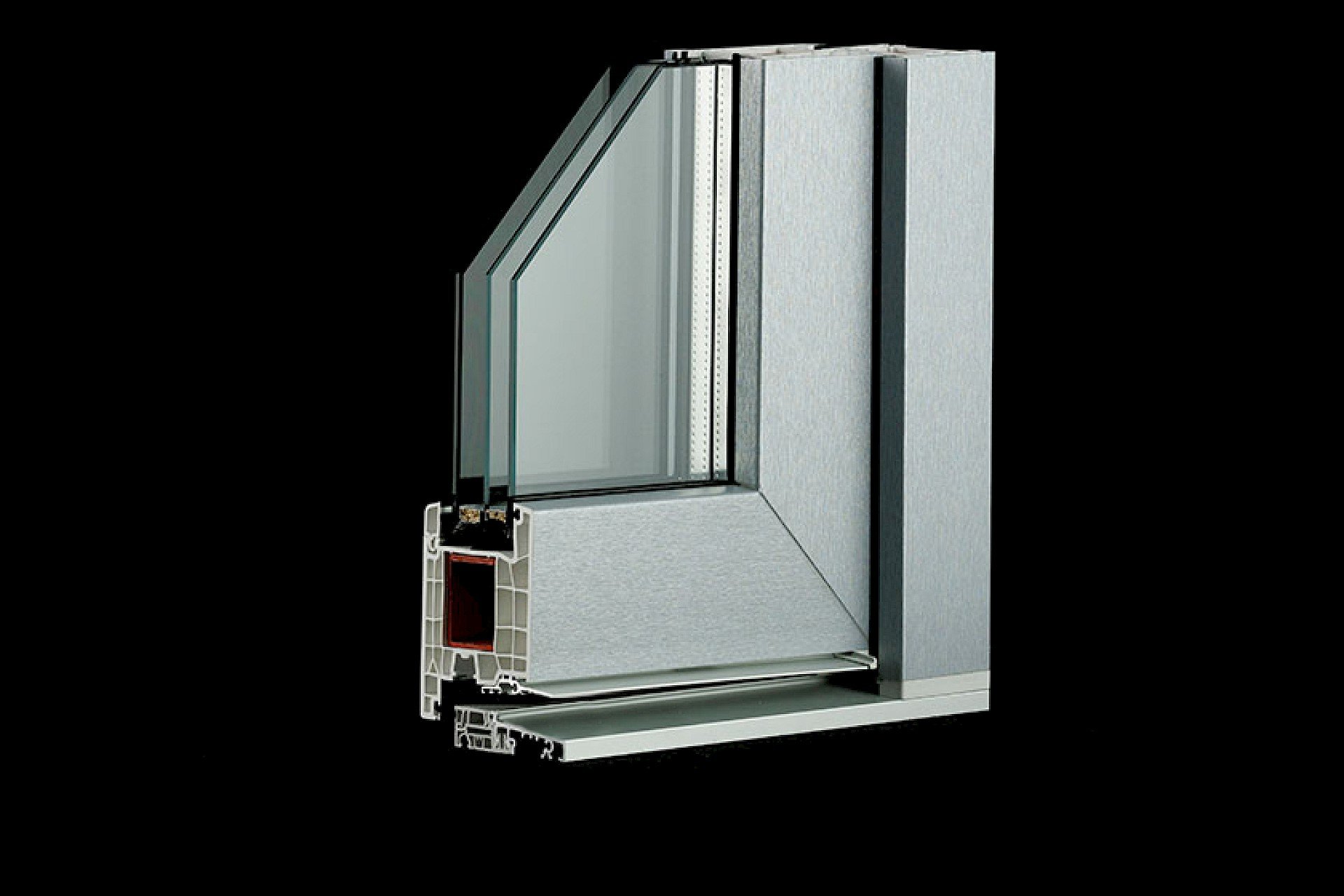

76AD RESIDENTIAL DOOR (Entrance)

High insulation door system, with total face width of 148mm.

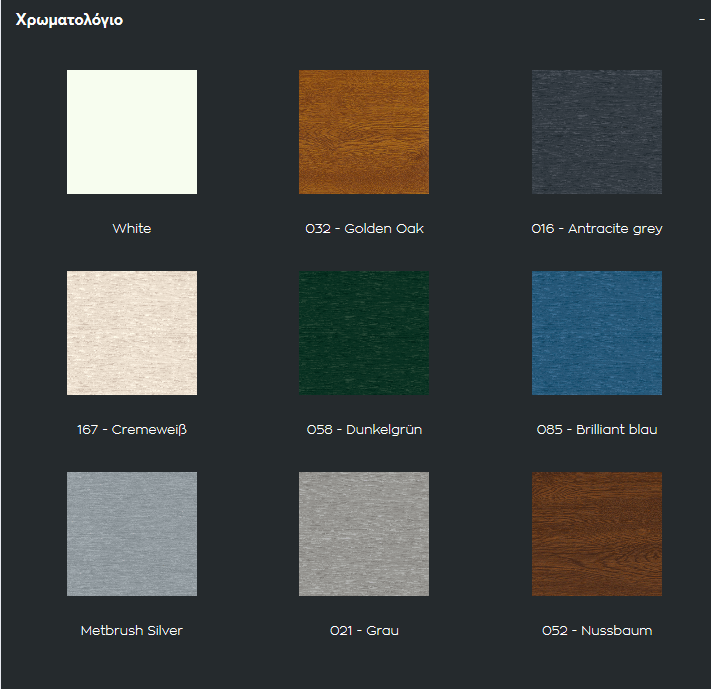

Door system KÖMMERLING 76 AD is one of the most integrated eco-friendly solutions, featuring excellent thermal-insulation, soundproofing and sealing properties, in combination with their great burglar-resistance performance and durability. The casement comes in various colours so that it can be perfectly integrated in the place where it is fitted, while the smart connection technology makes its installation highly functional and practical.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 76 mm

Frame face width: 67 mm

Maximum glass thickness: 16-48 mm

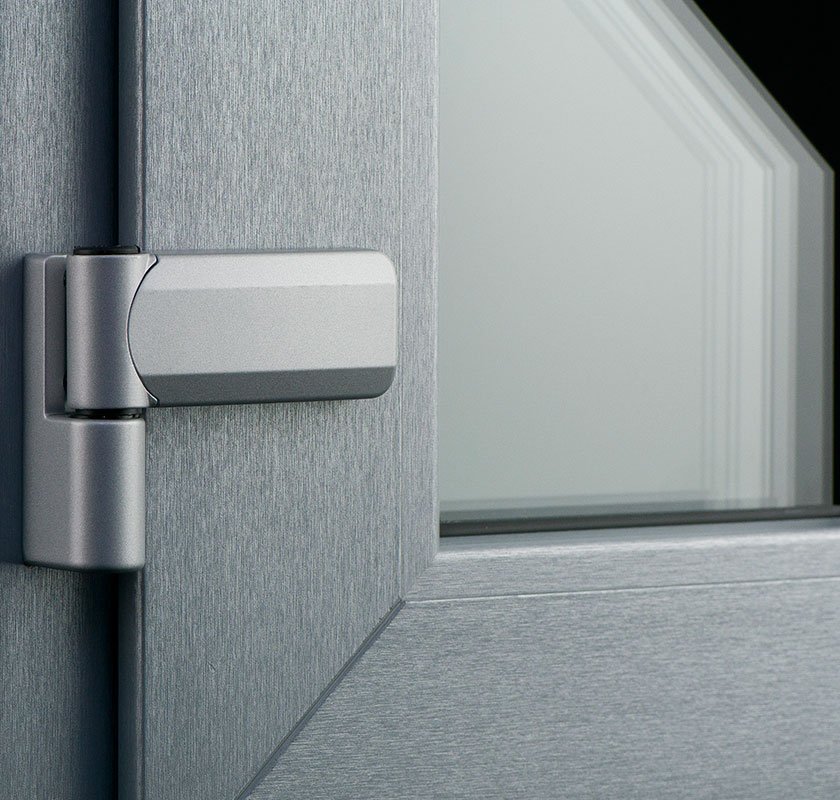

Mechanism: GU three-point automatic lock, 5-point R4 and external hinges of max. weight 100kg each

Integrated sealing gaskets on the casement and the sheet

Thermal plinth with removable cover

100% recyclable with eco-friendly stabilisers

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal Insulation: Uf 1,2 W/ m2K

Soundproofing up to 47 db in accordance with DIN EN ISO 140-3

Burglar resistance up to RC 2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 9A

Wind pressure resistance in accordance with DIN EN 12210: Class: C2 / B2

Mechanical strength in accordance with DIN EN 13115 Class: 4
