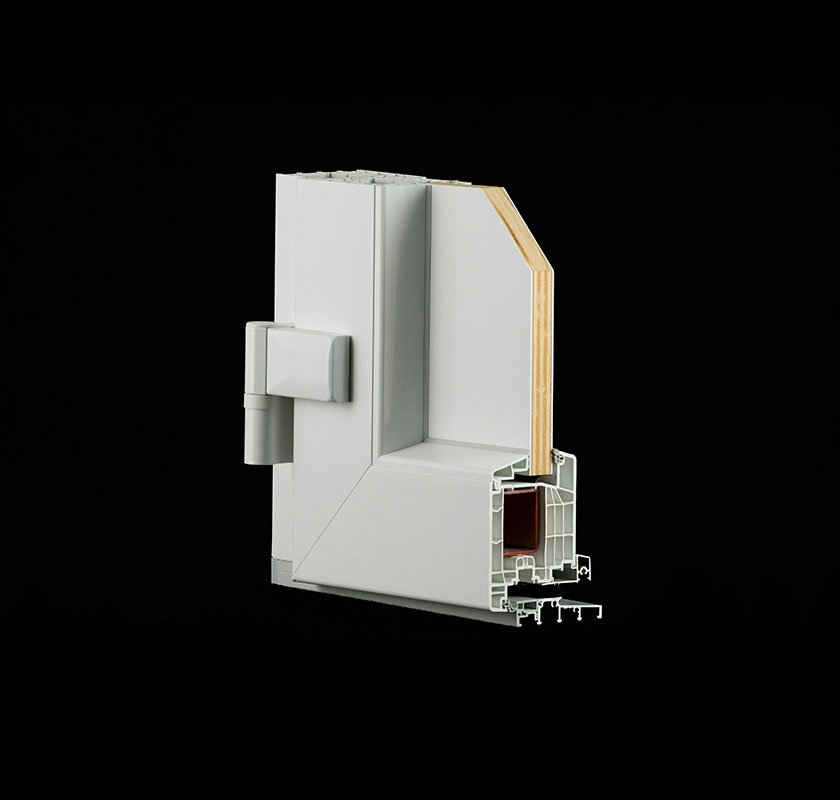

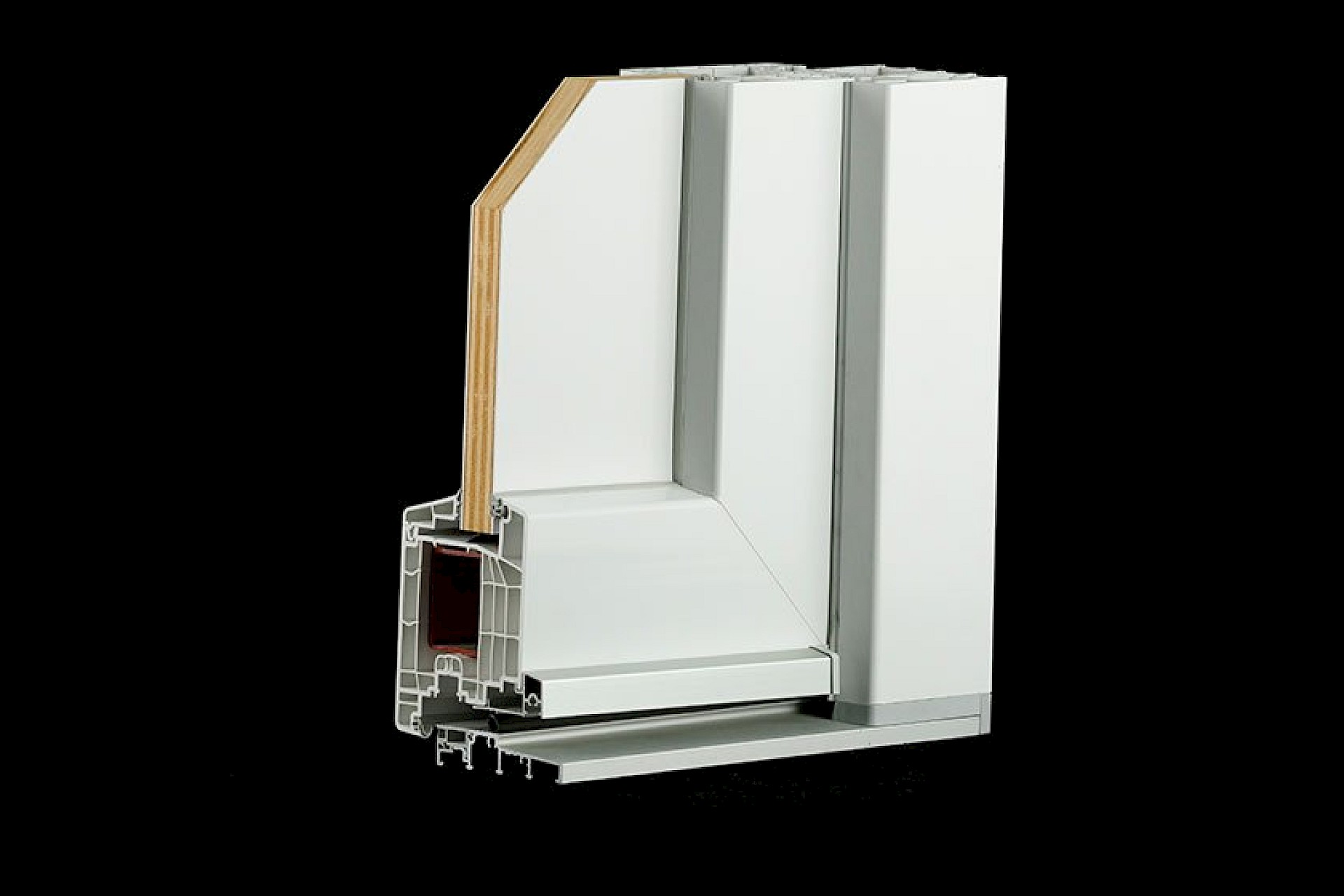

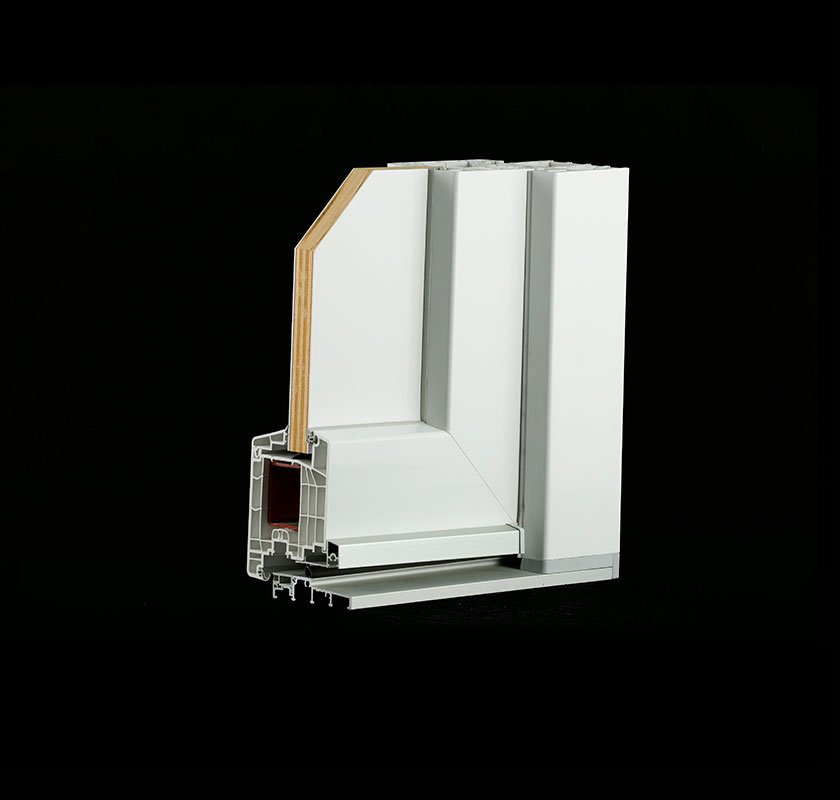

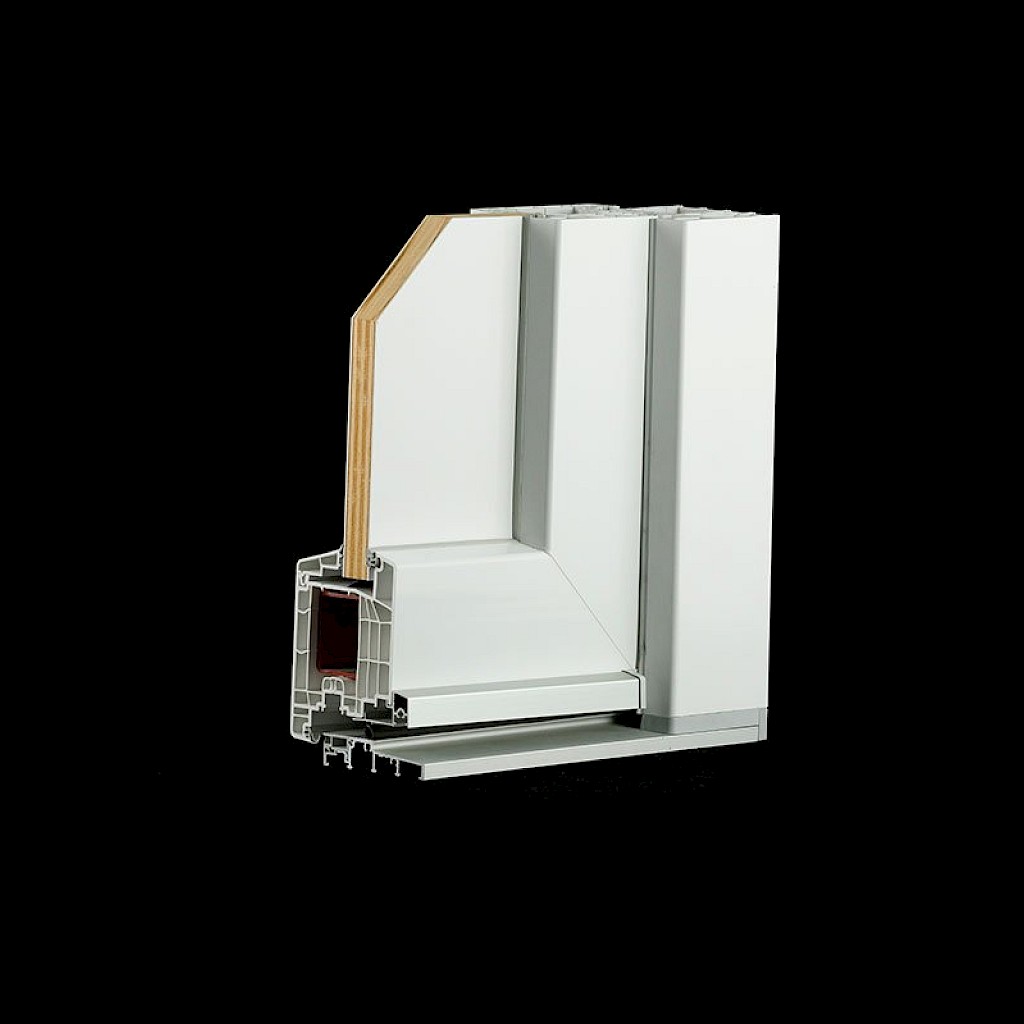

88 PLUS RESIDENTIAL DOOR

High insulation main entrance door system, with total face width of 172 mm.
PVC main entrance door system KÖMMERLING 88 PLUS is one of the most integrated eco-friendly solutions, featuring excellent thermal-insulation, soundproofing and sealing properties, in combination with their great burglar-resistance performance and durability. The casement comes in various colours so that it can be perfectly integrated in the place where it is fitted.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 88 mm

Frame face width: 89 mm

Maximum glass thickness: 24-54 mm

Sheet profile depth: 88 mm

Sheet face width: 122 mm

Triple glass pane or 54mm-thick panel option

Sheet and casement reinforcement: thermogalvanised steel 2 - 3 mm thick

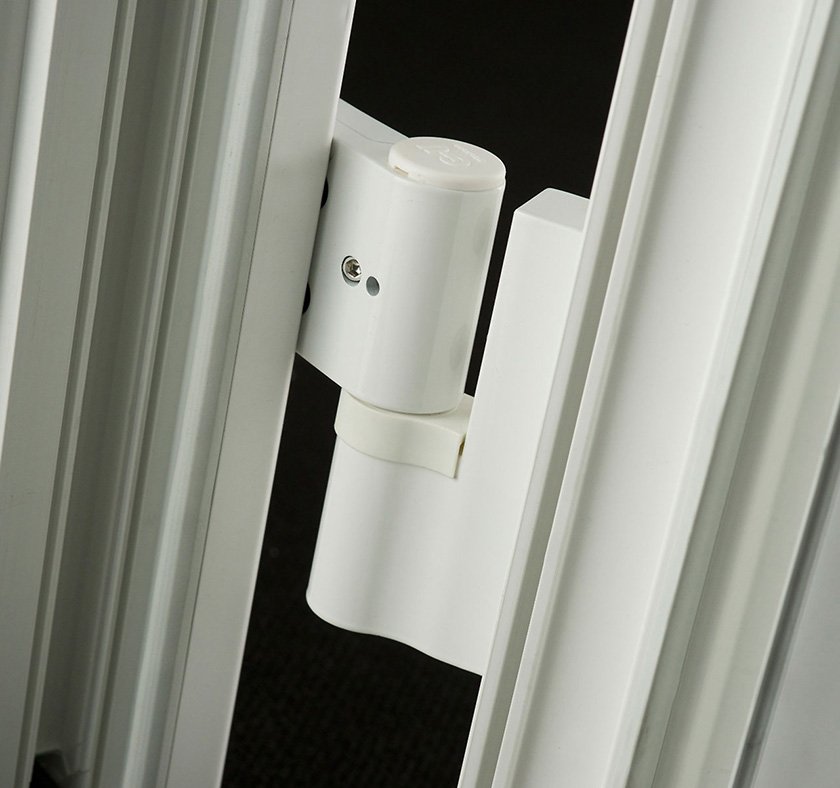

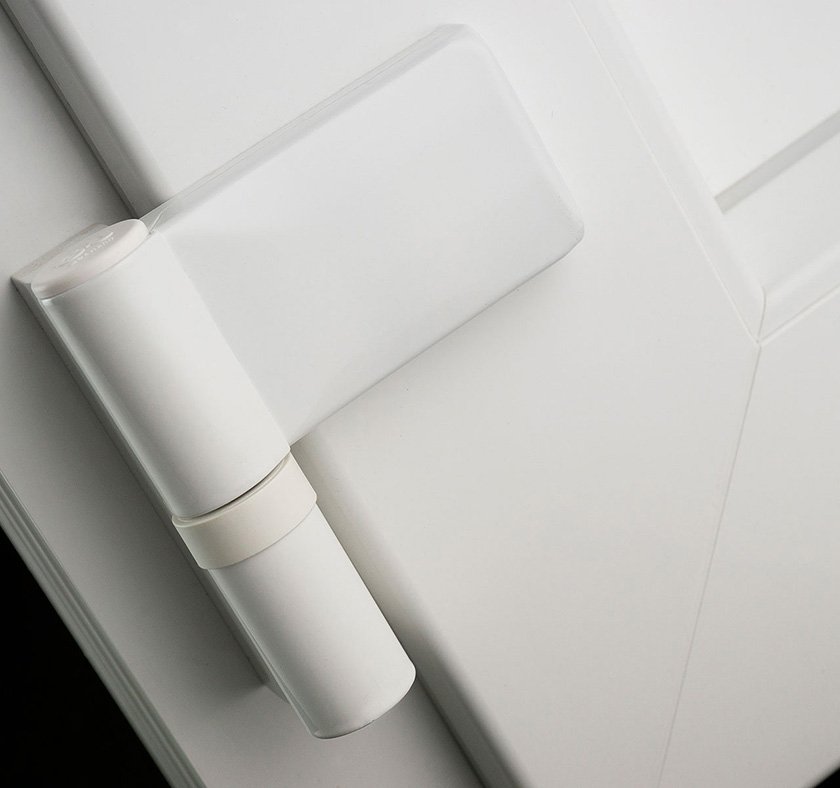

Mechanism: GU three-point automatic lock and external heavy duty hinges, max. resistance 160kg each

3 integrated PCE sealing gaskets

Thermal plinth with removable cover

100% recyclable with eco-friendly stabilisers

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal Insulation: Uf 1,1 – 1,7W/ m2K

Soundproofing up to Rw=42 in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 5Α

Wind pressure resistance in accordance with DIN EN 12210: Class: C1 / B5

Mechanical strength in accordance with DIN EN 13115 Class: 4

Functionality over time in accordance with DIN EN 12400 Class: 3
