Falttür76AD

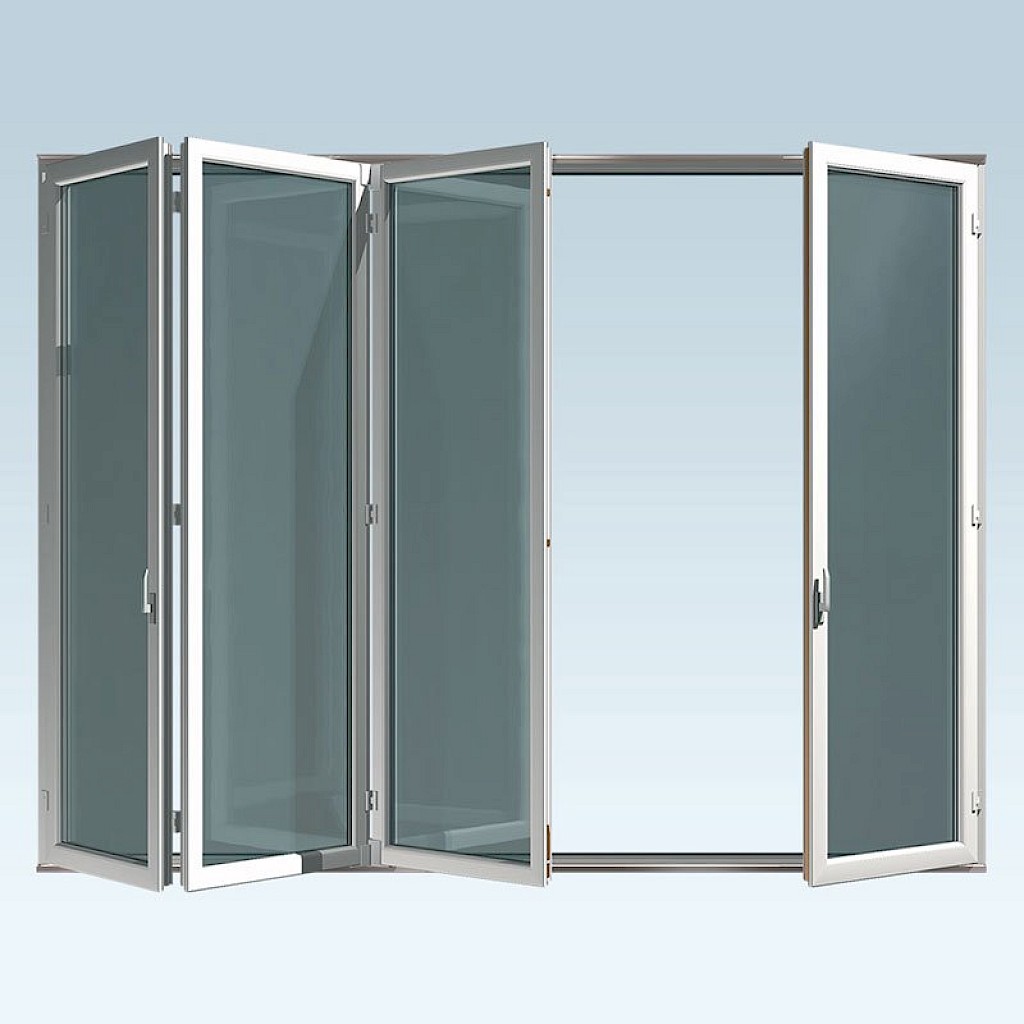

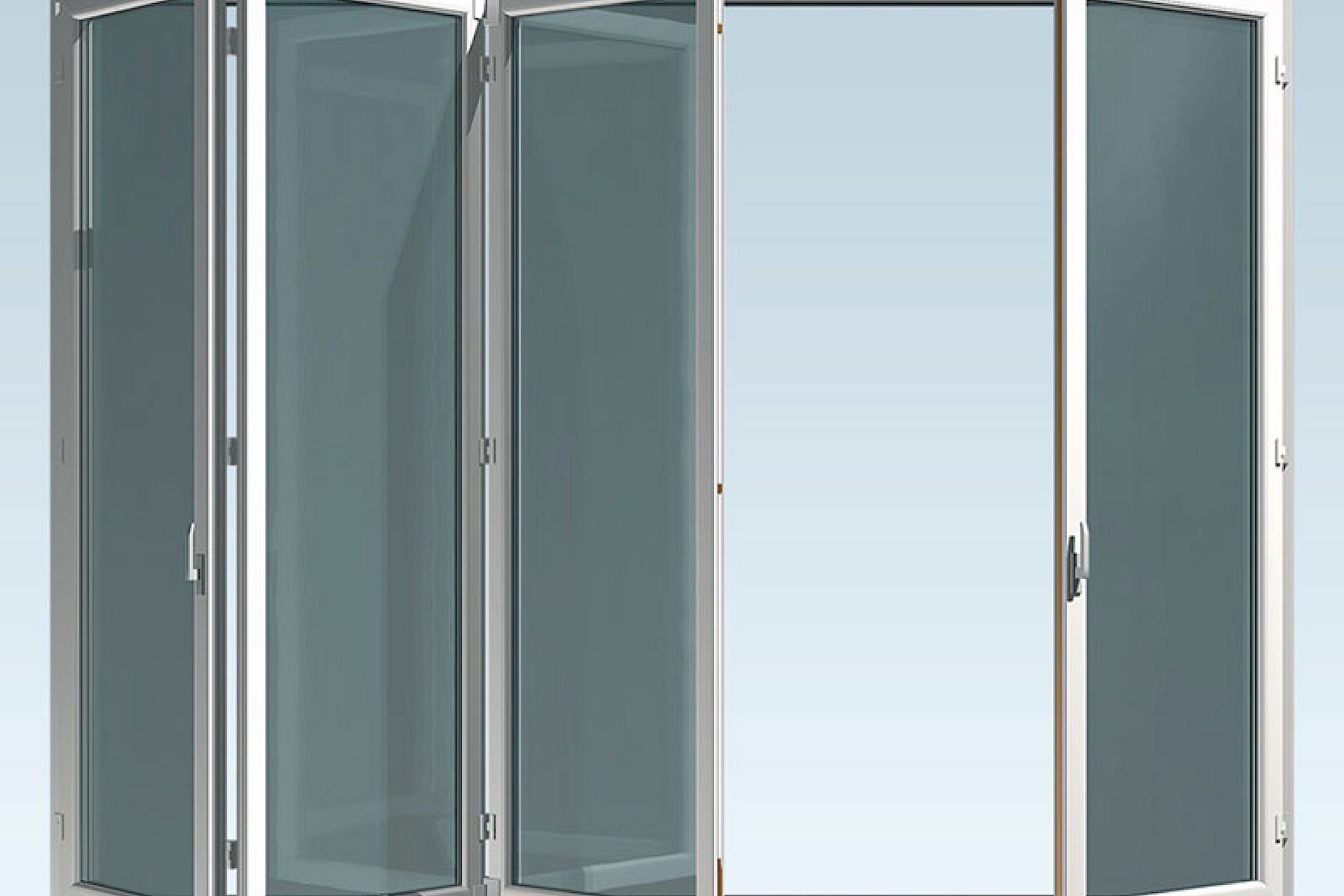

High insulation bifold door system, with total face width of 148mm on the Left and the Right.
PVC system KÖMMERLING Falttür 76AD is one of the most integrated eco-friendly solutions, featuring excellent thermal-insulation, soundproofing and sealing properties, in combination with their great burglar-resistance performance and durability. The casement comes in various colours so that it can be perfectly integrated in the place where it is fitted.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 76 mm

Frame face width: bottom 97mm, right-left 67mm, top 82mm mm

Maximum glass thickness: 16-48 mm

Sheet profile depth: 76 mm

Sheet face width: 110 mm

Sheet and casement reinforcement: thermogalvanised steel 1.5-2 mm thick

Mechanism: GU mechanism (sheet max. weight 130kg)

PCE sealing gaskets

100% recyclable with eco-friendly stabilisers

Charge groups in accordance with DIN EN 12207/12208/12210

Possibility of installing the bottom of the casement 5cm underground.

Thermal insulation up to Uf 1,1 W/ m2K

Soundproofing up to 47dBin accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 9Α

Wind pressure resistance in accordance with DIN EN 12210: Class: C5 / B5

Mechanical strength in accordance with DIN EN 13115 Class: 1

Functionality over time in accordance with DIN EN 12400 Class: 2
