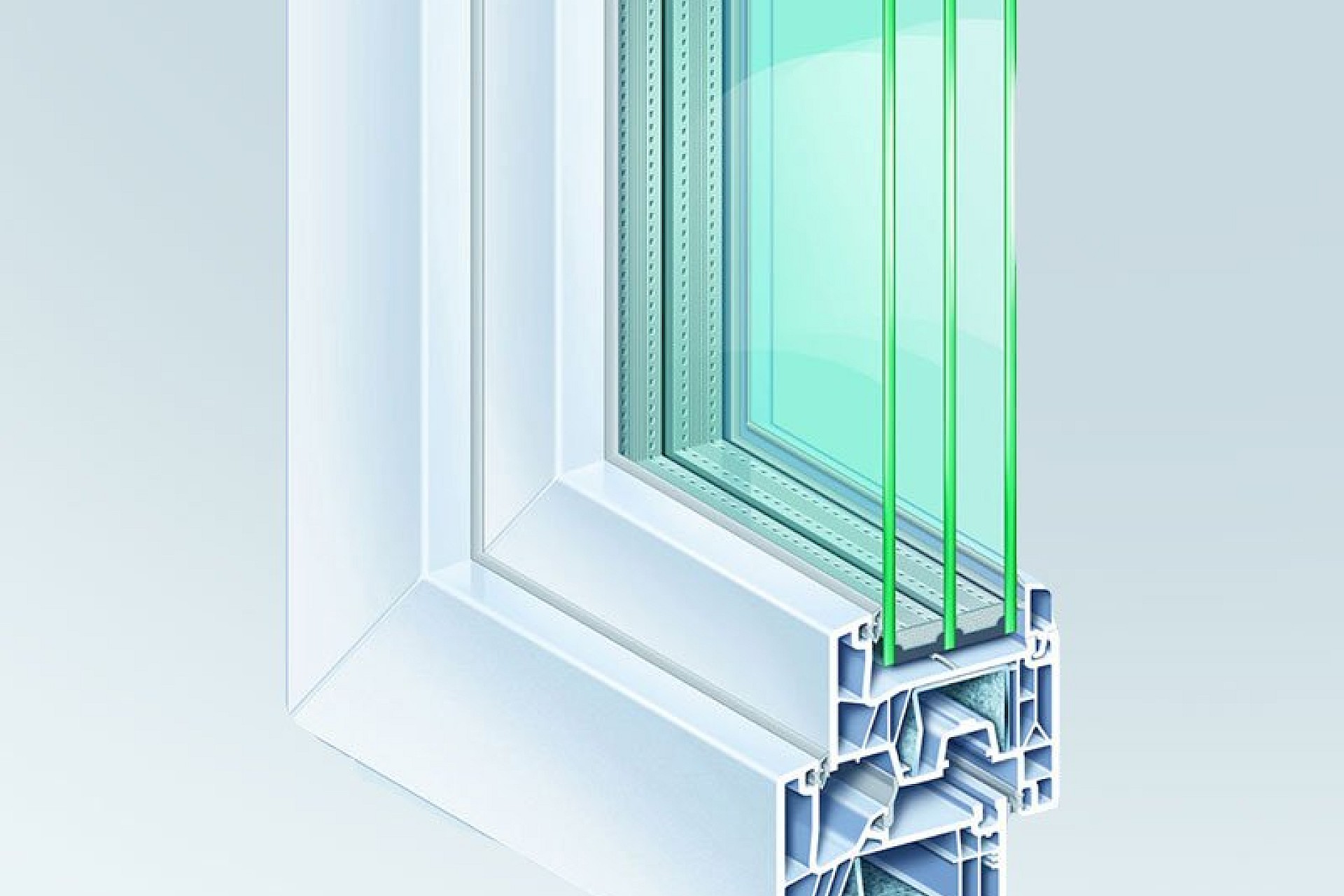

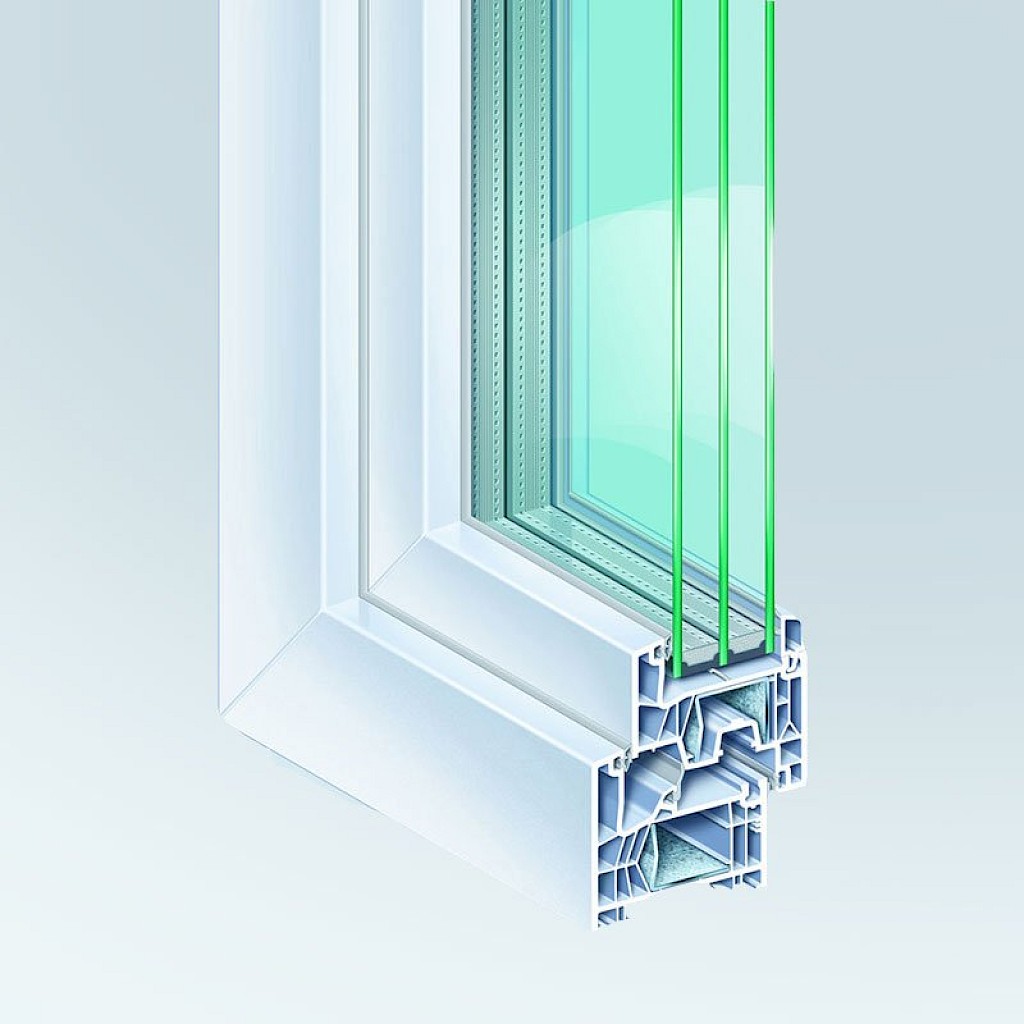

KÖMMERLING 76MD

High insulation window system, with basic face width of 116mm.
PVC window system KÖMMERLING 76ΜD is one of the most integrated eco-friendly solutions, featuring excellent thermal-insulation and sealing properties, in combination with their great burglar-resistance, soundproofing performance and durability. The casement comes in various colours so that it can be perfectly integrated in the place where it is fitted.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 76 mm

Frame face width: 74 mm

Maximum glass thickness: 18-48 mm

Sheet profile depth: 76 mm

Sheet face width: 78 mm

Triple glass pane option

Sheet and casement reinforcement: thermogalvanised steel 1.5-2mm thick

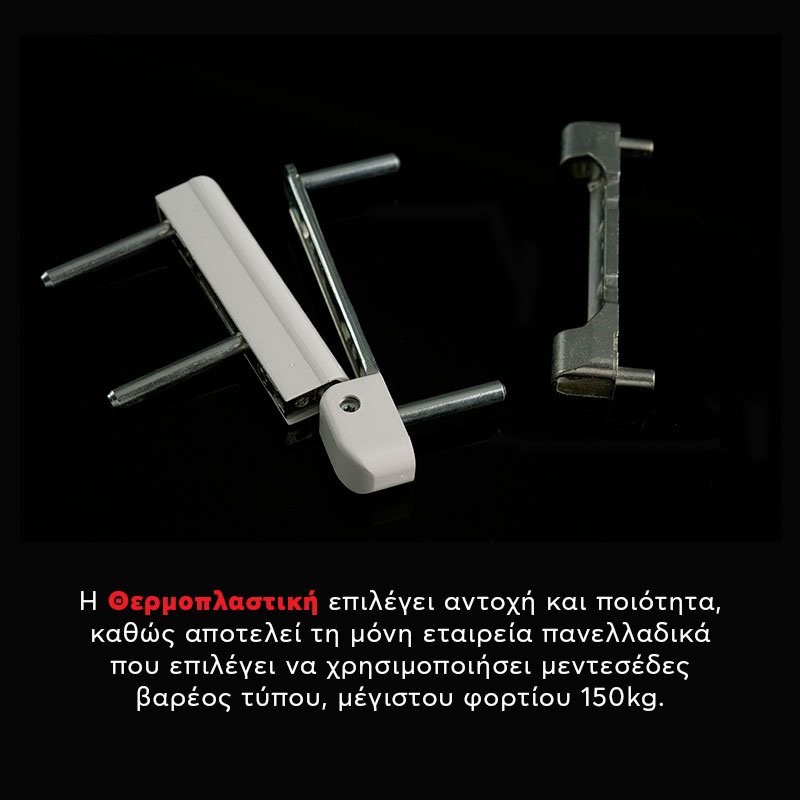

Mechanism: GU mechanism, Unijet Eurojet type (sheet max. weight 150kg) and basic security category

Mechanism surface protection: FerGUard (1000 hours), anti-corrosion protection

3 integrated PCE sealing gaskets

100% recyclable with eco-friendly stabilisers

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal Insulation: Uf 1,00 W/ m2K standard edition

Soundproofing up to Rw=48 dB in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class:4

Water permeability in accordance with DIN EN 12208 Class:9Α

Wind pressure resistance in accordance with DIN EN 12210 Class:C5/B5

Mechanical strength in accordance with DIN EN 13115 Class: 4

Functionality over time in accordance with DIN EN 12400 Class: 3
