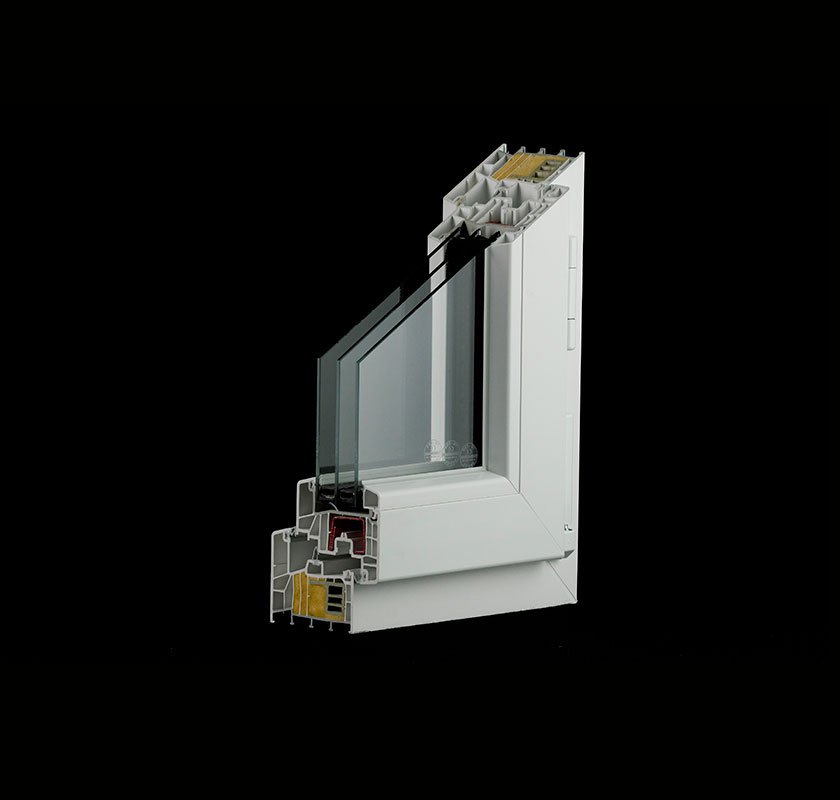

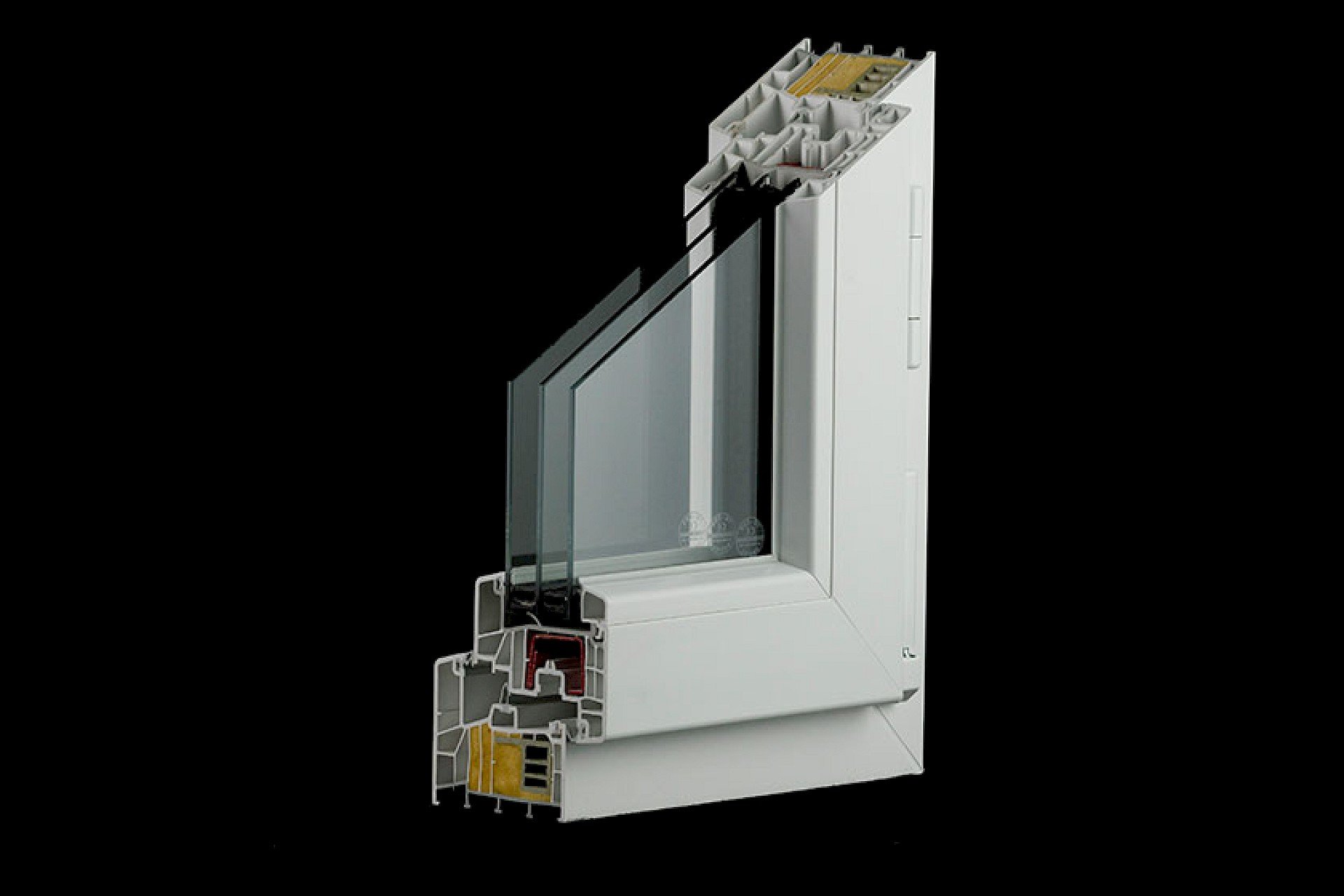

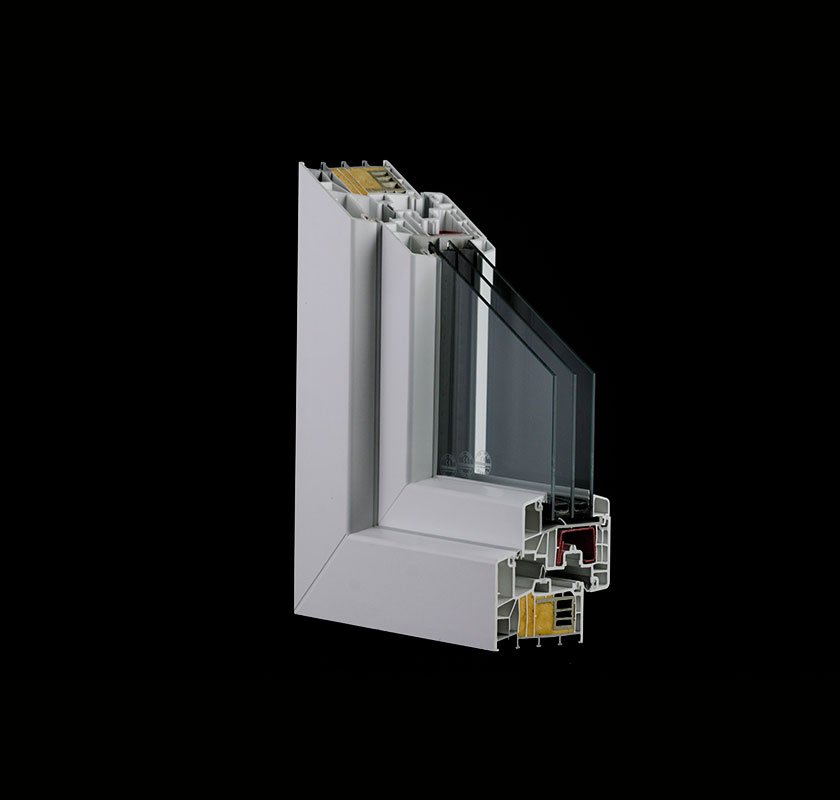

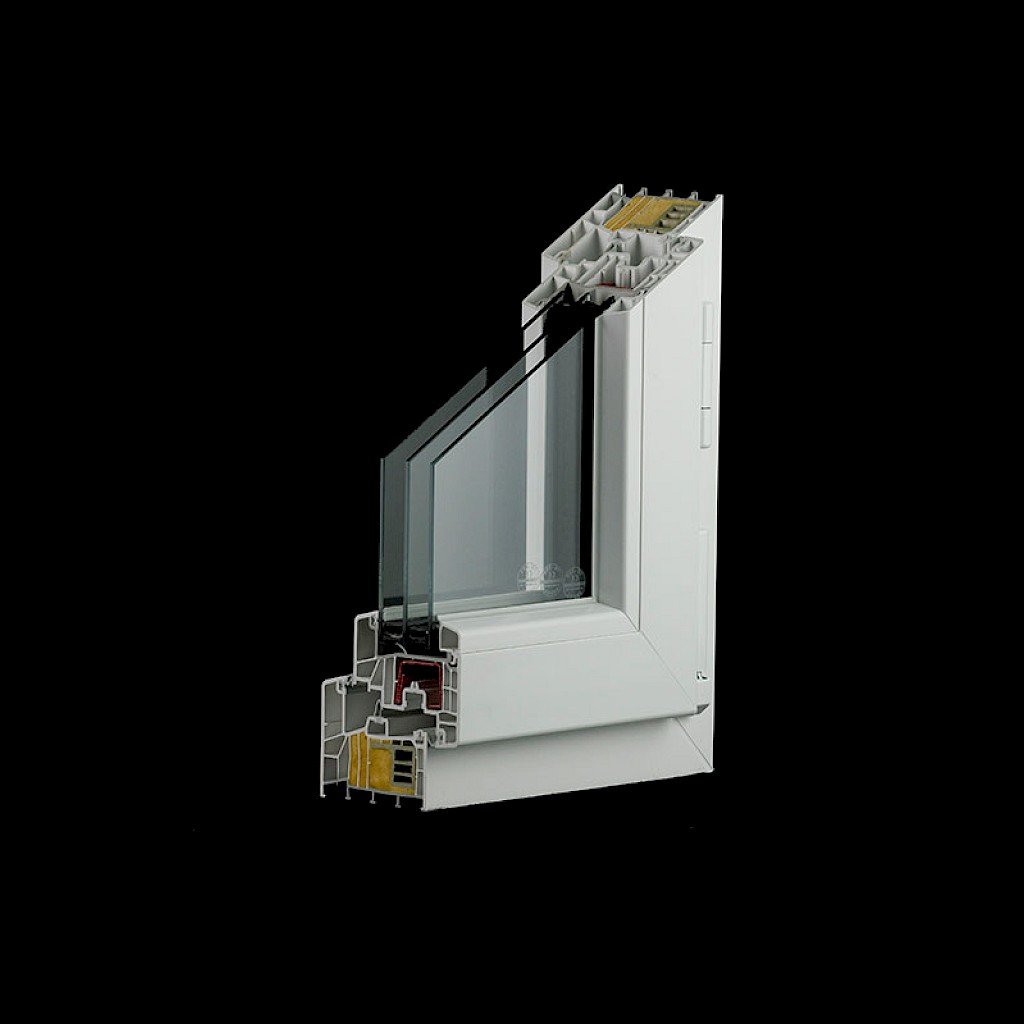

KÖMMERLING 88 (ProEnergy Tec)

High insulation window system, with standard face width of 120mm.

PVC window system KÖMMERLING 88 (proEnergy Tec) is the range’s most eco-friendly solution, featuring excellent thermal-insulation, soundproofing and sealing properties, in combination with their great burglar-resistance performance and durability. One of their special functionality characteristics is the possibility of installing a triple glass panel; this window system is ideal for Passive House applications.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 88 mm

Frame face width: 78 mm

Maximum glass thickness: 24-56 mm

Sheet profile depth: 88 mm

Sheet face width: 78 mm

Thermal Insulation: Uf 0,79 W/ m2K standard edition

Soundproofing up to Rw=48 dB in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 9Α

Wind pressure resistance in accordance with DIN EN 12210: Class: C5 / B5

Mechanical strength in accordance with DIN EN 13115 Class: 4

Functionality over time in accordance with DIN EN 12400 Class: 3

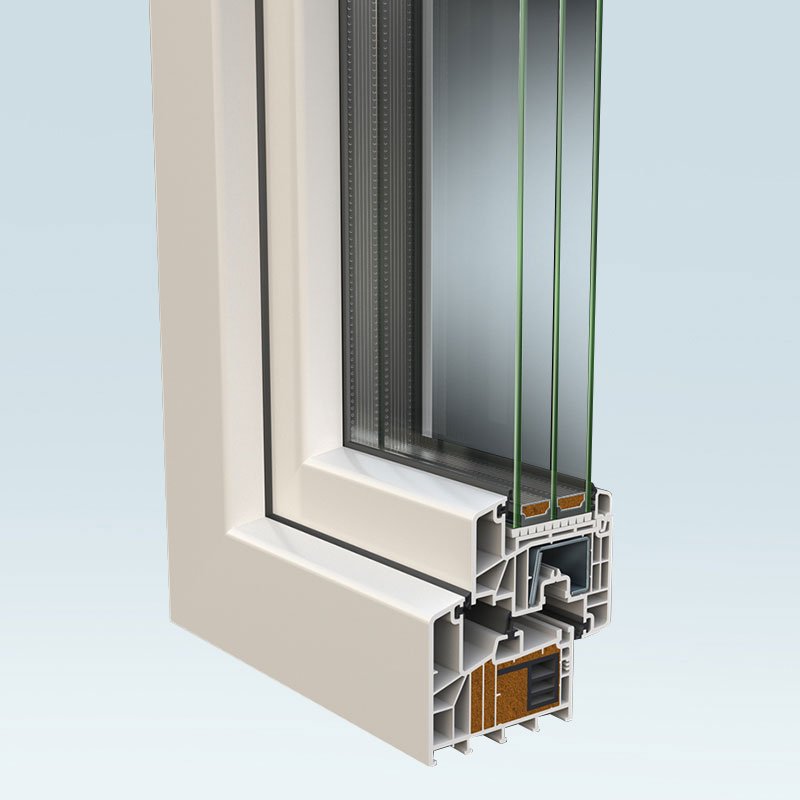

Triple glass pane option

Casement and sheet reinforcement with proEnergy Tec

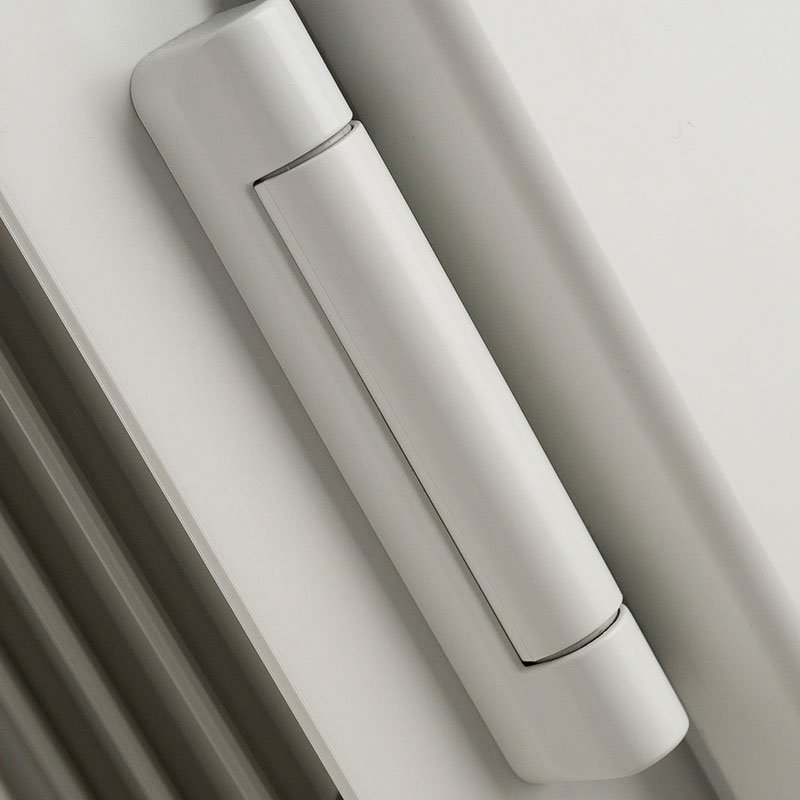

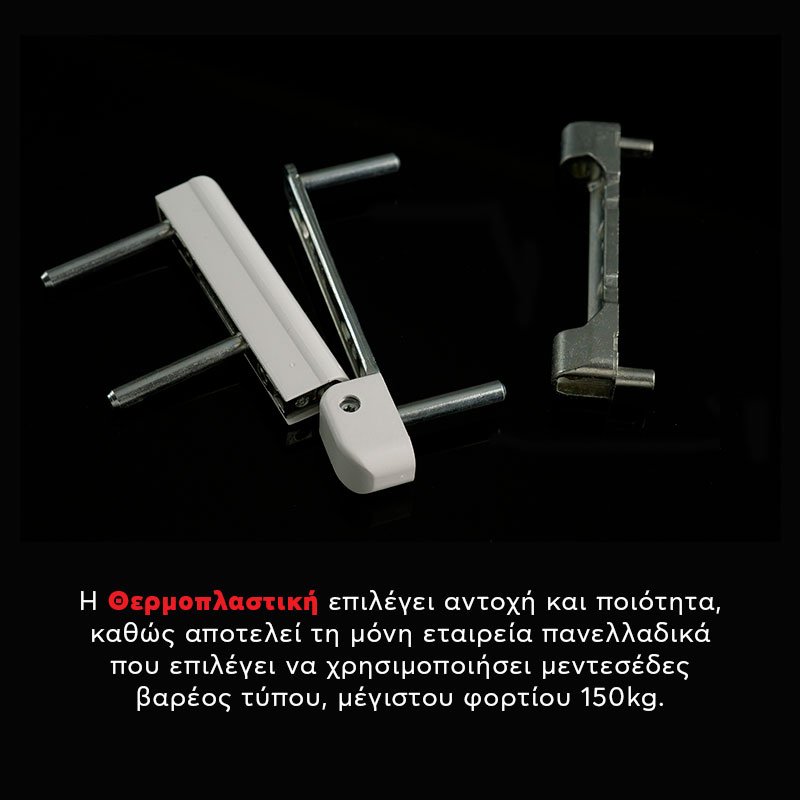

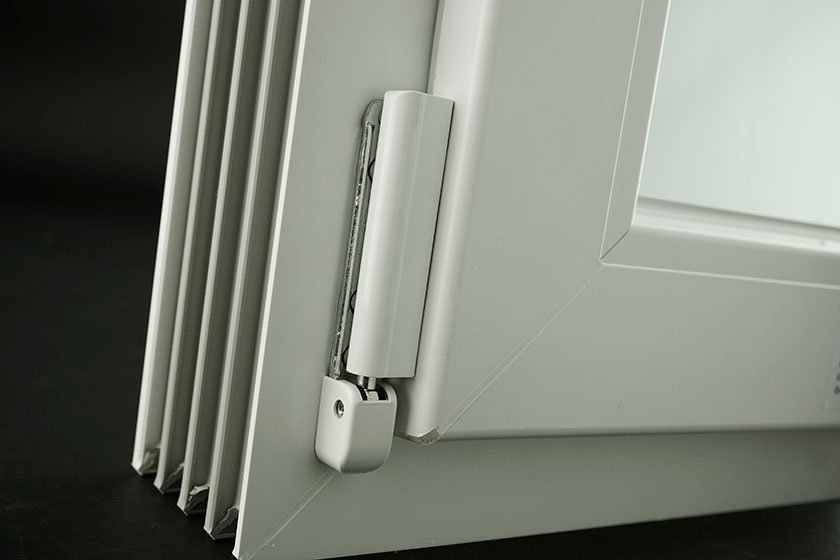

Mechanism: GU mechanism, Unijet Eurojet type (sheet max. weight 150kg) and basic security category

Surface protection: FerGUard (1000 hours), anti-corrosion protection

3 integrated PCE sealing gaskets

100% recyclable with eco-friendly stabilisers

Charge groups in accordance with DIN EN 12207/12208/12210
