PremiDoor 76
DIGALAKIS A.
PremiDoor 76

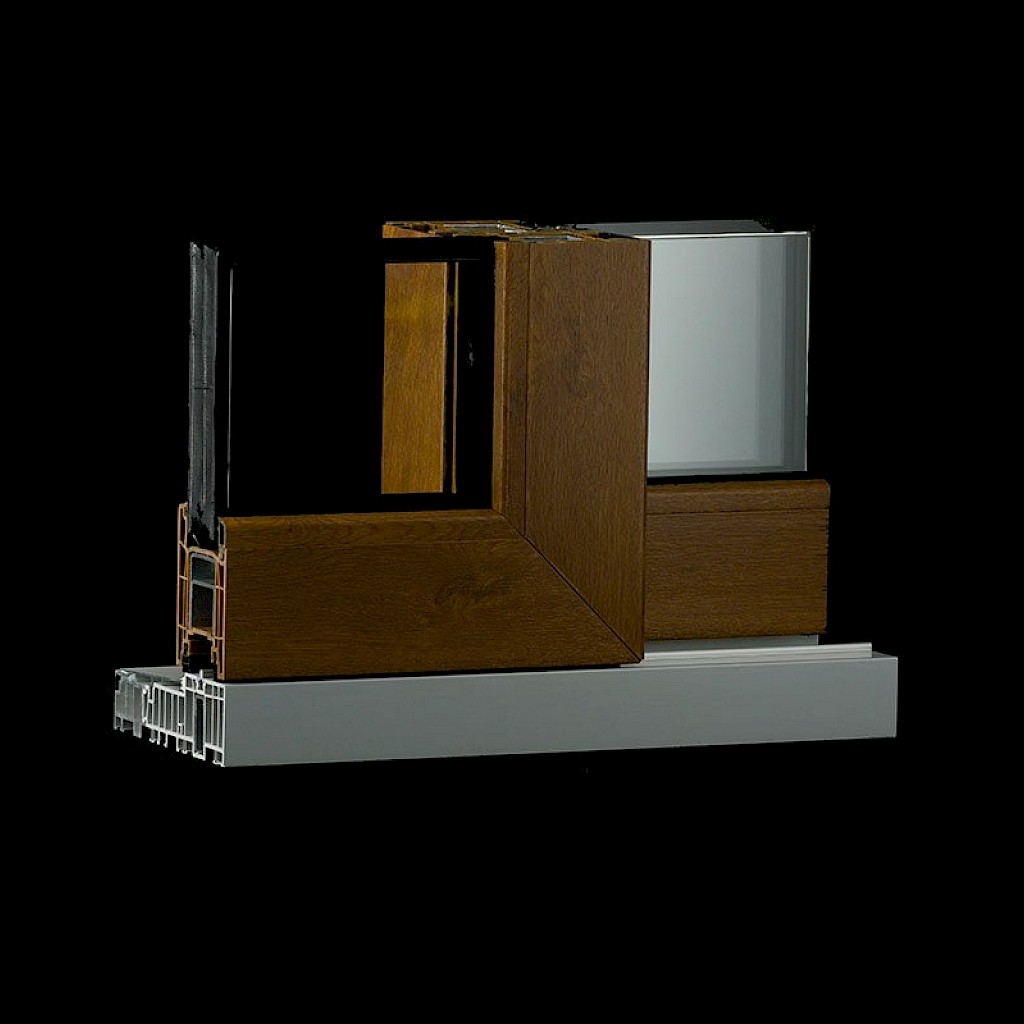

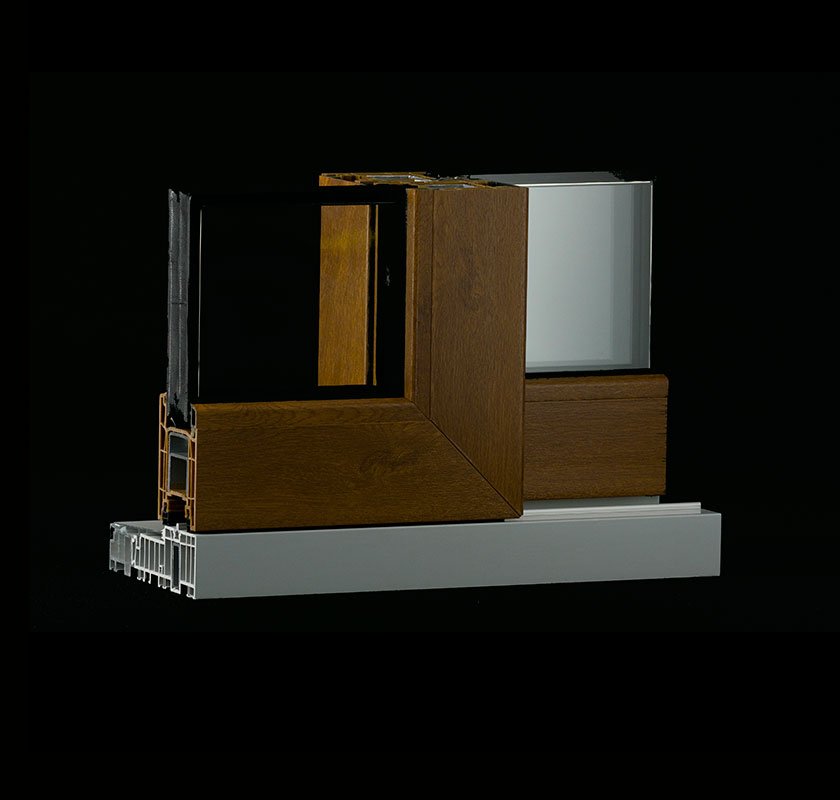

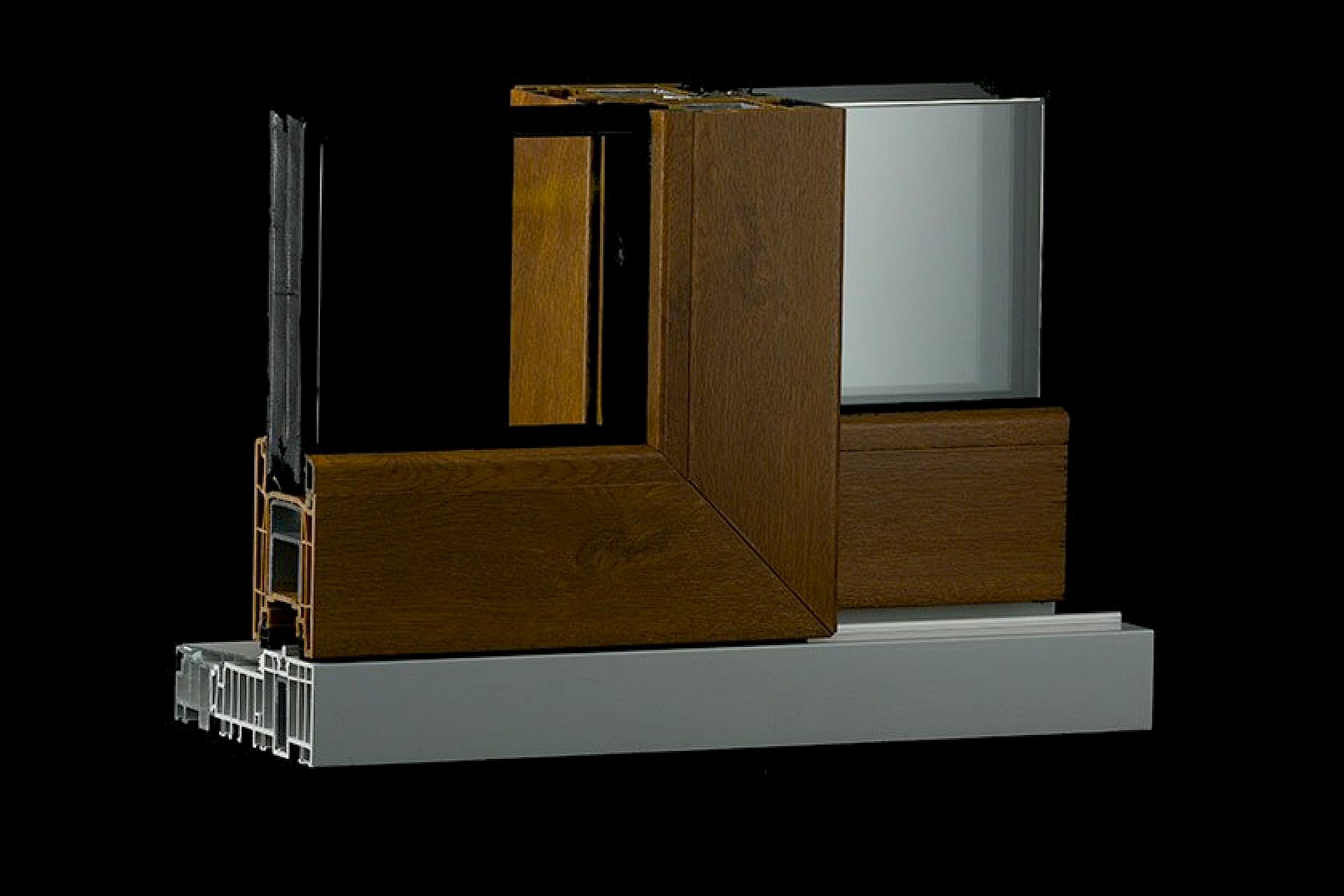

Lift-and-slide window frame, high thermal insulation, with a total visible width of 137 mm.
The KÖMMERLING PremiDoor 76 synthetic frame is a comprehensive ecological solution with exceptional thermal insulation and sealing properties, complemented by significant performance in anti-burglary protection, sound insulation, and long-term durability.

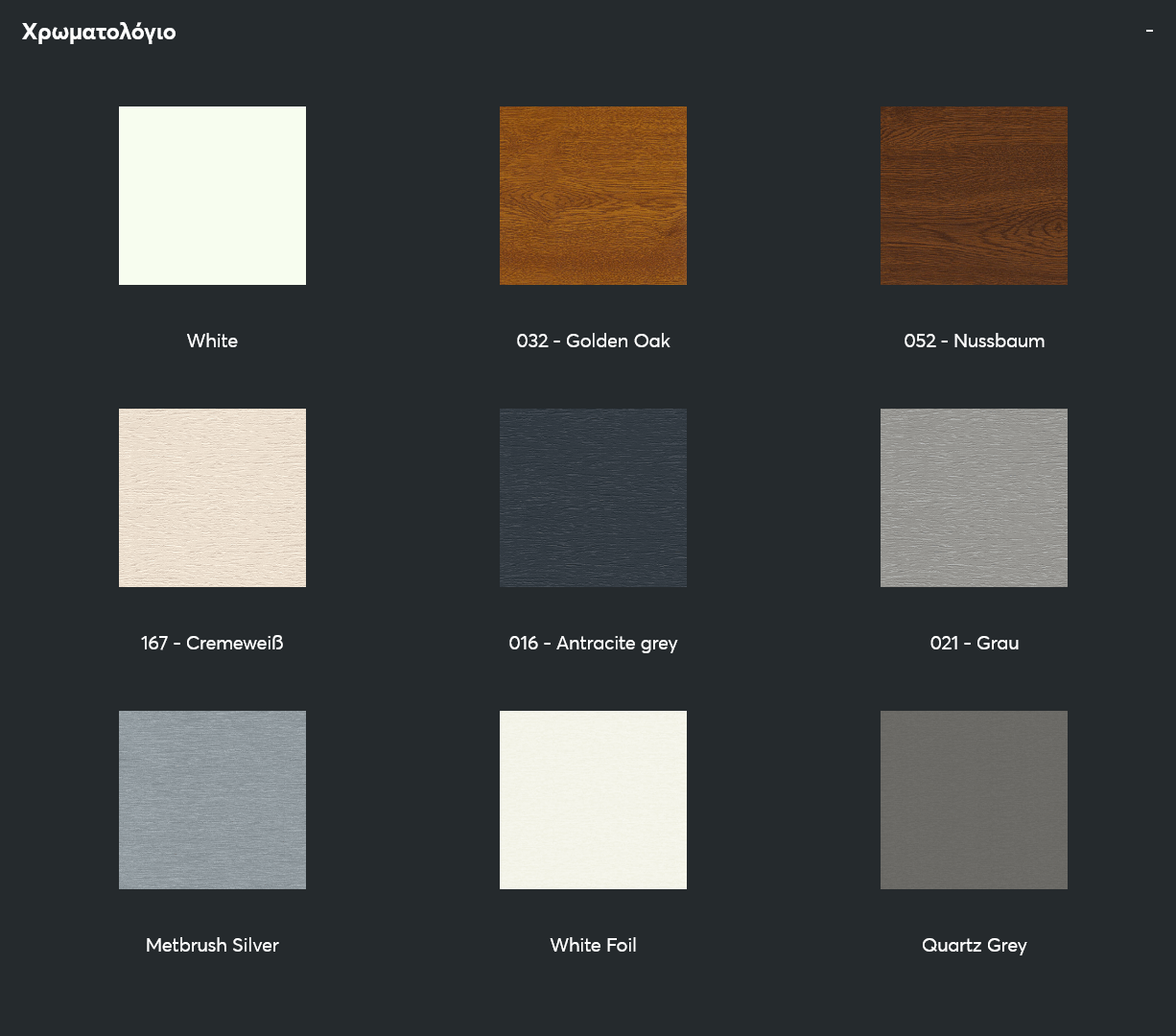

The possibility of integrating the 50 mm frame into the floor enhances practicality, while the frame is available in a wide range of colors to harmoniously match its installation location.
Lift-and-slide window frame, high thermal insulation
TECHNICAL
CHARACTERISTICS
SPECIFICATIONS

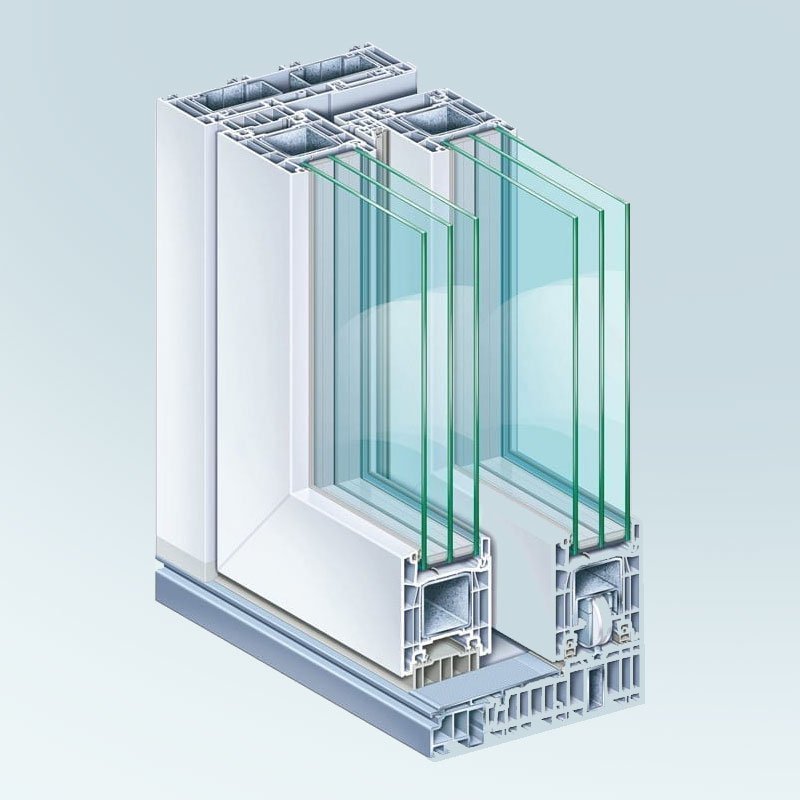

Lift/Sliding System for excellent thermal insulation with standard face width of 137mm.
PVC system KÖMMERLING PremiDoor 76 is one of the most integrated eco-friendly solutions, featuring excellent thermal-insulation and sealing properties, in combination with their great burglar-resistance, soundproofing performance and durability. The option provided to install the 50mm casement on the ground makes this system even more practical; the casement comes in various colours so that it can be perfectly integrated in the place where it is fitted.
TECHNICAL CHARACTERISTICS
Dimensions:
Frame profile depth: 179 mm
Maximum glass thickness: 50 mm
Sheet profile depth: 76 mm
Sheet face width: 100
Sheet and casement reinforcement: thermogalvanised steel 1.5mm - 2mm thick
Mechanism: 300Kg GU Mechanism for lifting/sliding system
Opening capacity Height 2600mm Width 6500mm
Thermal Insulation: Uf 1,4W m2k
Soundproofing up to db in accordance with DIN EN ISO 140-3
Burglar resistance up to in accordance with DIN V ENV 1627
Air permeability in accordance with DIN EN 12207 Class: C2/B3
Water permeability in accordance with DIN EN 12208 Class: 6A - 9A
Wind pressure resistance in accordance with DIN EN 12210: Class:
Mechanical strength in accordance with DIN EN 13115 Class:1
Functionality over time in accordance with DIN EN 12400 Class:2
