76AD 150KG

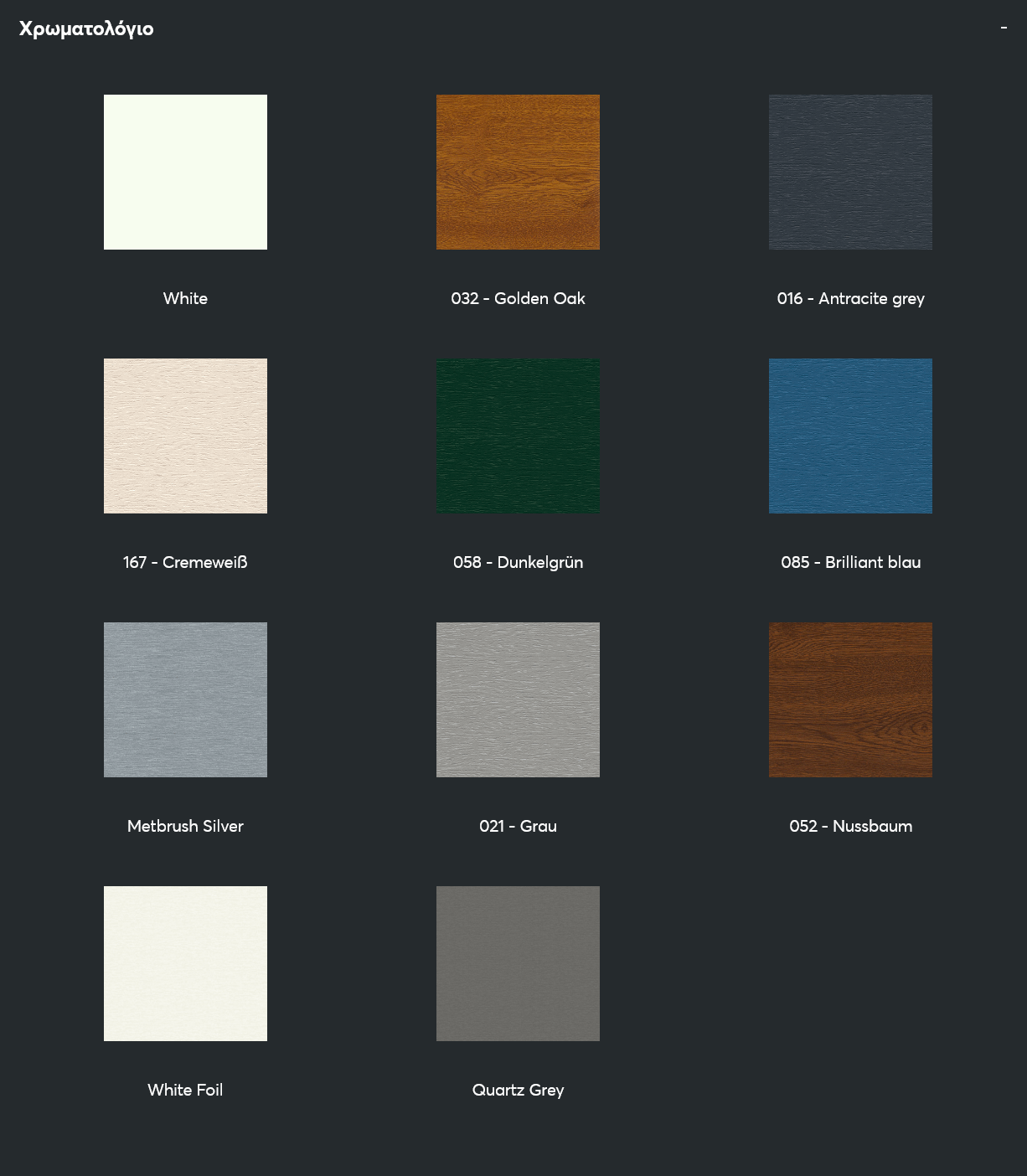

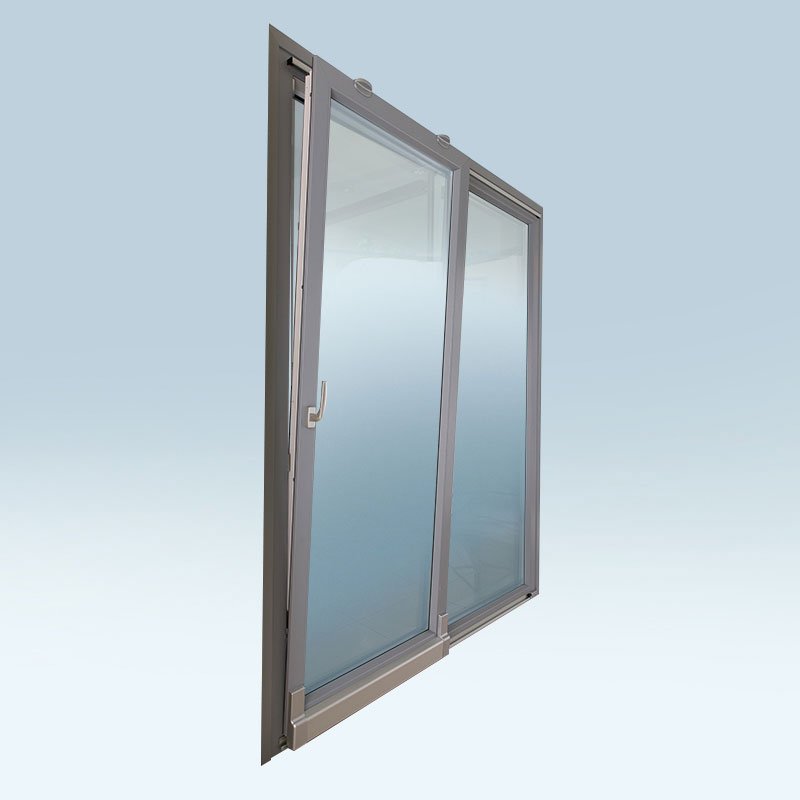

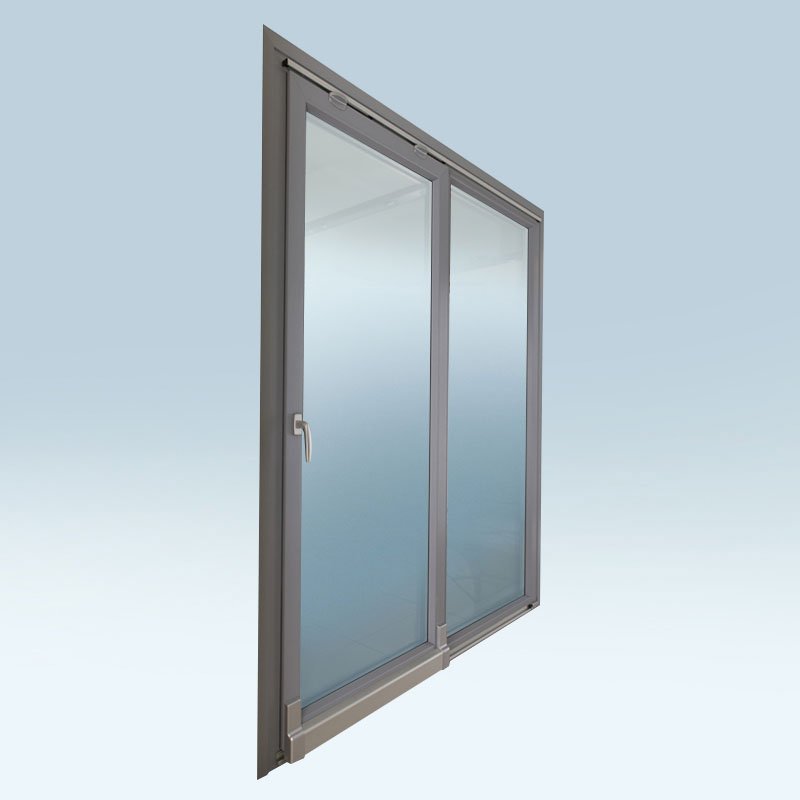

The sliding and opening PVC window and French door system KÖMMERLING 76AD 150KG, with total face width of 134 mm is one of the most integrated eco-friendly solutions, featuring excellent thermal-insulation, soundproofing and sealing properties, in combination with their great burglar-resistance performance and durability. The casement comes in various colours so that it can be perfectly integrated in the place where it is fitted.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 76 mm

Frame face width: 85 mm

Maximum glass thickness: 16-48 mm

Sheet profile depth: 76 mm

Sheet face width: 78 mm

Sheet and casement reinforcement: thermogalvanised steel 2 mm thick

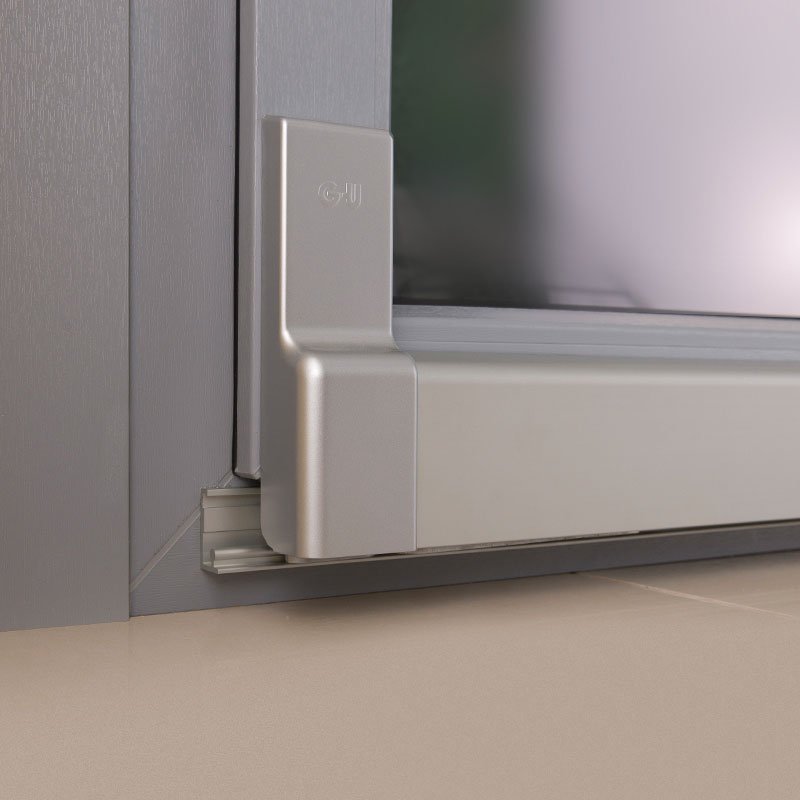

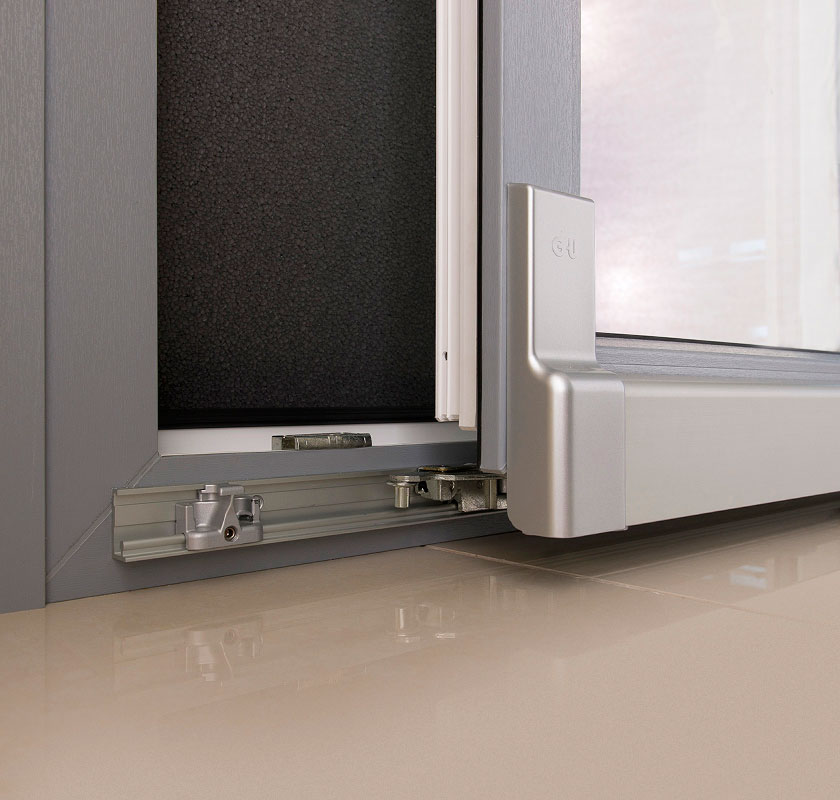

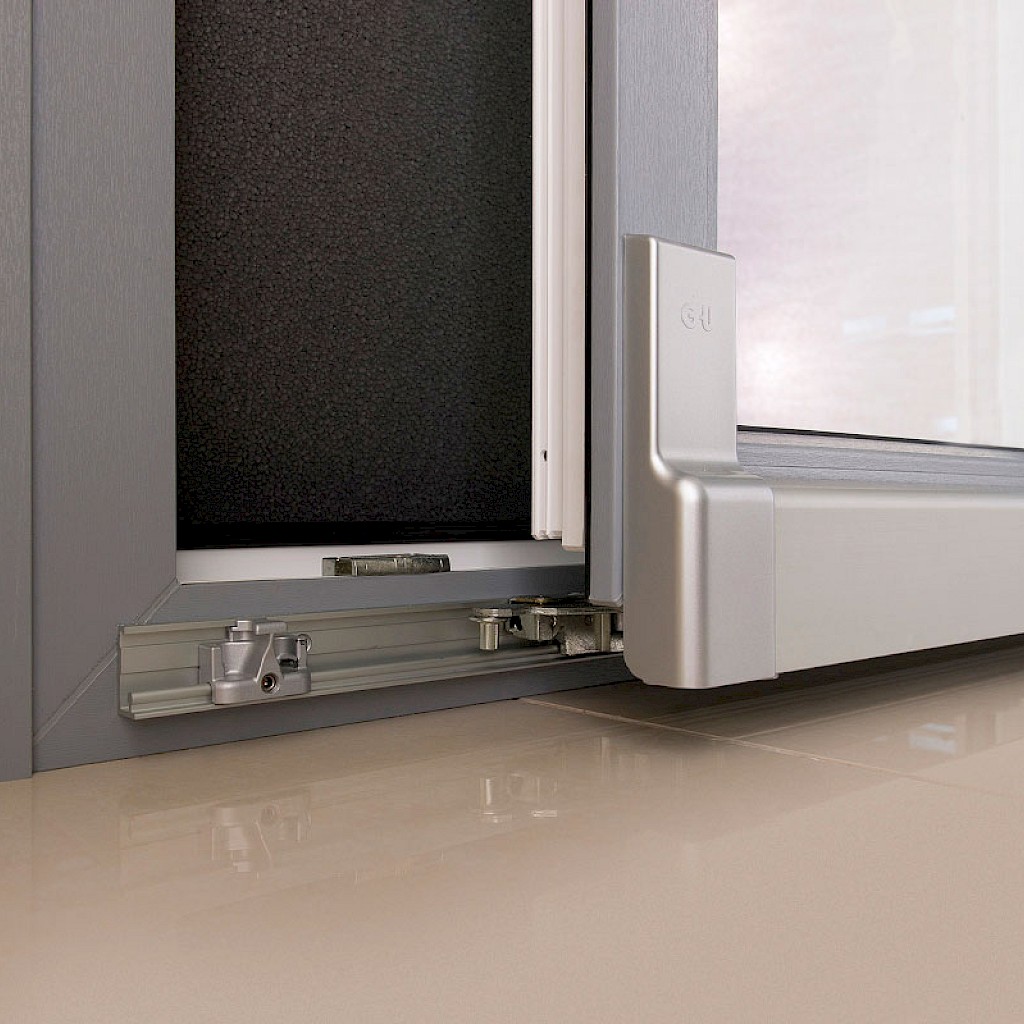

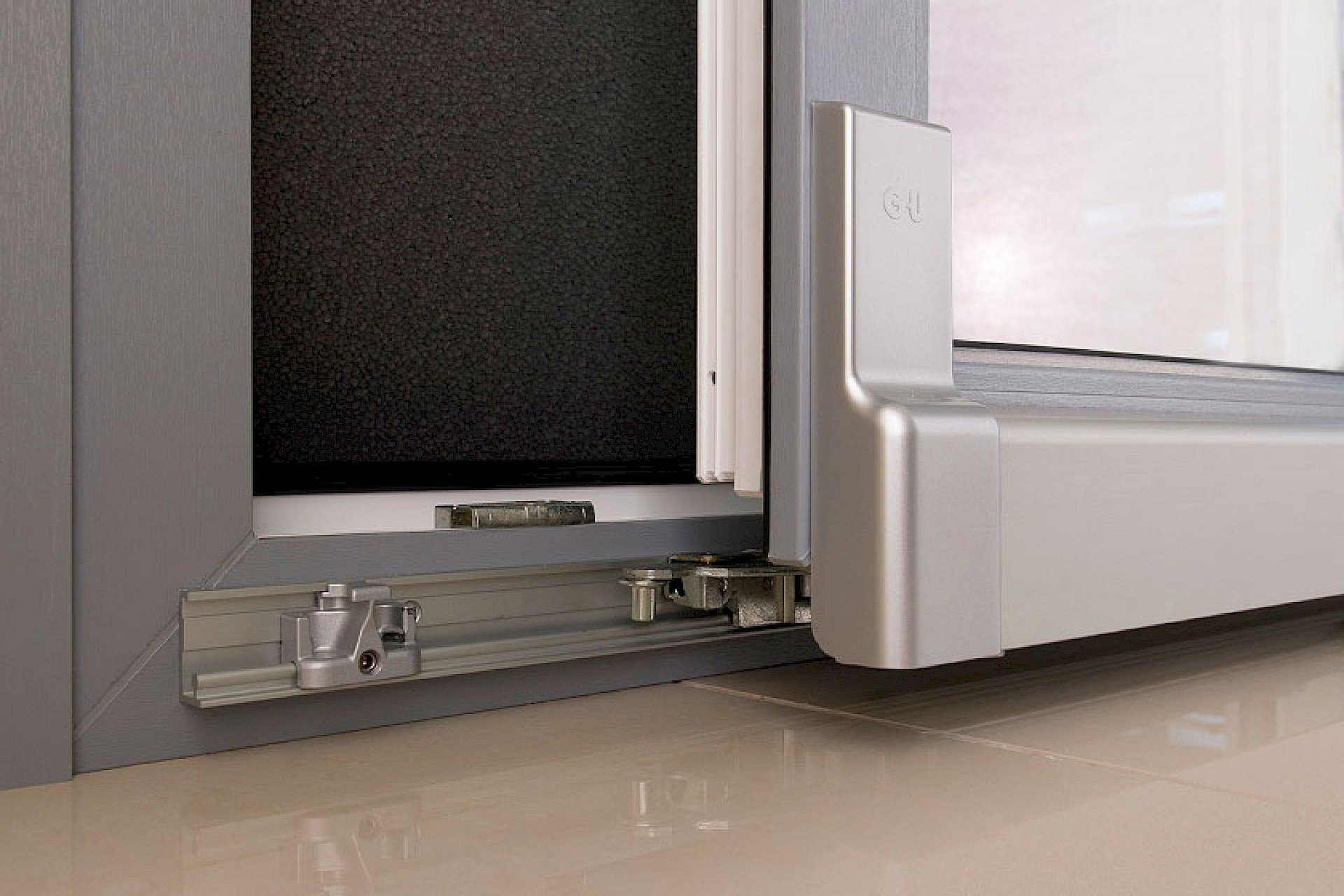

Mechanism: GU 150kg mechanism for sliding/opening

Sheet limit width 1.3m

Mechanism closing to hung position manually

Integrated PCE – Dichtung sealing gaskets

100% recyclable with eco-friendly stabilisers

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal insulation up to Uf 1,1 W/ m2K

Soundproofing up to 47db in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 9Α

Wind pressure resistance in accordance with DIN EN 12210: Class:: C2 / B2

Mechanical strength in accordance with DIN EN 13115 Class: 4

Functionality over time in accordance with DIN EN 12400 Class: 1
