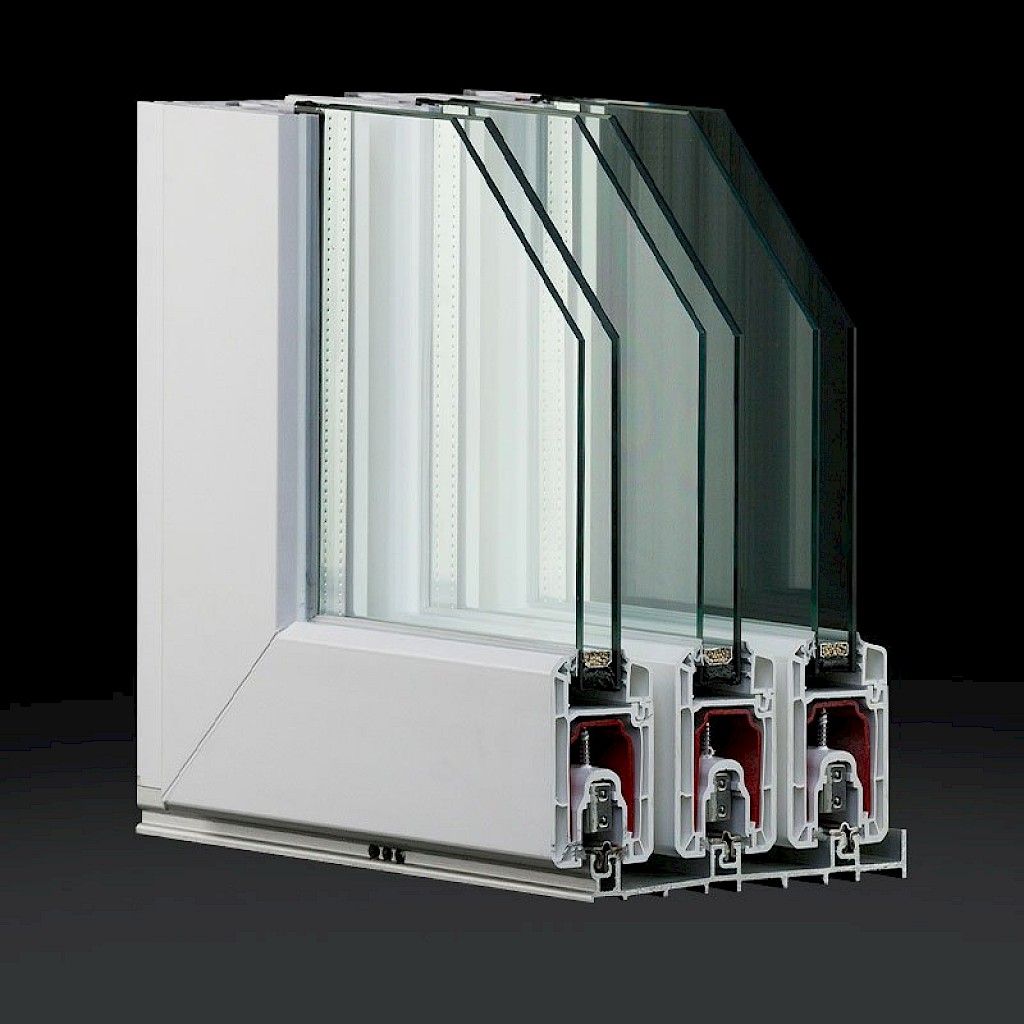

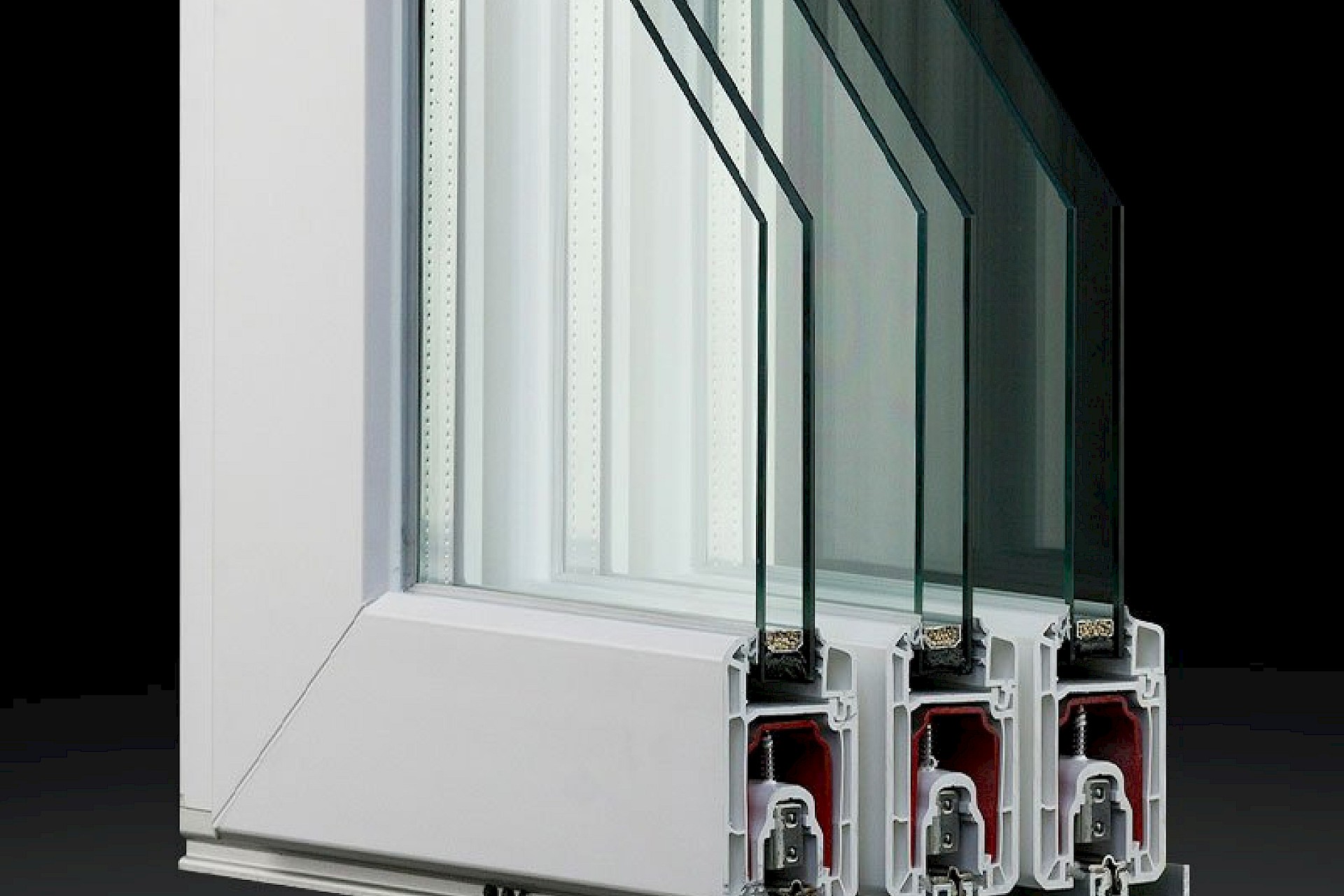

PREMILINE TRIPLE GUIDE RAIL ALU PLINTH

Standard sliding system, with triple rails and aluminum plinth. Total face frame width is 137mm, while running is performed on INOX rails.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 144 mm

Frame face width: 43 mm

Maximum glass thickness: 21-24 mm

Sheet profile depth: 54 mm

Sheet face width: 84 mm

Sheet and casement reinforcement: thermogalvanised steel 1.5 - 3mm thick

Mechanism: IN LINE (GU) and Siegenia sliding mechanism 80kg

Brush for sealing and integrated membrane

100% recyclable with eco-friendly stabilisers

With aluminum plinth 2cm high and casement depth 168.5mm
