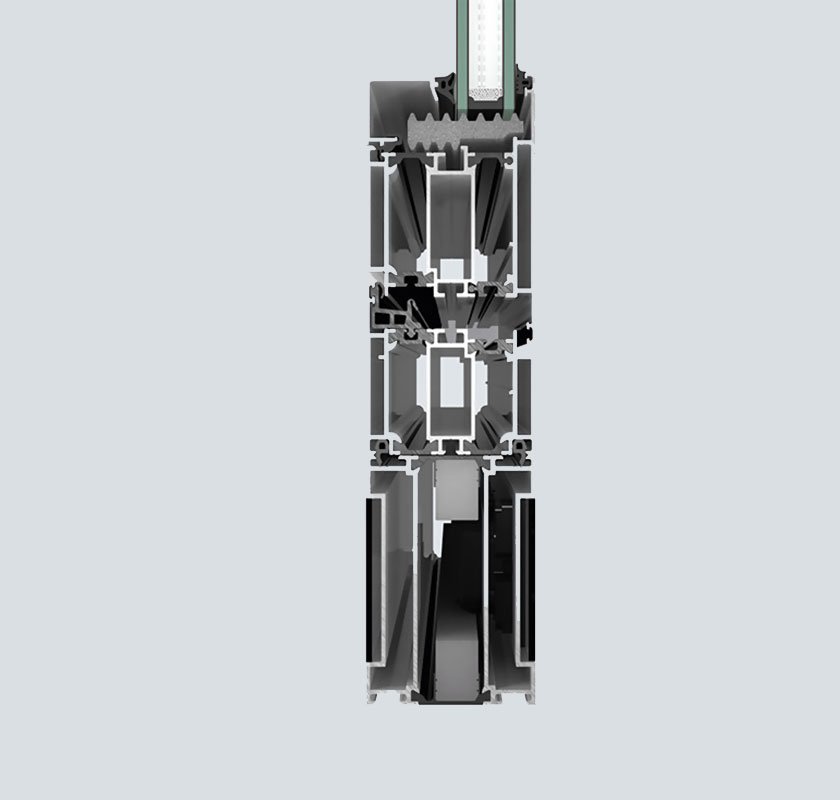

SCHÜCO ADS 75 SimplySmart

High insulation thermal break exterior door system, with total face width of 170mm and zero depth difference (coplanar).

The casement disposes of double divided thermal break with excellent performance when it comes to thermal insulation applications. The unique security features are complemented by the significant sealing performance and the strong burglar resistance, while visible and hidden hinges may be applied on the sheet.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 75 mm

Frame face width: 76 mm

Maximum glass thickness: 28 mm - 63 mm

Sheet profile depth: 75 mm

Sheet face width: 117 mm

Triple glass pane option

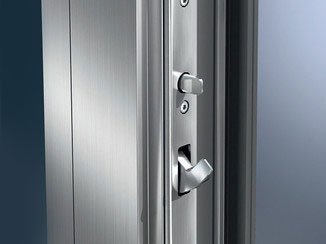

Mechanism: SCHÜCO

EPDM sealing gaskets

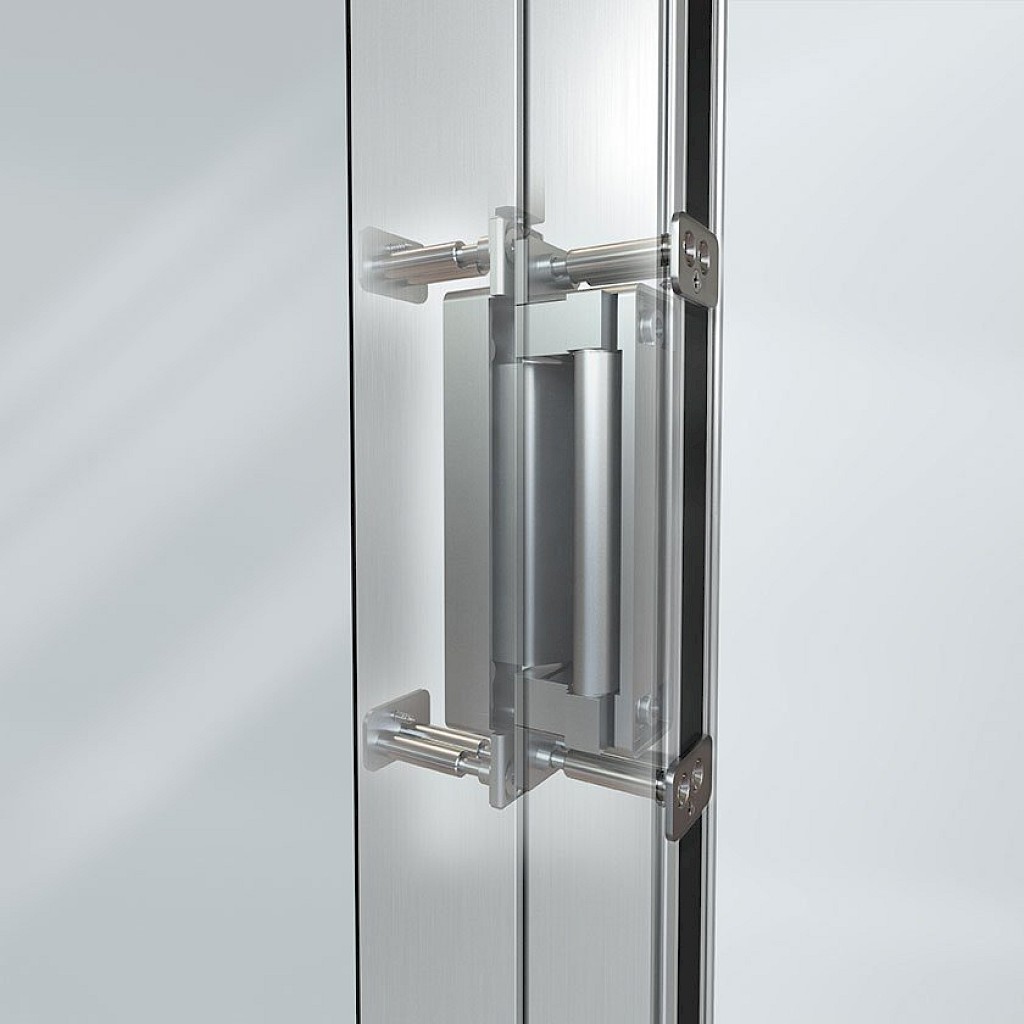

Visible and hidden hinges option Hidden hinges: Width 1250mm, height 2500mm, weight limit 150kg, opening at 110 degrees.

Visible hinges: Width 1400mm, height 3000mm, weight limit 200kg

Profiles have straight form

Charge groups in accordance with DIN EN

Thermal Insulation: Uf (>=) 1,6Wm2k in accordance with DIN EN ISO 10077-2

Soundproofing up to Rw= dB in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 2

Water permeability in accordance with DIN EN 12208 Class: 5A

Wind pressure resistance in accordance with DIN EN 12210 Class: 2

Mechanical strength in accordance with DIN EN 13115 Class:

Functionality over time in accordance with DIN EN 12400 Class:
