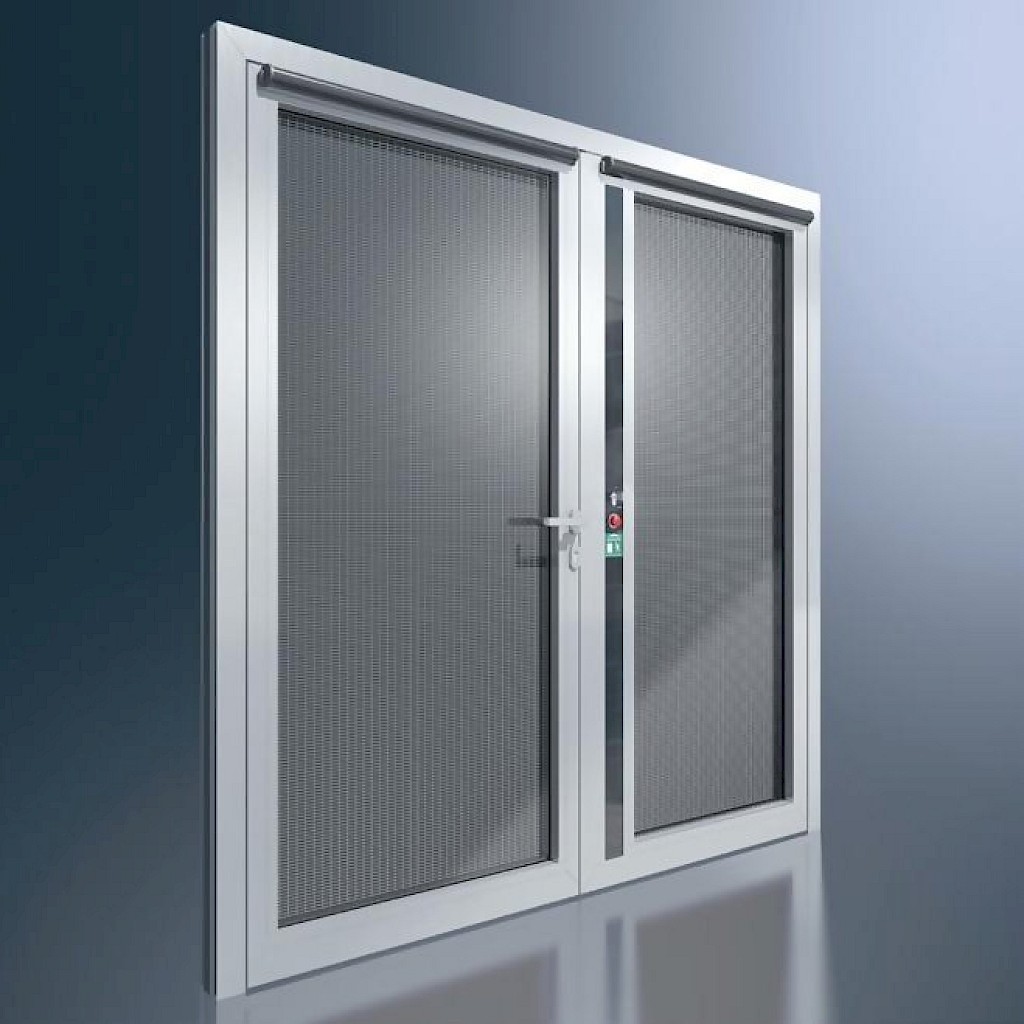

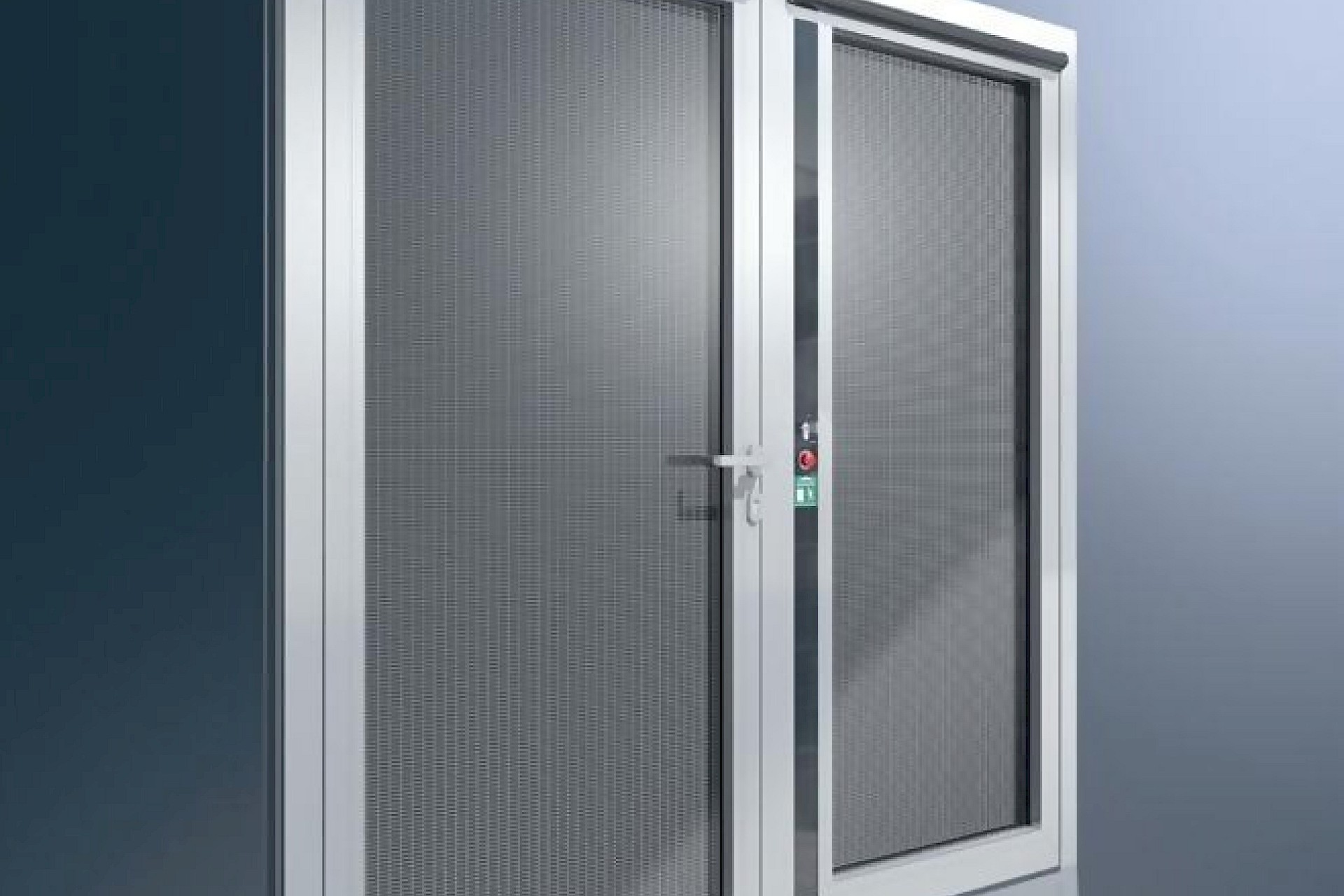

SCHÜCO ADS 90 SimplySmart

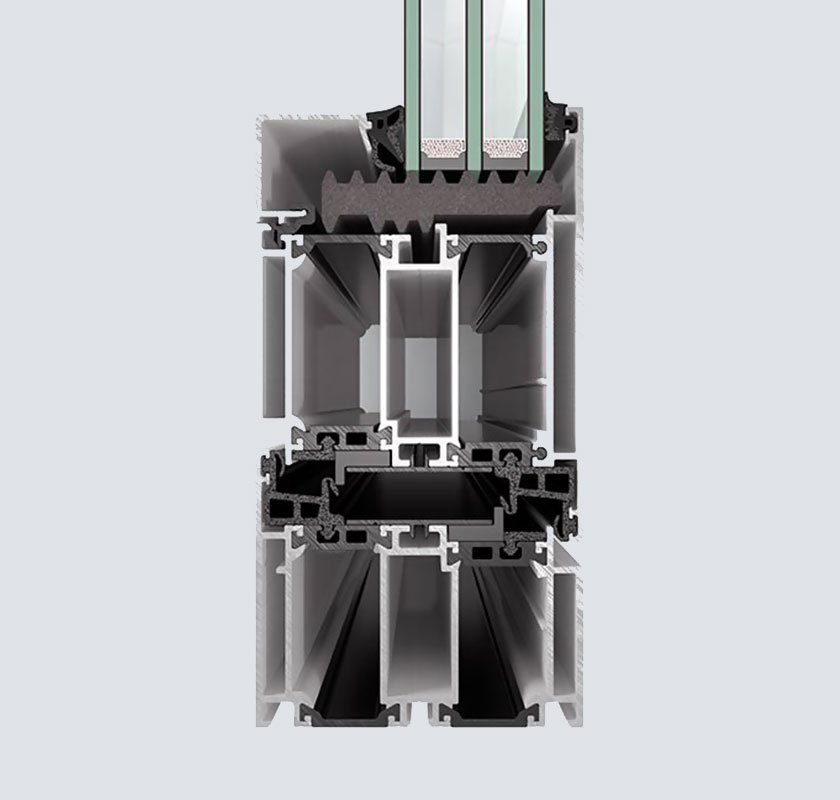

High insulation double divided thermal break exterior door system, with total face width of 170mm and zero depth difference (coplanar).

The unique security features are complemented by the top sealing performance and the strong burglar resistance, while the double divided thermal break ensures high thermal insulation performance.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 90 mm

Frame face width: 76 mm

Maximum glass thickness: 28mm - 63 mm

Sheet profile depth: 90 mm

Sheet face width: 117 mm

Triple glass pane option

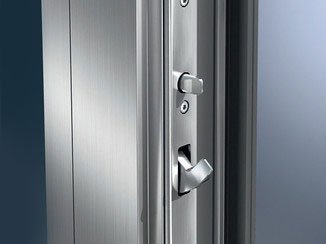

Mechanism: SCHÜCO

EPDM sealing gaskets

Sheet construction limit weight max 160kg, Sheet width 1250mm, Height 2500mm

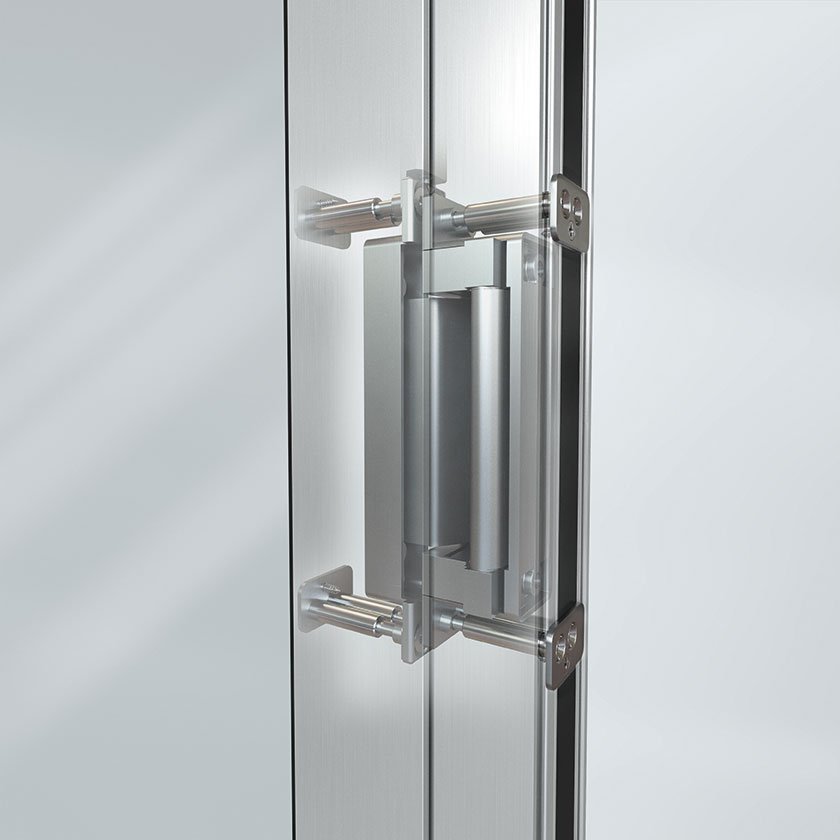

Visible hinges only option

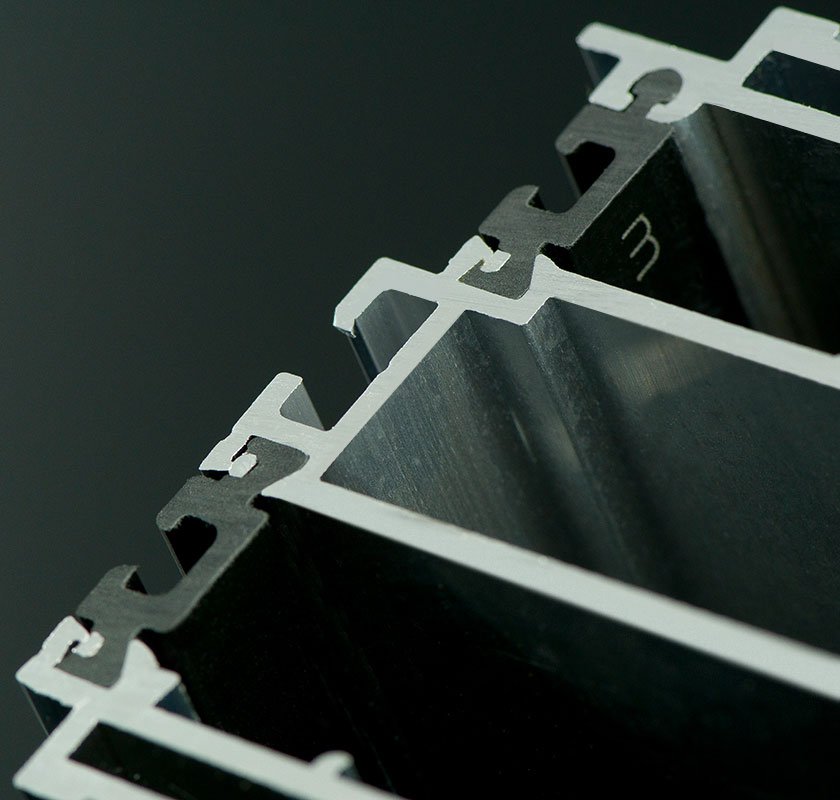

Profiles have straight form

Thermal Insulation: Uf  (>=) 1,3Wm2k in accordance with DIN EN ISO 10077-2

Soundproofing up to Rw= dB in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 5A

Wind pressure resistance in accordance with DIN EN 12210: Class: C2 / B2

Mechanical strength in accordance with DIN EN 13115 Class:

Functionality over time in accordance with DIN EN 12400 Class:
