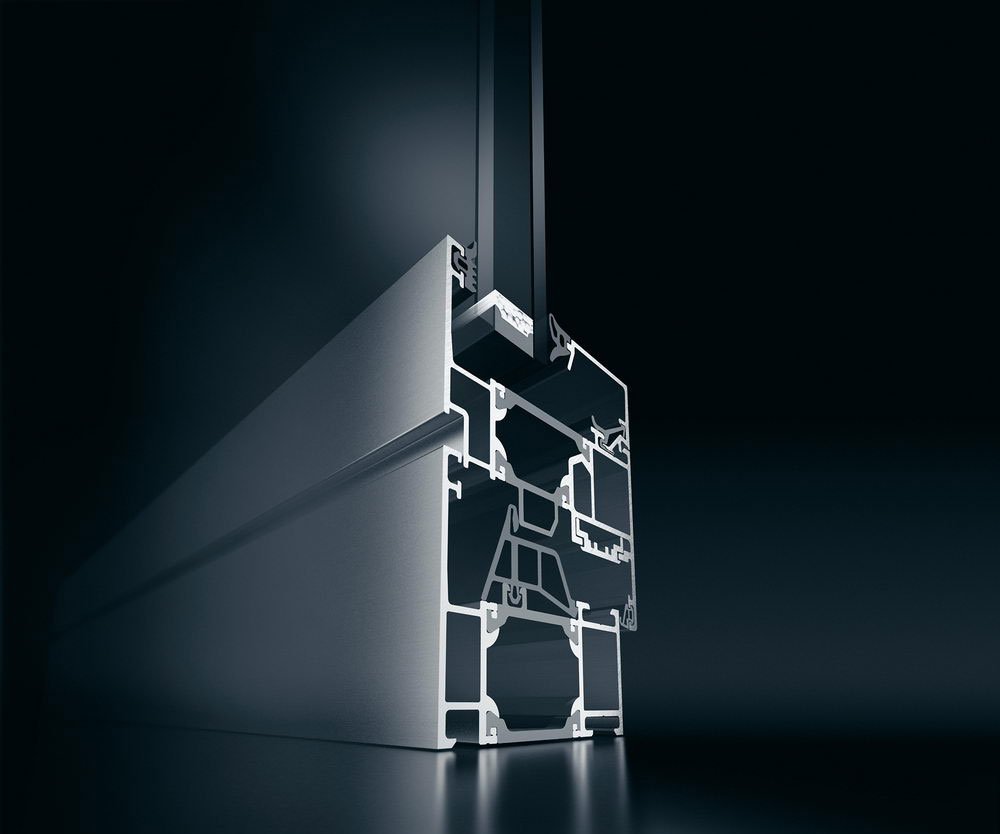

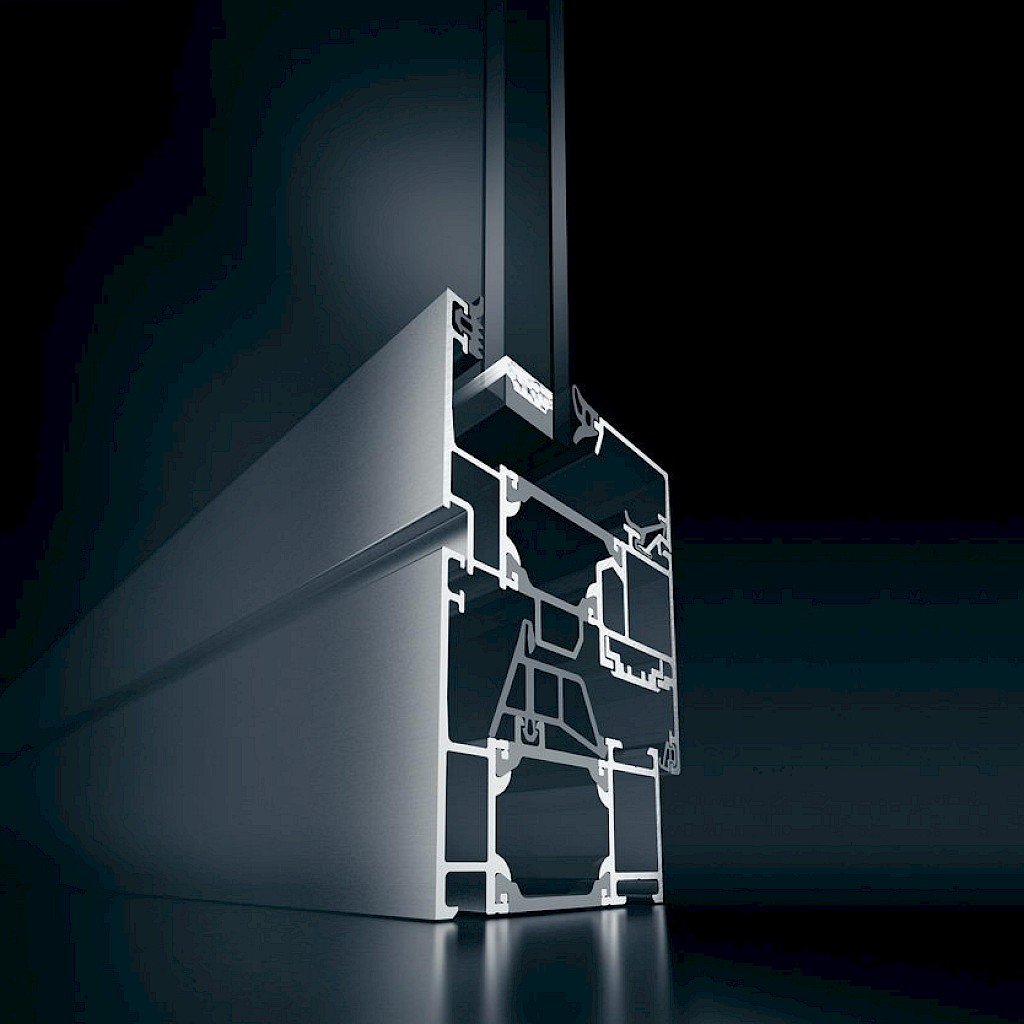

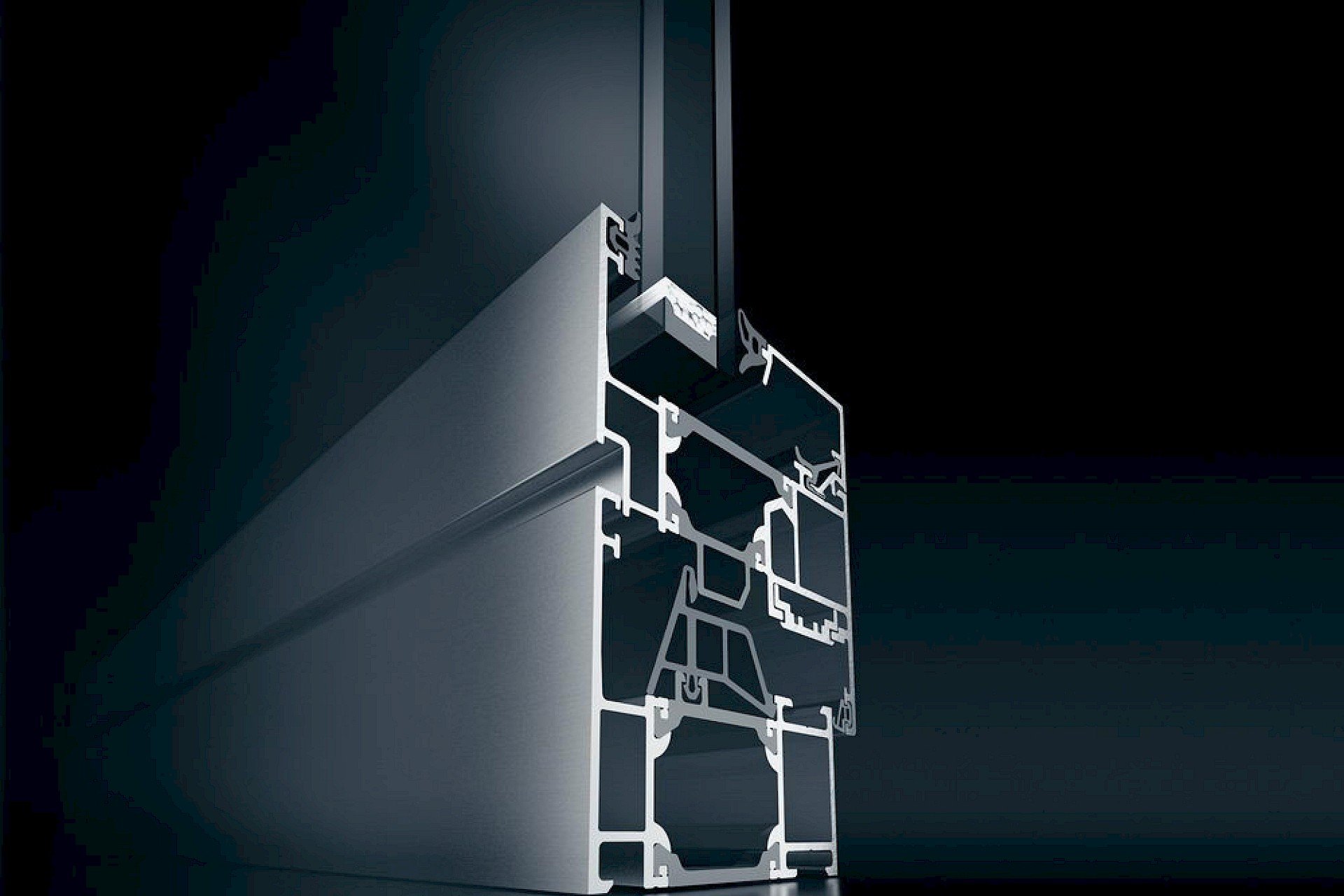

Schüco AWS 65

High insulation thermal break window system, with total face width of 107mm.
A strong aluminum construction with high wind pressure resistance, air and water permeability. The extended thermal insulation zone with the specially designed thermal break chambers ensure top energy-saving performance.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 65 mm

Frame face width: 75 mm

Maximum glass thickness: 5-45mm casement 15-55mm sheet mm

Sheet profile depth: 75 mm

Sheet face width: 78mm

Schüco TipTronic installation option.

Mechanism: SCHÜCO Simply Smart mechanism and basic security category

EPDM sealing gaskets

Profiles have straight form.

Compatible with Schüco ADS 65 doors series

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal Insulation: Uf  1,9-2,5 W/m2K in accordance with DIN EN ISO 10077-2

Soundproofing up to Rw=47dB in accordance with DIN EN ISO 140-3

Burglar resistance up to RC3 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 9A

Wind pressure resistance in accordance with DIN EN 12210: Class: C5 / B5

Mechanical strength in accordance with DIN EN 13115 Class: 4

Functionality over time in accordance with DIN EN 12400 Class: 3
