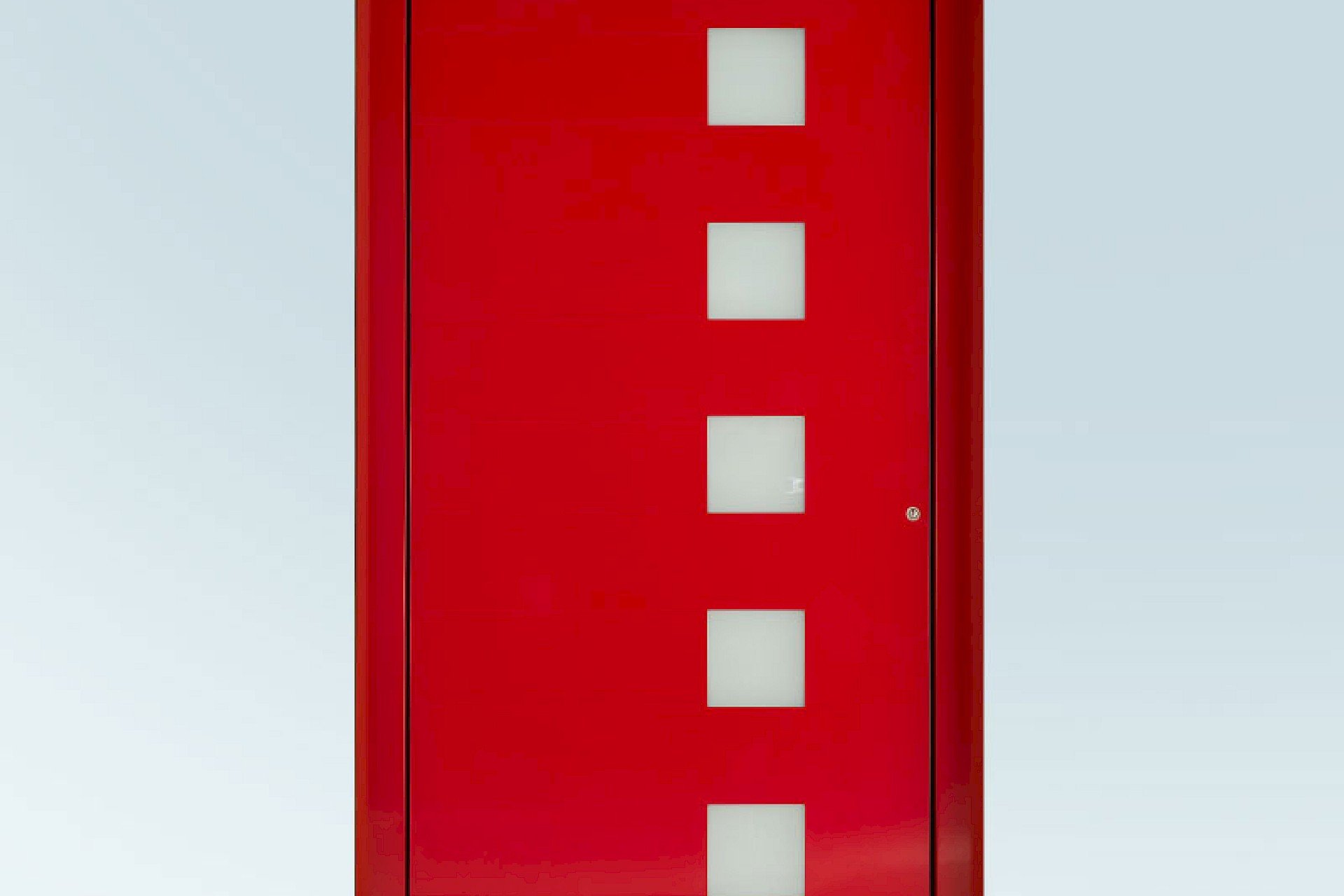

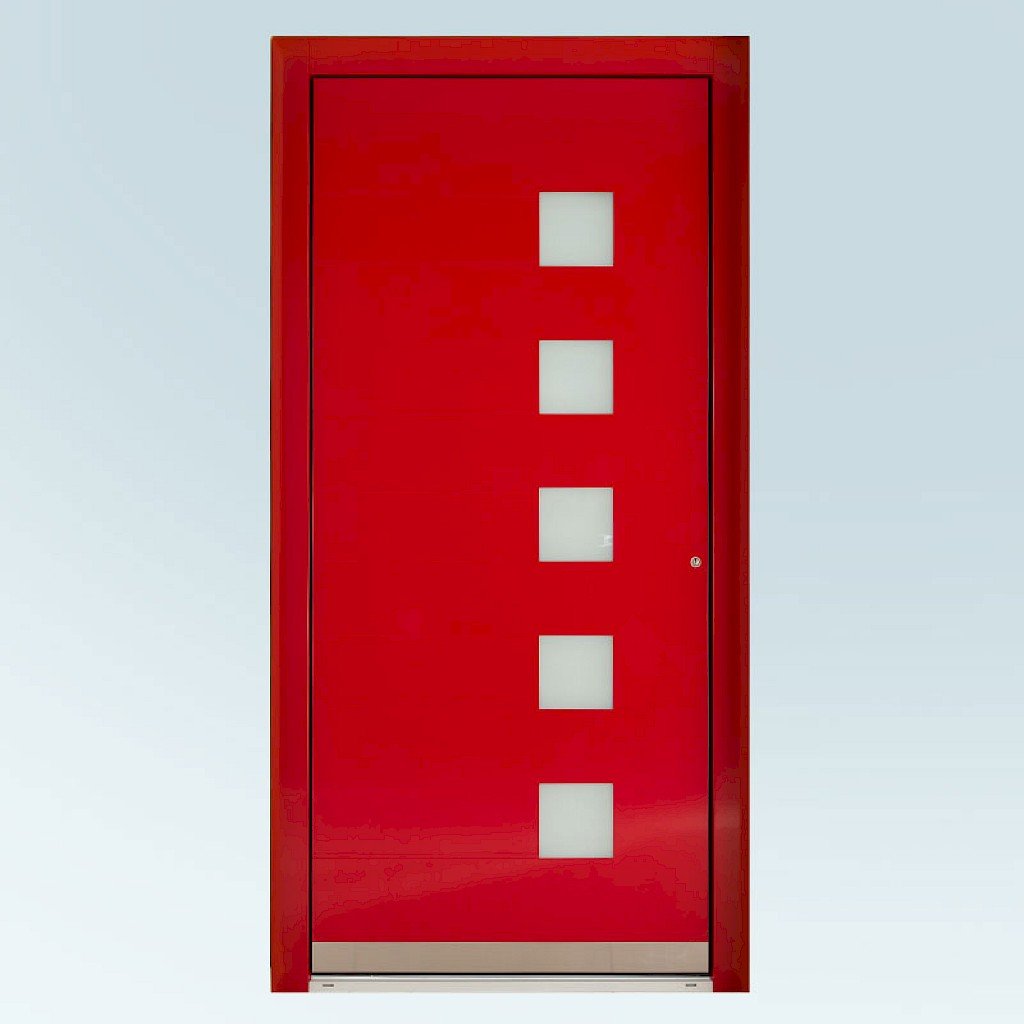

76AD AluClip Zero RESIDENTIAL DOOR

High insulation main entrance door system
PVC main entrance door system KÖMMERLING 76 AD AluClip Zero is one of the most integrated eco-friendly solutions, featuring excellent thermal-insulation, soundproofing and sealing properties, in combination with their great burglar-resistance performance and durability. The casement comes in various colours so that it can be perfectly integrated in the place where it is fitted, while the smart connection technology on the outside, featuring zero depth difference (coplanar) offers a great aesthetic result.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 86 mm

Frame face width: 88 mm

Maximum panel thickness: 36-86 mm

Sheet profile depth: 100 mm

Sheet face width: Coplanar

Sheet and casement reinforcement: thermogalvanised steel 2-3 mm thick

Mechanism: GU three-point automatic lock and external heavy duty hinges, max. resistance 160kg each

Integrated sealing gaskets on the casement and the sheet

Thermal plinth with removable fiberglass cover

100% recyclable with eco-friendly stabilisers

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal Insulation: Uf 1,2 W/ m2K

Burglar resistance up to in accordance with DIN V ENV 1627

Mechanical strength in accordance with DIN EN 13115 Class: 4
