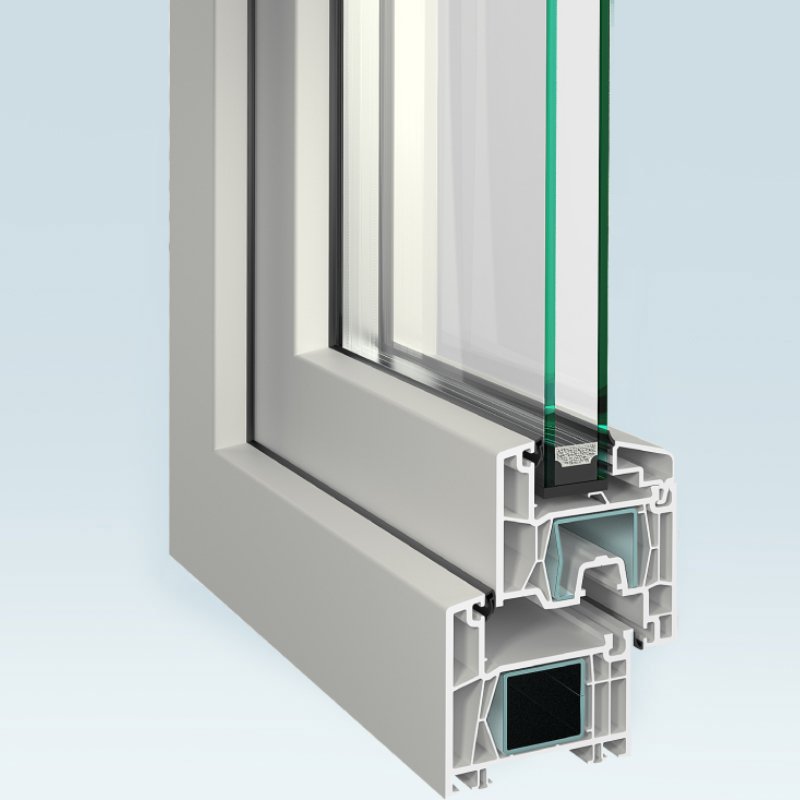

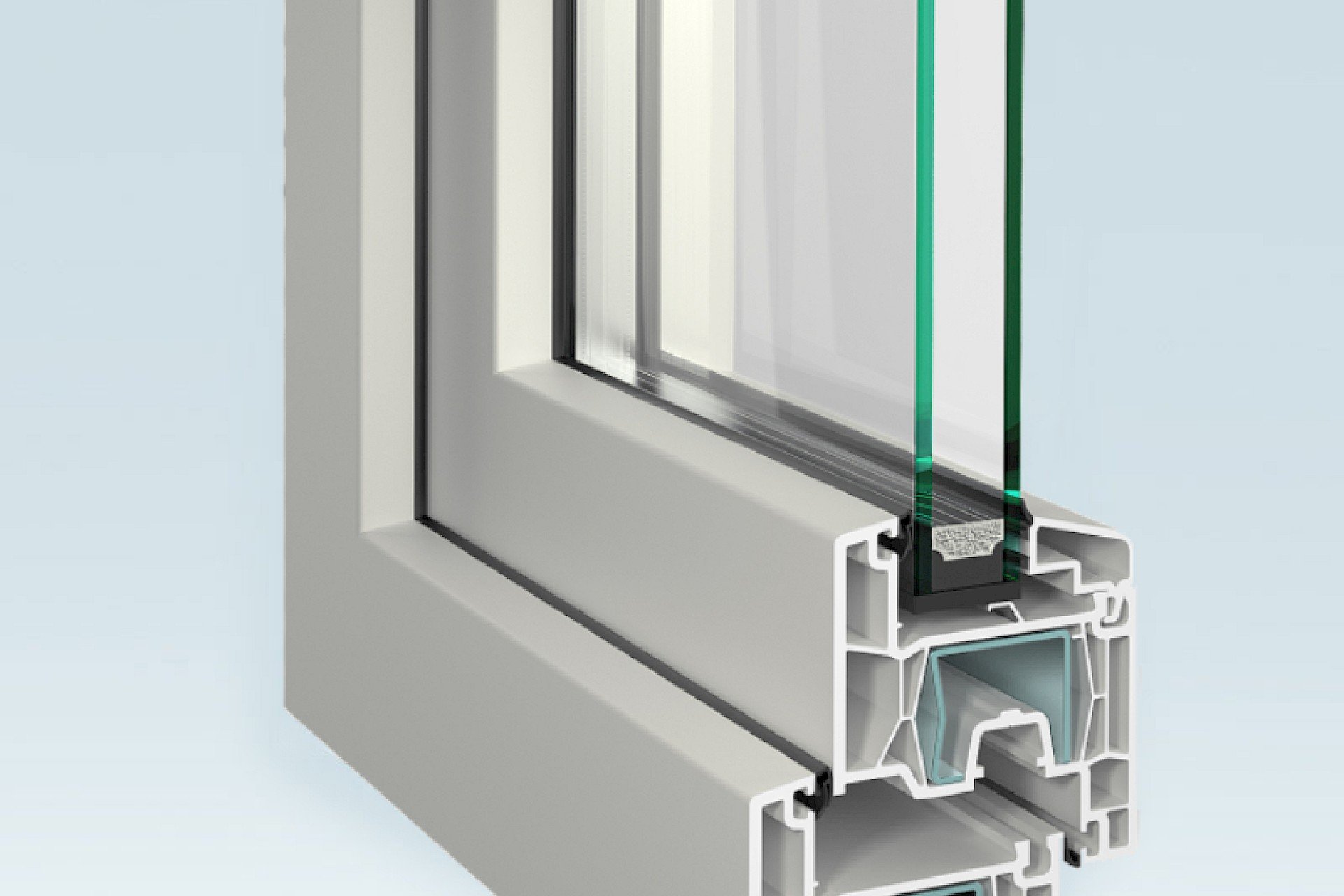

KÖMMERLING 70 ECONOMY

High Thermal Insulation Window Frame with a basic profile depth of 70 mm and a total face width of 115 mm.

The KÖMMERLING 70 Economy synthetic window frame is an eco-friendly yet affordable solution, without compromising on the quality and reliability of the final product. It uses raw materials with strict quality certification, as well as excellent economic specifications.

The frame is available in a variety of colors to harmoniously blend with its installation location.

Dimensions:

• Frame profile depth: 70 mm
• Frame face width: 66 mm
• Glazing thickness: 24 mm
• Leaf profile depth: 70 mm
• Leaf face width: 78 mm

Reinforcement:
Leaf and frame reinforcement with hot-dip galvanized steel of thickness 1.5-2 mm.

Mechanism:
Application of GU mechanism, type Unijet-Eurojet (150 kg leaf range) and basic security category.

Manufacturing Options:
Possibility to manufacture fixed, tilt-and-turn, and Pask 150kg.

Sealing Gaskets:
Integrated sealing gaskets.

Eco-friendly:
100% recyclable with environmentally friendly stabilizers.

Load Groups:
According to DIN EN 12207/12208/12210 standards.

Thermal Insulation: Uf 1.4 W/m²K
Sound Insulation: Up to Rw = 45 dB according to DIN EN ISO 140-3
Anti-burglary Protection: Up to RC1 according to DIN V ENV 1627
Air Permeability: According to DIN EN 12207

• Category: 4
  Water Tightness: According to DIN EN 12208
• Category: 9A
  Resistance to Wind Pressure: According to DIN EN 12210
• Category: C5/B5
  Mechanical Strength: According to DIN EN 13115
• Category: 4
