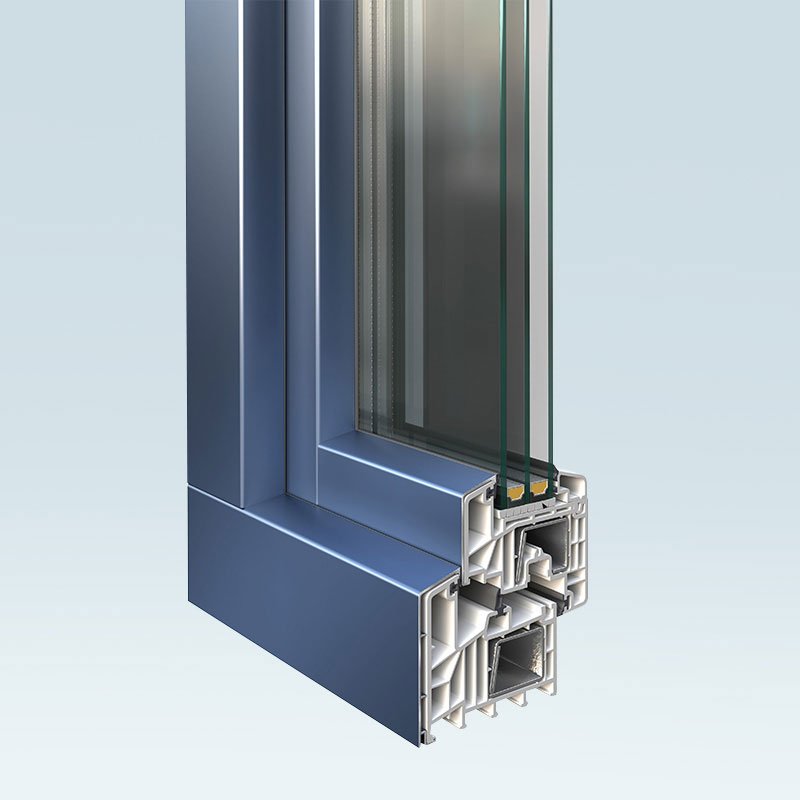

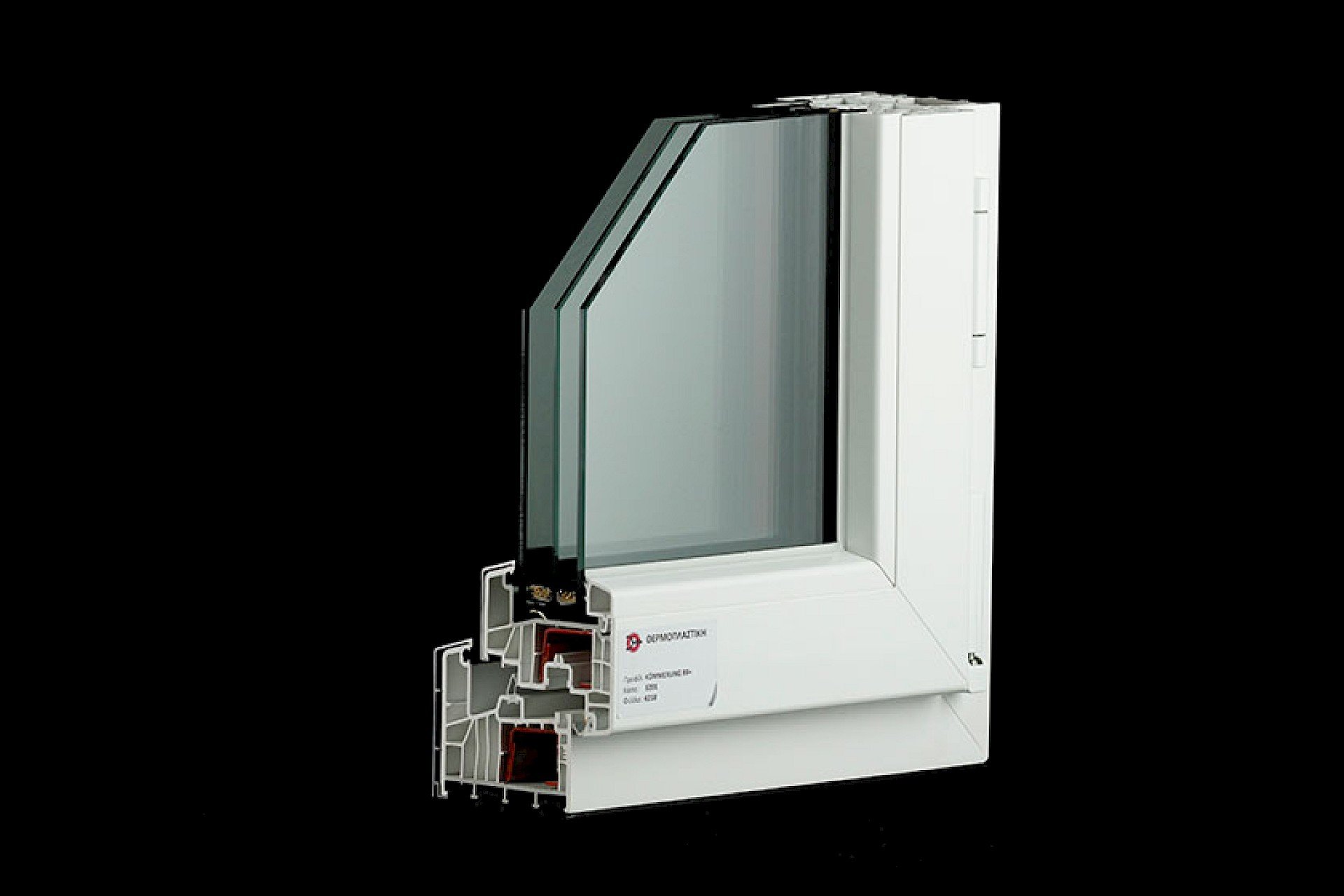

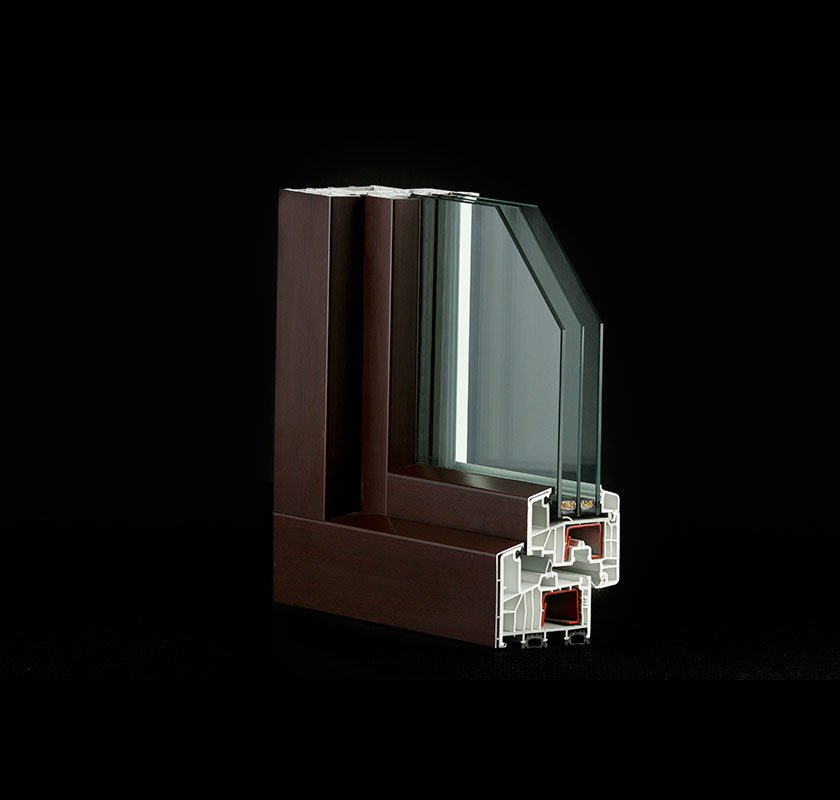

KÖMMERLING 88 AluClip

High insulation window system, with basic face width of 124mm.
PVC window system KÖMMERLING 88 AluClip is one of the most integrated eco-friendly solutions, featuring excellent thermal-insulation, soundproofing and sealing properties, in combination with their great burglar-resistance and performance and durability. Among their special functionality characteristics is the possibility of installing a triple glass panel, as well as the external clipped aluminum cladding; the casement comes in various colours so that it can be perfectly integrated in the place where it is fitted.

TECHNICAL CHARACTERISTICS

Dimensions:

Frame profile depth: 88 mm

Frame face width: 82 mm

Maximum glass thickness: 24-56 mm

Sheet profile depth: 88 mm

Sheet face width: 80 mm

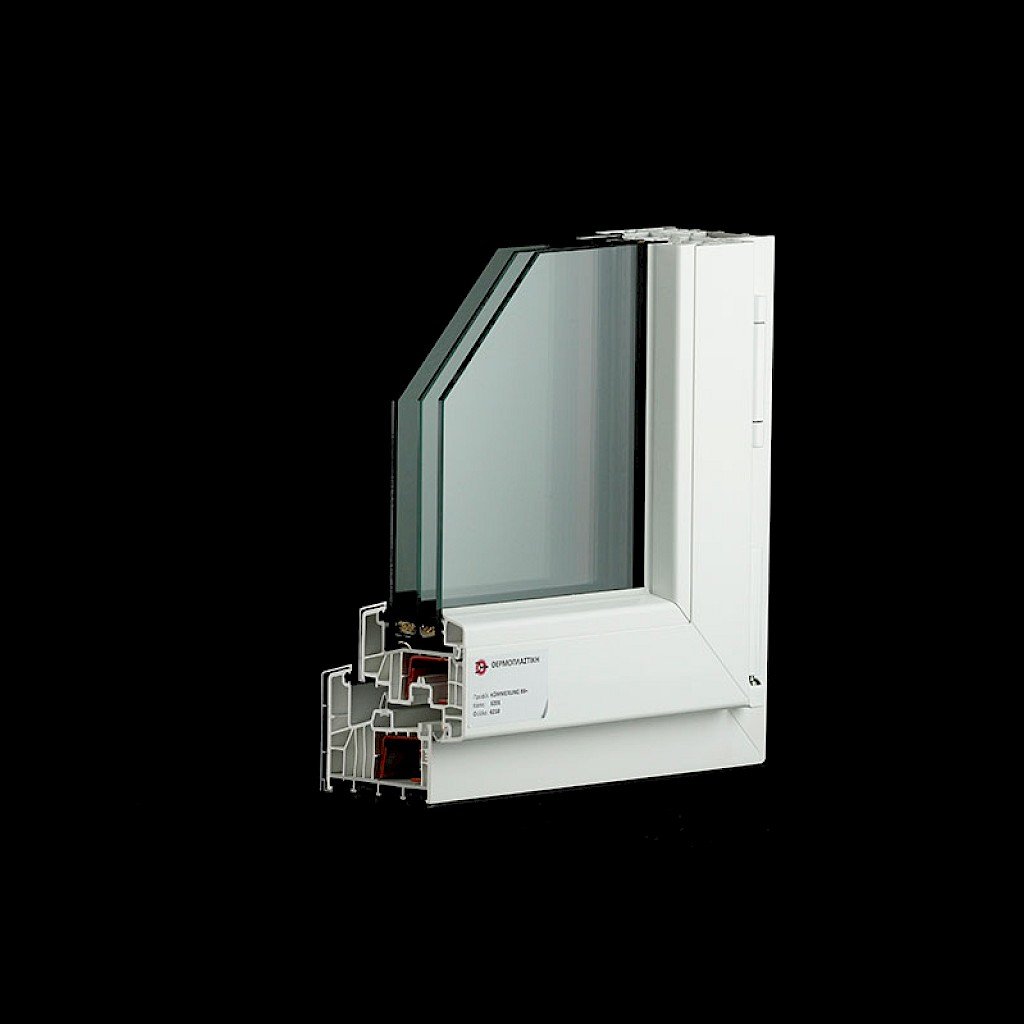

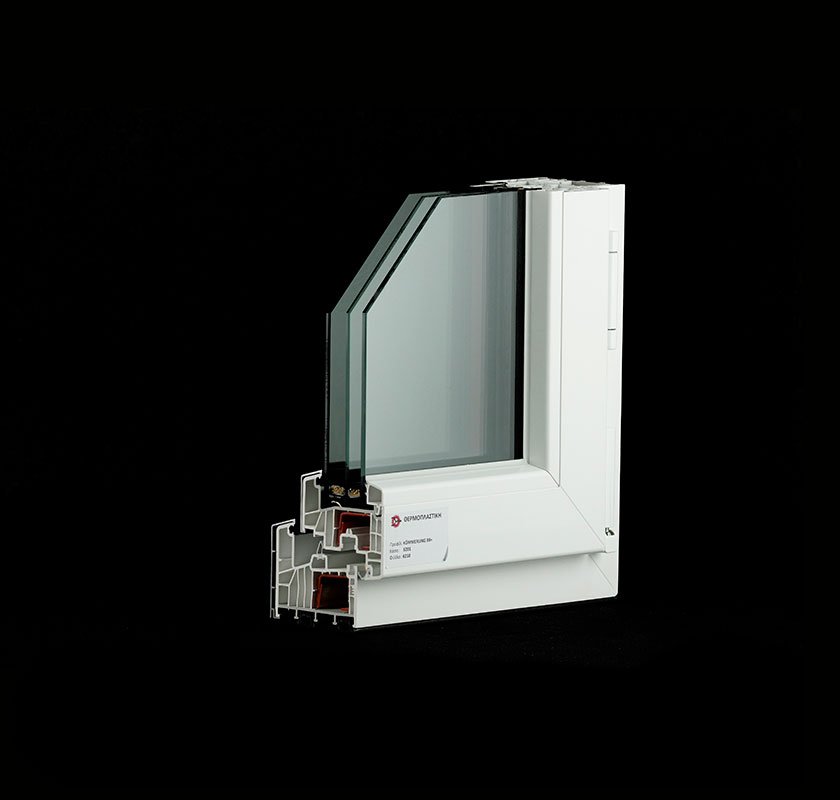

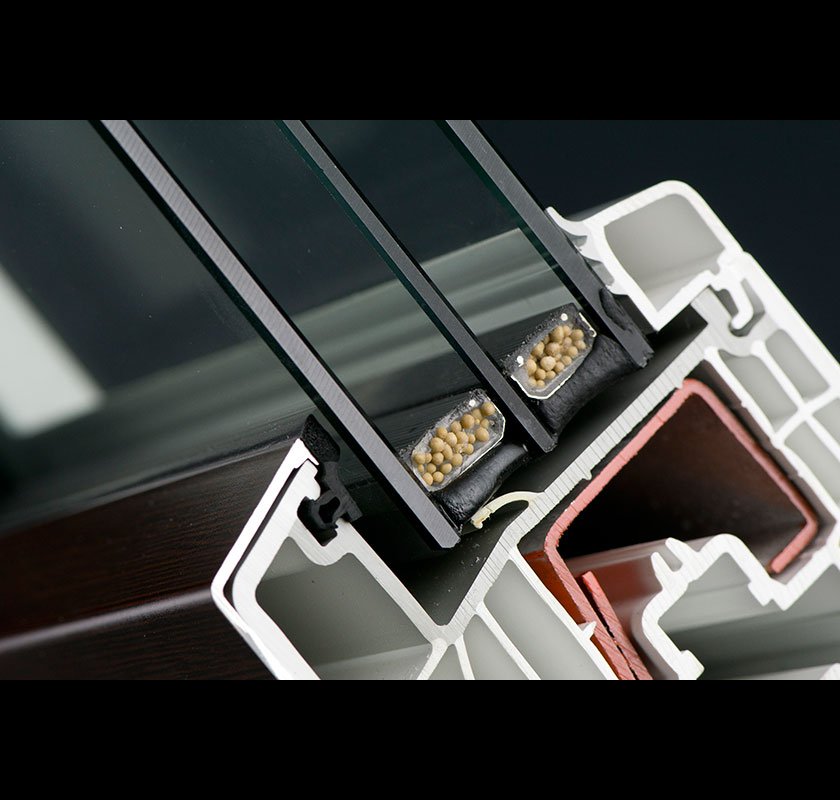

Triple glass pane option

Sheet and casement reinforcement: thermogalvanised steel 1.5-2mm thick

Aluminum 1.2mm thick clipped on the outside of the profile

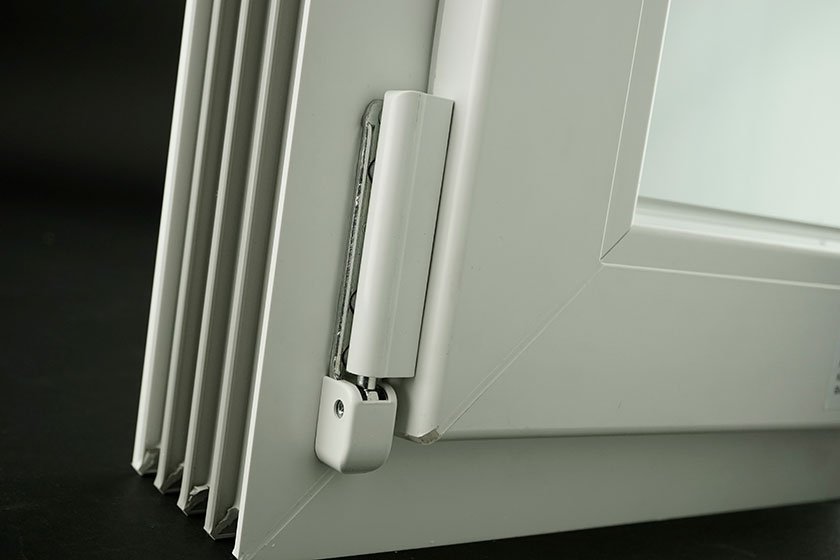

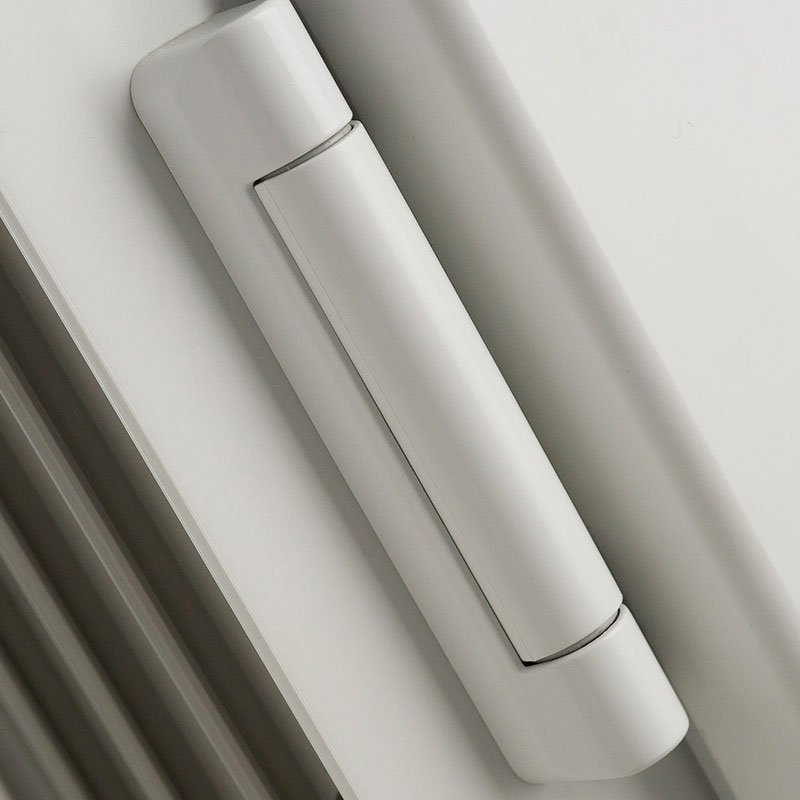

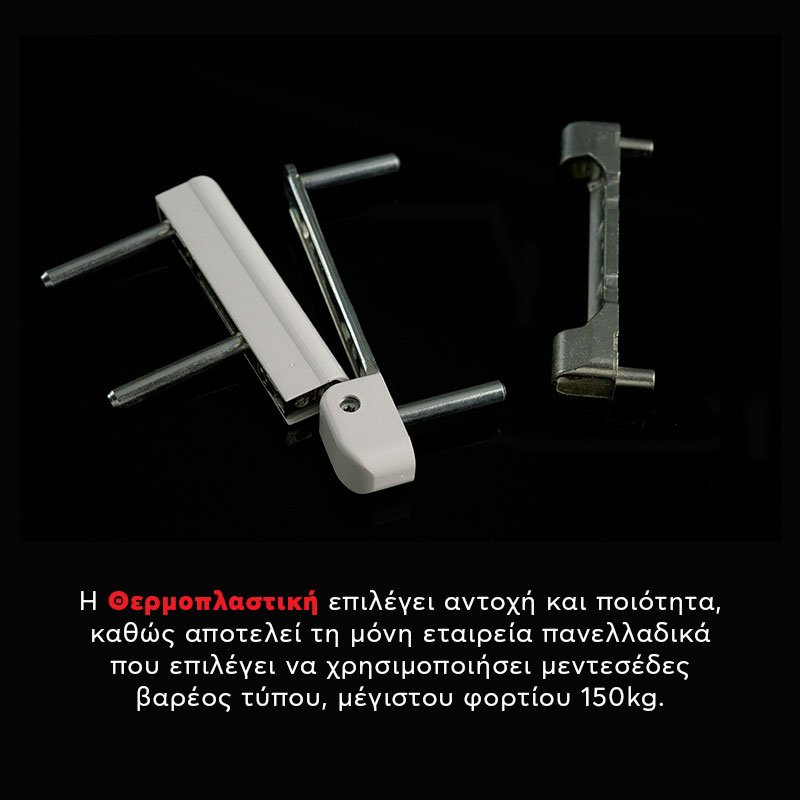

Mechanism: GU mechanism, Unijet Eurojet type (sheet max. weight 150kg) and basic security category

Mechanism surface protection: FerGUard (1000 hours), anti-corrosion protection

3 EPDM sealing gaskets

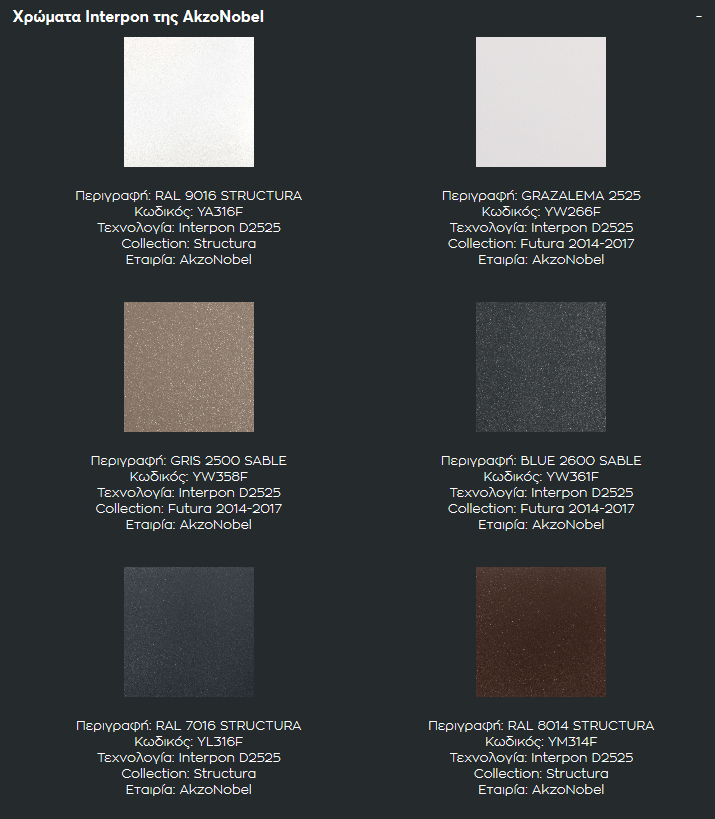

Choice of colour of the outside aluminum face among all possible aluminum shades

100% recyclable with eco-friendly stabilisers

Charge groups in accordance with DIN EN 12207/12208/12210

Thermal Insulation: Uf 0,95 W/ m2K

Soundproofing up to Rw=48 dB in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: Ε 1350

Wind pressure resistance in accordance with DIN EN 12210: Class: C5 / B5

Mechanical strength in accordance with DIN EN 13115 Class: 4

Functionality over time in accordance with DIN EN 12400 Class:3
